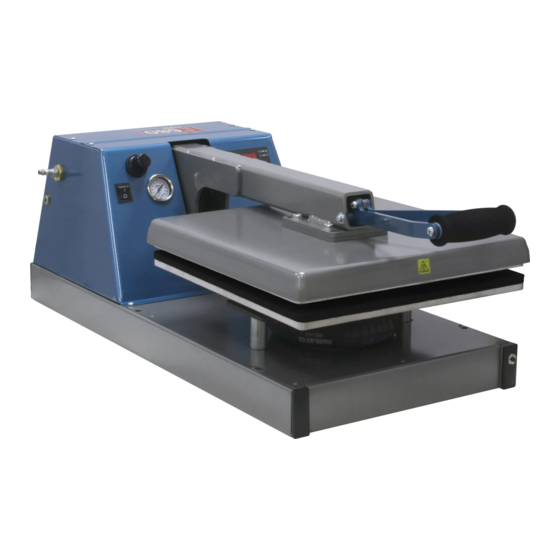

N-680 / N-880
15"x15" / 16"x20" Air Automatic Heat Transfer Machines
OWNER'S MANUAL
N-880
N-680
For Customer Service, Call 1-800-835-0606
or Visit www.hixcorp.com
CONTENTS
Receiving ......................................................................................................................... 2
Installation ....................................................................................................................... 3
Home screen ................................................................................................................... 4
Time & Temperature Adjustments.................................................................................... 5
Settings............................................................................................................................ 6
Presets .........................................................................................................................7-8
Cycle Count ..................................................................................................................... 9
Preferences ................................................................................................................... 10
Pressure ....................................................................................................................... 11
Auto Shut Off Feature .................................................................................................... 12
Transfer Application ..................................................................................................13-14
Maintenance .................................................................................................................. 14
Troubleshooting ........................................................................................................15-17
Warranty ........................................................................................................................ 20
BEFORE warranty repair you MUST get Prior Authorization
70146 RV H_090220
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hix N-680
Summary of Contents for Hix N-680
-
Page 1: Table Of Contents
N-680 / N-880 15”x15” / 16”x20” Air Automatic Heat Transfer Machines OWNER’S MANUAL N-880 N-680 For Customer Service, Call 1-800-835-0606 or Visit www.hixcorp.com CONTENTS Receiving ......................... 2 Installation ........................3 Home screen ........................4 Time & Temperature Adjustments..................5 Settings..........................6 Presets .........................7-8... -
Page 2: Receiving
RECEIVING SHIPPING OR RETURNS NOTE: Save all of your shipping/packing materials. DO NOT RISK COSTLY SHIPPING DAMAGE! SHIP ONLY IN ORIGINAL BOX. 1. Fasten machine to plywood shipping base with bolts provided. 2. Tie or tape handle securely to base. 3. -
Page 3: Installation
Combination air filter/water traps are available at any major hardware store or may be purchased directly from HIX (part #71145). Supply airline to be 3/8” minimum I.D. up to 25’ run from the compressor. Supply runs longer than 25’ from... -
Page 4: Home Screen
HOME SCREEN 1. Turn on the machine by pushing the on/off switch. Startup/Splash screen is displayed as the controller boots up. Note: The current program number and the software revision of the control- ler are displayed at startup. (The default settings are program number P 7 for °F, P 8 for °C and software revision RV 1.0) Startup/Splash Screen After boot up, the home screen is displayed showing the current heat platen... -
Page 5: Time & Temperature Adjustments
TIME & TEMP . ADJUSTMENTS ADJUST TEMPERATURE: TEMPERATURE ADJUSTMENT SCREEN UP ARROW TEMPERATURE READOUT/SETTING DOWN ARROW 1. Touch the temperature readout on the display. “UP” ▲ and “DOWN” ▼ arrows will appear on the right side of the display and the temperature value will start flashing and to indicate it is in set mode. -
Page 6: Settings
SETTINGS SETTINGS: 1. Press the “?” on the upper right corner of the display on the Home Menu Screen to access the settings menu. 2. Press the settings sub menu title to be adjusted. SETTINGS MENU SCREEN ADJUST SHUTDOWN TIMEOUT SETTING SET QUANTITY OF PRESETS DISPLAYED... -
Page 7: Presets
PRESETS PRESET QUANTITY Temperature presets can be stored in the memory for different trans- fer settings. By default two presets are displayed. This setting can be adjusted to display four presets. PRESET QUANTITY DISPLAYED PREFERENCE SCREEN TWO PRESETS DISPLAYED FOUR PRESETS TOGGLE BETWEEN DISPLAYED PRESETS... - Page 8 PRESETS STORING PRESETS: NOTE: The factory default settings for all presets is set to 200°F and 10 seconds. HOME MENU SCREEN PRESET LOCATIONS TEMPERATURE SETTING TIME SETTING 1. Set the desired temperature and/or cycle time using the temperature and time adjustment instructions in this document. 2.
-
Page 9: Cycle Count
CYCLE COUNT CYCLE COUNT The cycle count feature counts the number of cycles that the machine has undergone. A cycle is counted every time the countdown timer is activated by closing the press. NOTE: The cycle count will maintain the total count even if the power has been turned off. -
Page 10: Preferences
PREFERENCES TEMPERATURE MODE Temperature Mode controls which temperature scale is displayed on the controller home screen. F = Fahrenheit C = Celsius TEMPERATURE MODE PREFERENCE SCREEN UP ARROW TEMPERATURE SCALE PREFERENCE DOWN ARROW SAVE SETTINGS RETURN TO PREVIOUS SCREEN TO CHANGE THE SCALE: 1. -
Page 11: Pressure
PRESSURE 1. The air pressure control knob must be pulled out to allow for pressure adjustments then pushed in once final adjustments have been made. Set the air pressure by turning the regulator control knob and monitoring the air pressure gauge. PRESSURE CONTROL KNOB PRESSURE... -
Page 12: Auto Shut Off Feature
AUTO SHUT OFF FEATURE The 120 volt models have a slower heat recovery (i.e. 18-20 seconds @ 375°F). The 220 volt models are recommended for quicker cycle times (i.e. 10 seconds @ 375°F). 1. Set the temperature, time, & pressure to the desired settings as instructed. -
Page 13: Transfer Application
TRANSFER APPLICATION When you fail to make a successful transfer you can wonder, “Is it the machine’s fault, or the transfer, wrong settings or what”? FIRST, THE BASICS: 1. Be sure to set the heat transfer machine to the transfer manufacturer’s recommended Temperature, Time and Pressure settings. -
Page 14: Maintenance
TRANSFER APPLICATION RELAY BYPASS WARNING: Before making repairs, be sure ON/OFF switch is OFF and machine is unplugged! ATTENTION: Eteindre la machine avant de faire des réparations. 1. Remove the back cover of the machine. WARNING: To prevent posible electrical shock, unplug the machine before removing cover to service. -
Page 15: Troubleshooting
TROUBLESHOOTING WARNING: Before making repairs, be sure on/off switch is off and machine is unplugged! *Customer Service Tech Sheets are available for this step. Visit www.hixcorp.com to print or call 620-231-8568 and we will send you one. Parts ordering is available on-line. - Page 16 TROUBLESHOOTING WARNING: Before making repairs, be sure on/off switch is off and machine is unplugged! *Customer Service Tech Sheets are available for this step. Visit www.hixcorp.com to print or call 620-231-8568 and we will send you one. Parts ordering is available on-line.
- Page 17 TROUBLESHOOTING WARNING: Before making repairs, be sure on/off switch is off and machine is unplugged! *Customer Service Tech Sheets are available for this step. Visit www.hixcorp.com to print or call 620-231-8568 and we will send you one. Parts ordering is available on-line.
- Page 18 NOTES...
- Page 19 NOTES...
-
Page 20: Warranty
In the event of a defect, HIX, at its option, will repair, replace or substitute the defective item at no cost during this warranty period subject to the limitations of insurance and shipping costs stated below (excludes labor).
