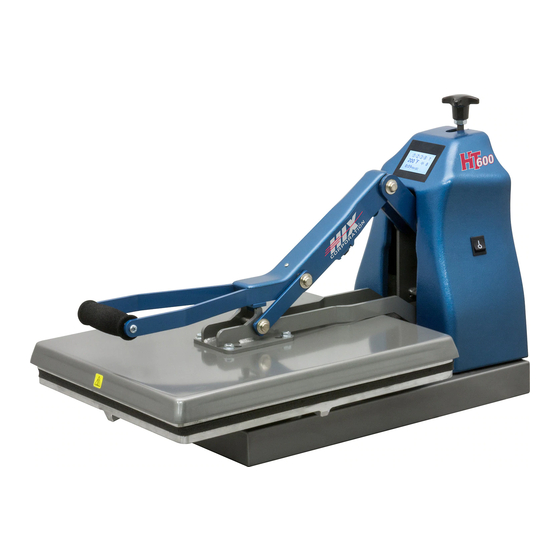

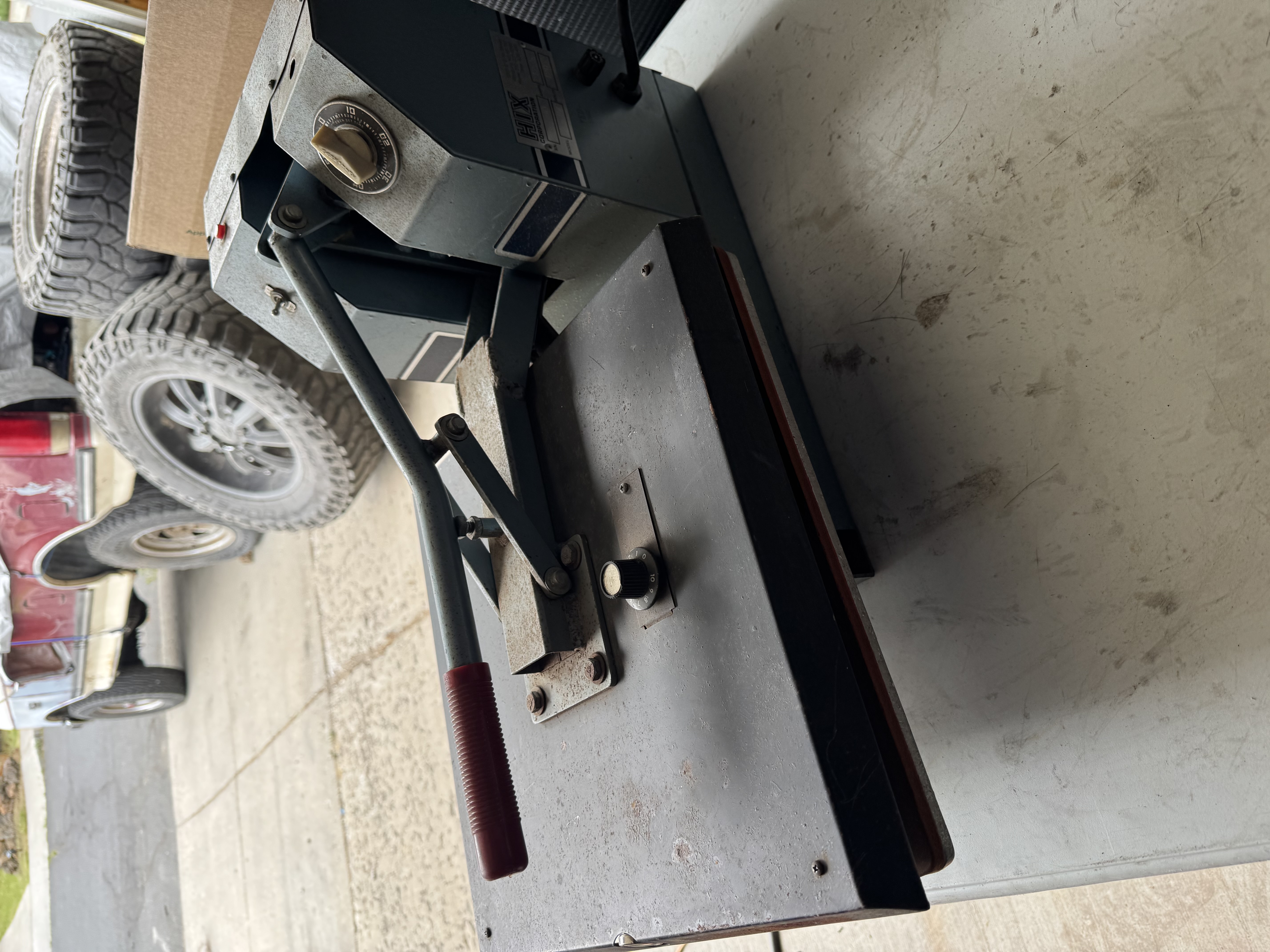

HT-400 & HT-600
Manual Clamshell with Pressure Readout
15"x15" & 16"x20" Heat Transfer Machines
OWNER'S MANUAL
OWNER'S MANUAL
HT-400
For Customer Service, Call 1-800-835-0606
CONTENTS
Receiving & Setup ............................................................................................2
Operation ..........................................................................................................3
Setting Temperature & Time .............................................................................4
Preference Settings ..........................................................................................5
Machine Presets ............................................................................................6-7
Cycle Count ......................................................................................................8
Temperature & Time Modes .............................................................................9
Platen Pressure ..............................................................................................10
Transfer Application ........................................................................................ 11
Troubleshooting .........................................................................................12-14
Repairs ...........................................................................................................15
Maintenance ...................................................................................................15
Warranty .........................................................................................................16
BEFORE warranty repair you MUST get Prior Authorization:
or Visit www.hixcorp.com
HT-600
70345 RV G_121316
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hix HT-400
Summary of Contents for Hix HT-400
-
Page 1: Table Of Contents
HT-400 & HT-600 Manual Clamshell with Pressure Readout 15”x15” & 16”x20” Heat Transfer Machines OWNER’S MANUAL OWNER’S MANUAL HT-600 HT-400 For Customer Service, Call 1-800-835-0606 or Visit www.hixcorp.com CONTENTS Receiving & Setup ....................2 Operation ......................3 Setting Temperature & Time ................4 Preference Settings ..................5... -
Page 2: Receiving & Setup
RECEIVING & SETUP SHIPPING OR RETURNS NOTE: Save all of your shipping/packing materials. DO NOT RISK COSTLY SHIPPING DAMAGE! SHIP ONLY IN ORIGINAL BOX. 1. Fasten machine to plywood shipping base with bolts provided. 2. Tie or tape handle securely to base. 3. -
Page 3: Operation
OPERATION 1. Turn on the machine by pushing the on/off switch. Startup/Splash screen is displayed as the controller boots up. Note: The current program number and the software revision of the control- ler are displayed at startup. (The default settings are program number P 1 for °F, P 2 for °C and software revision RV 1.0) Startup/Splash Screen After boot up, the home screen is displayed showing the current heat platen... -
Page 4: Setting Temperature & Time
SETTING TEMPERATURE & TIME ADJUST TEMPERATURE: TEMPERATURE ADJUSTMENT SCREEN UP ARROW TEMPERATURE READOUT/SETTING DOWN ARROW 1. Touch the temperature readout on the display. “UP” ▲ and “DOWN” ▼ arrows will appear on the right side of the display and the temperature value will start flashing and to indicate it is in set mode. -
Page 5: Preference Settings
PREFERENCE SETTINGS SETTINGS: 1. Press the “?” on the upper right corner of the display on the Home Menu Screen to access the settings menu. 2. Press the settings sub menu title to be adjusted. SETTINGS MENU SCREEN ADJUST SHUTDOWN TIMEOUT SETTING SET QUANTITY OF PRESETS DISPLAYED... -
Page 6: Machine Presets
MACHINE PRESETS PRESET QUANTITY Temperature presets can be stored in the memory for different trans- fer settings. By default two presets are displayed. This setting can be adjusted to display four presets. PRESET QUANTITY DISPLAYED PREFERENCE SCREEN TWO PRESETS DISPLAYED FOUR PRESETS TOGGLE BETWEEN DISPLAYED... -
Page 7: Machine Presets
MACHINE PRESETS STORING PRESETS: NOTE: The factory default settings for all presets is set to 200°F and 10 seconds. HOME MENU SCREEN PRESET LOCATIONS TEMPERATURE SETTING TIME SETTING 1. Set the desired temperature and/or cycle time using the temperature and time adjustment instructions in this document. 2. -
Page 8: Cycle Count
CYCLE COUNT CYCLE COUNT The cycle count feature counts the number of cycles that the machine has undergone. A cycle is counted every time the countdown timer is activated by closing the press. NOTE: The cycle count will maintain the total count even if the power has been turned off. -
Page 9: Temperature & Time Modes
TEMPERATURE & TIME MODES TEMPERATURE MODE Temperature Mode controls which temperature scale is displayed on the controller home screen. F = Fahrenheit C = Celsius TEMPERATURE MODE PREFERENCE SCREEN UP ARROW TEMPERATURE SCALE PREFERENCE DOWN ARROW SAVE SETTINGS RETURN TO PREVIOUS SCREEN TO CHANGE THE SCALE: 1. -
Page 10: Platen Pressure
PLATEN PRESSURE Pressure knob The pressure control knob, located on the top of the machine, should be set so that the heat head will lock down firmly. Pressure is reduced by turning knob (with machine open) counter-clockwise and increased by turning it clockwise. -
Page 11: Transfer Application
TRANSFER APPLICATION The 120 volt models have a slower heat recovery (i.e. 18-20 seconds @ 375°F). The 220 volt models are recommended for quicker cycle times (i.e. 10 seconds @ 375°F). 1. Set the temperature, time, & pressure to the desired settings as instructed. -
Page 12: Troubleshooting
TROUBLESHOOTING NOTE: Specific application instructions are enclosed with transfers. When you fail to make a successful transfer you can wonder, “Is it the machine’s fault, or the transfer, wrong settings or what”? FIRST, THE BASICS: 1. Be sure to set the heat transfer machine to the transfer manufacturer’s recommended Temperature, Time and Pressure settings. - Page 13 TROUBLESHOOTING *Customer Service Tech Sheets are available for this step. Visit www.hixcorp.com to print or call 620-231-8568 and we will send you one. Parts ordering is available on-line. Reset Circuit Breaker Check large tan wires crimped to back of heat casting. Repair if needed.
- Page 14 TROUBLESHOOTING Problem: Machine won’t release at the end of time. Q. Do you hear the solenoid click when the timer reaches zero? If no – with a volt meter check for voltage across the solenoid coil wires when the timer reaches zero.
-
Page 15: Repairs
REPAIRS RELAY BYPASS WARNING: Before making repairs, be sure ON/OFF switch is OFF and machine is unplugged! ATTENTION: Eteindre la machine avant de faire des réparations. 1. Remove the back cover of the machine. WARNING: To prevent posible electrical shock, unplug the machine before removing cover to service. -
Page 16: Warranty
Thermatrol and doughXpress products are covered under separate warranty. In the event of a defect, HIX, at its option, will repair, replace or substitute the defective item at no cost during this period subject to the limitations of insurance and shipping costs stated below.
