Nittan EVA-UB4 Quick Start Manual

STANDARD DETECTOR MOUNTING 4" BASE
■ Description

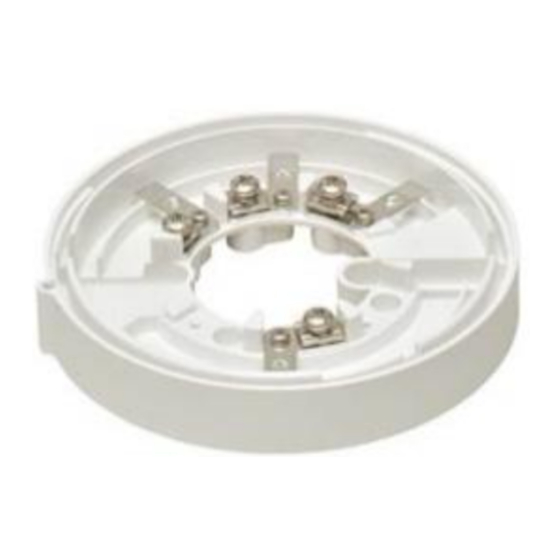

EVA-UB4 Standard Base is a 4 inch mounting base
for Nittan's UL listed detectors that can be mounted to
3-1/2 inch and 4 inch octagonal electrical boxes. The
base contains no electrical circuit so that the base is
used as a terminal block. The base is supplied with
4 terminals that are used depending on the detector
heads. The 12 – 22 AWG field wire can be connected
to the terminals. EVA-UB4 contains a locking screw
to avoid unauthorized removal of detectors.
Compatible Detector Models
Model
EVA-PY Addressable Photoelectric Smoke Detector
EVA-PYH Addressable Multisensory Detector
EVA-H2 Addressable Heat Detector
EVA-H2-H Addressable High-temp. Heat Detector
EVA-DPH Addressable Dual Optical / Heat Detector
EVCA-P Conventional Photoelectric Smoke Detector
STA-P-OM Conventional Photoelectric Smoke Detector
Nittan reserves the right to make changes at any time without notice in prices, colours, materials,
components, equipment, specifications and models and also to discontinue models.
Discription
NOT TO BE USED FOR INSTALLATION PURPOSES.
■ Features
• UL Listed Base
• Compatible to Nittan's UL Listed detectors
• Contains a locking screw for tamper protection
• 4 terminals to be used depending on detectors
• Mounts directly to 3-1/2" and 4" octagonal
electrical boxes
Dimensions
EVA-UB4


EVA-UB4-DAT-01 Rev.1
