Head Up Display
Model:S7
HUD short for Head Up Display.It displays driving datas on the front windshield such
as speed,rpm, fuel consumption,water temperature,voltage;avoiding drivers unsafety
because of watching the instrument while driving.Drivers can read the driving
information, and can always keep the best state on the way with HUD.
HUD Main Functions&Features:
1. Combine OBD &GPS HUD system into one,free switch
2. 20 kinds of functional data
3. Screen size 5.8 Inch HD display
4. Auto power on/off
5. Automatic and manual brightness adjustment modes

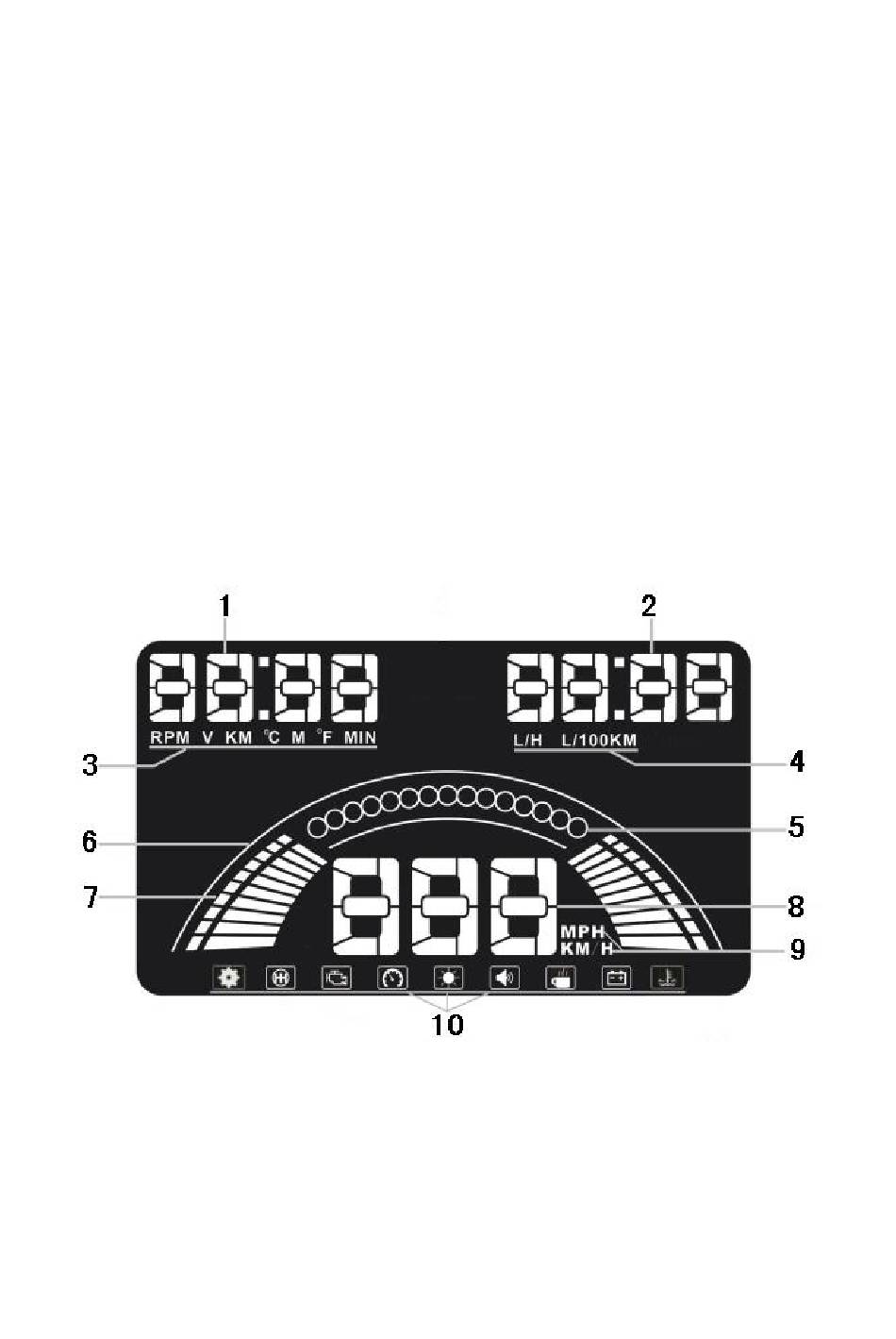

OBDII Main Functions:
1.RPM,voltage,driving distance,water temperature,driving time
2.Fuel consumption,water temperature,voltage
3.RPM unit,voltage unit(V),driving distance unit(KM/Mile),water temperature
unit(℃/℉）
4.Fuel consumption unit(L/H, L/100km)
5.All small circle lights turn off when driving speed exceed 50km/H
6.Decorative light(will be turn on all the time when driving)
Advertisement
Related Manuals for Eling S7
Summary of Contents for Eling S7
- Page 1 Head Up Display Model:S7 HUD short for Head Up Display.It displays driving datas on the front windshield such as speed,rpm, fuel consumption,water temperature,voltage;avoiding drivers unsafety because of watching the instrument while driving.Drivers can read the driving information, and can always keep the best state on the way with HUD.
- Page 2 7.All light circle turns off when the RPM exceed 4000r 8.Vehicle speed 9.Speed unit(KM/H,MPH) 10.Display icon (from left to right): menu setting,shift reminder,engine fault code,over speed icon,light sensor,buzzer mark,fatigue driving,low voltage alarm,high water temperature alarm GPS Main Functions: 1. Driving distance&time,voltage 2.
- Page 3 1. USB cable port 2.Power Switch: three way a. up for power on and OBD mode, b.middle for switch off, c.down for power on and GPS mode. 3.Setting button:Three way wave button, short or long press a.Up button = up motion b.Ok button = inward button press c.Down button = down motion OBD functions for wave button：...
- Page 4 GPS functions for wave button： 1.Short pull up:switch between driving distance&time(pls note, after enter into the setting menu, short pull up is to increase the parameter). 2.Short pull down:switch between clock,driving distance&time(pls note, after enter into the setting menu, short pull down is to decrease the parameter). 3.Vertical Short press:switch between speed unit Mile or KM(pls note: after enter into the setting menu, vertical short press is to increase the menu).
- Page 5 OBD Menu Setting Menu According Adjustment Explanation Default Setting State Parameter Range Value When the Speed is not the same as dashboard: Speed 50-150 (OBD) Up or down the wave button to adjust When RPM is not the same as dashboard: 50-150 (OBD)
- Page 6 0 is automatic mode: when speed below 80km/h, hud show all information ;and (OBD) when speed over 80km/h,hud is in high speed mode,1 is Display mode display all information, 2 is high speed mode(only display speed and fuel consumption) 3 is use voltage to control power on/off(for gas - electric hybrid vehicles) 0 is automatic adjustment,...
- Page 7 The default car emission is 20(means 2.0L) Emission 10-100 ,if there is no display fuel (OBD) setting consumption,pls adjust the default value to 0 HUD will automatically turns on when voltage above Reference 110-150 13.2V,and hud automatically start voltage (OBD) turns off when voltage below 13.2V Adjust the parameter to 1,and...
- Page 8 0 is single driving in KM, Mileage unit (GPS) 2 is single driving in Mile Function 0 is clock,1 is driving mileage, switch 2 is driving time (GPS) 0-23 Default for GMT+8 adjustment (GPS) HUD will automatically turns on when voltage above Voltage 110-150 13.2V,and hud automatically...
- Page 9 Pakistan, Turkmenistan, Sri Lanka, India GMT+5 Bangladesh, Kazakhstan, Bhutan, Nepal GMT+6 Vietnam, Laos, Cambodia, Thailand, Indonesia GMT+7 (The default GMT) China, Malaysia, Singapore, Philippines, Hong GMT+8 Kong, Taiwan, Macau Japan,Korea GMT+9 Australia, Guam GMT+10 Solomon Islands, Vanuatu GMT+11 New Zealand, Fiji GMT+12 Azores GMT-1...
- Page 10 Take off the protection film (marked 2) of the reflection film. If the film cannot display the whole information, please adjust the non-slip mat to move the position HUD Specifications: Working Temperature: -40c—+80c Atmospheric pressure: 86-106KPa Relative humidity: 10%-95% Environmental noise: <=60dB(A) 》=30dB(A) Alarm sound level:...
- Page 11 down the wave button to parameter 1,vertical press in 5 seconds to save. 5. (OBD mode) Inaccurate Speed When HUD is power on,vertical press the wave button 5 seconds to enter into the menu options, here menu option shows 0,parameter shows 107,up or down the wave button to increase or decrease the value according to the difference until it shows correct one.After adjustment, vertical press in 5 seconds to save it.
- Page 12 HUD default start voltage is 13.2v, if car voltage less than this value,HUD can not start, check if the car engine is turned on. If you already start the engine,please vertical press in the wave button 5 seconds to enter into menu setting,short press 7 times to menu 7, up or down the button to adjust the parameter value from 132 to 128.
