Head Up Display User Manual
HUD short for Head Up Display.It displays driving datas on the front windshield such
as speed,water temperature,voltage,single driving distance on the car front window
glass;avoiding drivers unsafety because of watching the instrument while
driving.Drivers can read the driving information instantly , and can always keep the
best state on the way with HUD.

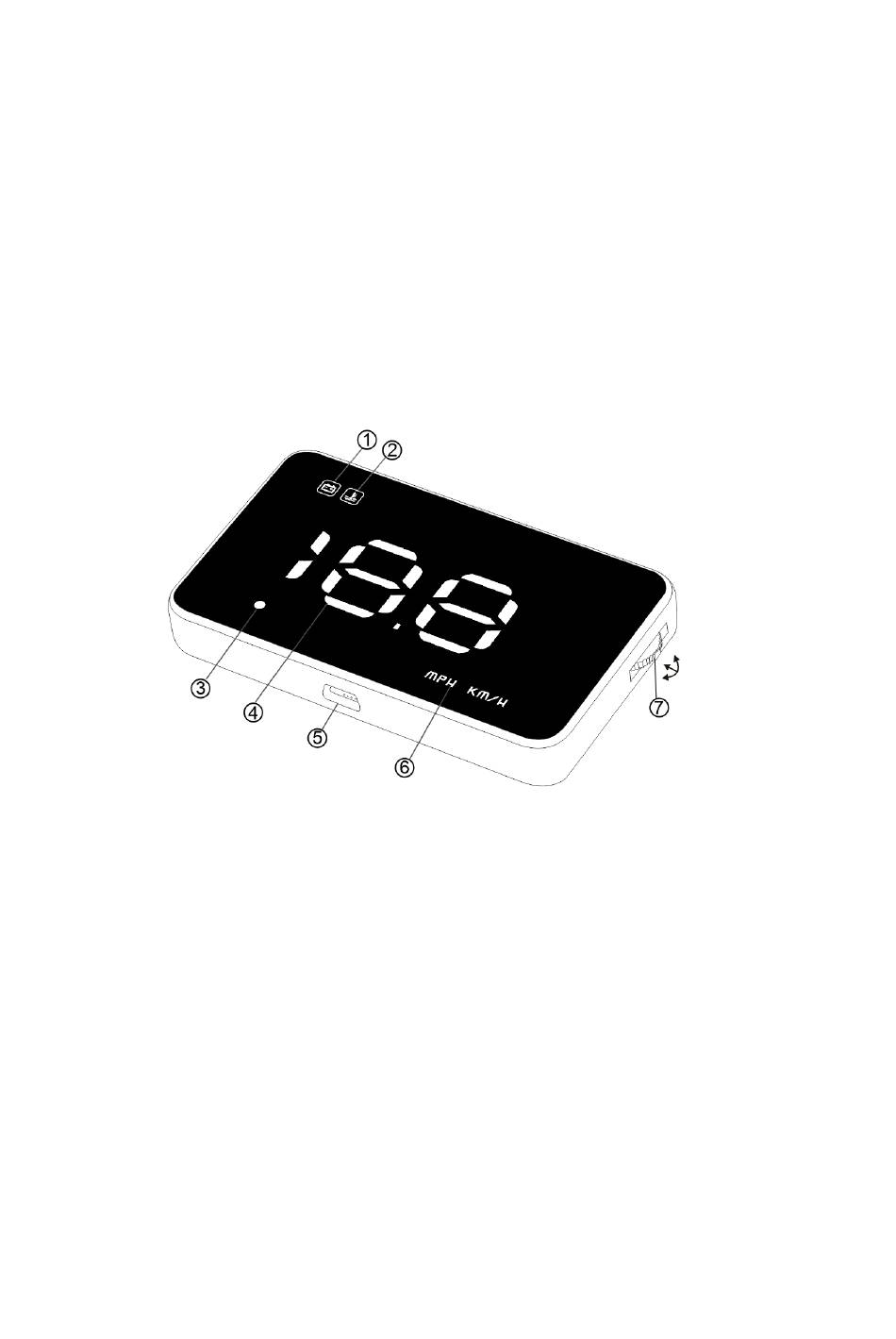

HUD Display functions
1 Voltage icon
2 Water temperature icon
3 Light sensor: Automatically adjust the brightness according to the environment
4 Speed/Water temperature/Voltage/Show mileage after power off(functions can be
switched by short pressing in the setting button)
5 OBD port
6 Speed unit in MPH, KM/H
7 Setting button:Three ways of setting button:
a.Up button = up motion(short pull up or long pull up)
b.Ok button = inward button press(short press or long press)
c.Down button = down motion(short pull down or long pull down)
Model: A1000
Advertisement
Table of Contents
Related Manuals for Eling A1000
Summary of Contents for Eling A1000
- Page 1 Head Up Display User Manual Model: A1000 HUD short for Head Up Display.It displays driving datas on the front windshield such as speed,water temperature,voltage,single driving distance on the car front window glass;avoiding drivers unsafety because of watching the instrument while driving.Drivers can read the driving information instantly , and can always keep the...
- Page 2 1.Short pull up:(1)change the over speed alarm value(2)when enter into setting menu,to increase the default value 2.short pull down:(1)switch the multi functions of voltage,water temperature,speed (2)decrease the default value after enter into setting menu 3.Short press in:confirm ong press in the button vertically:(1)to enter into the menu setting mode(2)to keep the new datas after finishing the menu setting.
- Page 3 dashboard,then make it higher High water 90-130 Please adjust it according to the actual temperature car conditions Brightness 0 for automatic brightness adjustment, 1 adjustment is darkest, 2-7 is becoming more bright (the lights will be brighter according to the numbers,7 is brightest) Shift reminder 8-70 Default value is 5000r,can be changed.
- Page 4 Methods of pasting the film: 1.Spray some water on the place that the film will be pasted on,and then use a dry cloth to clean it; 2. Take off the back side（marked 1) of reflection film,then paste it to the window glass.
- Page 5 108,up or down the setting button to increase or decrease the value according to the difference until it shows correct one.After adjustment, vertical press in 5 seconds to save it. 5.the car are with ASS(Automatic start/stop system) If the car are with ASS,after the car brakes,the engine stops running and HUD will auto turns off,the user can change the menu 3 value from 1 to 2,After adjustment, vertical press in 5 seconds to save it.
