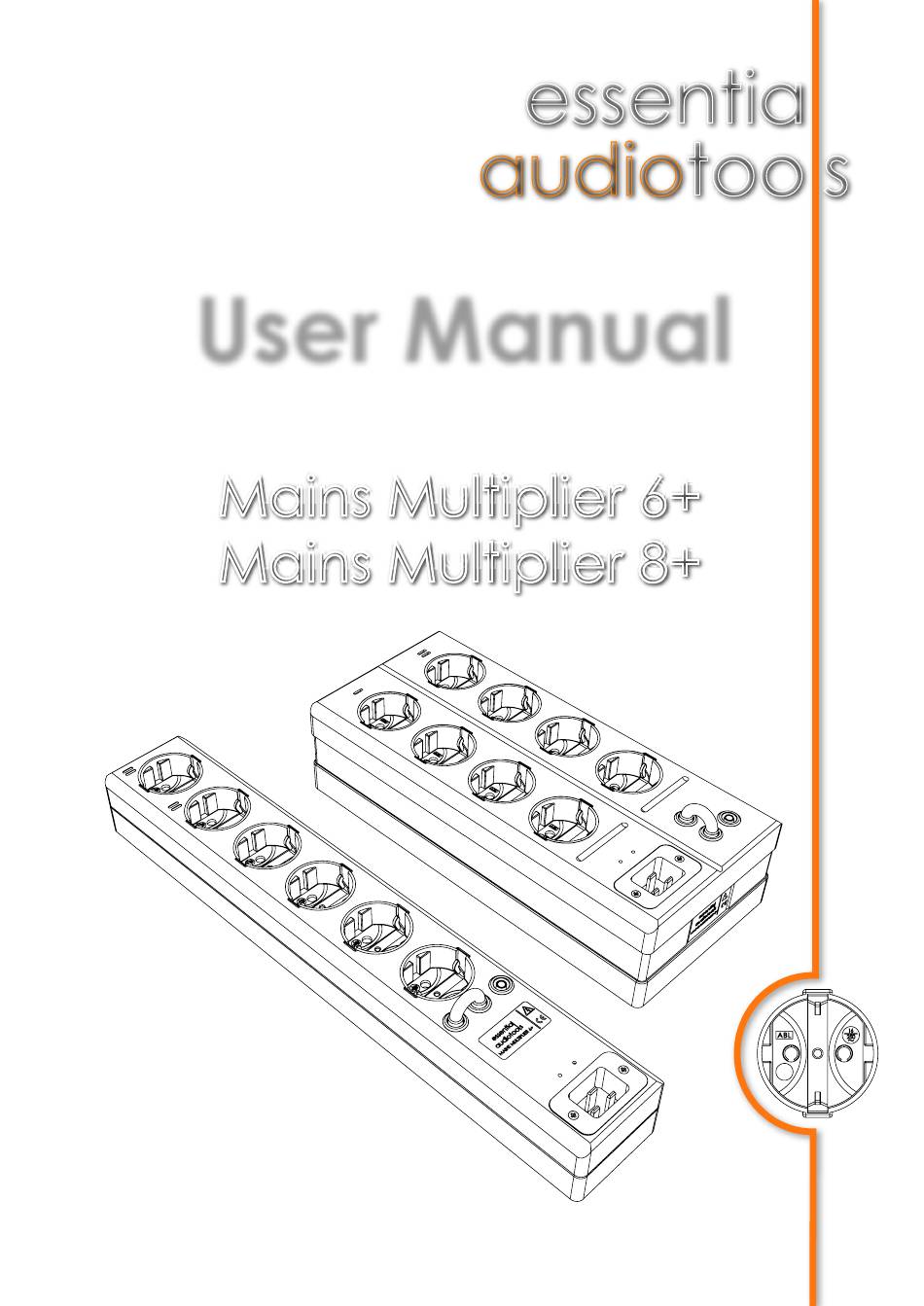

- Page 1 essentia audiotoo s User Manual Rev 2.1 July 2021 Mains Multiplier 6+ Mains Multiplier 6+ Mains Multiplier 8+ Mains Multiplier 8+...
-
Page 2: Table Of Contents
Contents Introduction …………………………………..…………………… page 3 Description …………………………………..…………………… page 4 Safety precautions …………………………………..…………………… page 5 Connection s …………………………………..…………………… page 6 Specifications …………………………………..…………………… page 10 Problem solving …………………………………..…………………… page 11 Warranty …………………………………..…………………… page 11... -
Page 3: Introduction
The Essential Audio Tools’ cables, distribution boxes, filters and phase indicator make any audio set perform better. Essential Audio Tools invests lots of time and effort to make products as good as they can be. They are all made with use of precision CNC machining. Beautifully shaped, well-designed and manufactured from top-quality material by experts. -
Page 4: Description
Description The Mains Multiplier is not a regular multiple socket but more a work of art made on a CNC machine that shapes this form out of one piece synthetic material. Yes… synthetic! The results speak for themselves, optical as well as electrical. The type of outputs is chosen because of the high contact pressure, which is obvious when putting in or pulling out an electric plug. -
Page 5: Safety Precautions
essentia Safety precautions audiotoo s For your protection and safe operation of the unit, please read the following: Avoid water and other liquids To avoid risk of fire and electrical shock: do not expose this device to moisture. Use indoors and in dry locations only. -
Page 6: Connections
Connections Integrating your new Mains Multiplier 6+ / Mains Multiplier 8+ is as easy as can be. Just connect the Mains Multiplier to your wall socket. Don’t bother about the phase of the wall socket, you don’t have to check it. The Mains Multiplier 6+ (figure 1) and the Mains Multiplier 8+ (figure 2) both have an integrated phase indicator which shows the following indications: false phase... - Page 7 essentia audiotoo s Connecting the Mains Multiplier 6+ The Mains Multiplier 6+ has two outputs with each a Common Mode filter and four direct outputs, see figure 3. The direct outputs can supply 10 Amps maximum current each, the filtered outputs can supply 6 Amps maximum current each. The total current of all six outputs may not exceed 16 Amps.
- Page 8 Connecting the Mains Multiplier 8+ The Mains Multiplier 8+ has four outputs with each a Common Mode filter and four direct outputs, see figure 4. The direct outputs can supply 10 Amps maximum current each, the filtered outputs can supply 6 Amps maximum current each. The total current of all eight outputs may not exceed 16 Amps.
- Page 9 essentia audiotoo s Connecting Earth Your Mains Multiplier 6+ or 8+ must be connected to ground, however if your system is not properly earthed the Mains Multiplier will still function. Even without earth the Mains Multiplier itself will make a connection between all earth contacts of your equipment. This will prevent that small currents will run through your interlinks due to differences between earth potentials at your equipment’s chassis.
-
Page 10: Specifications
Specifications Rated voltage 220-240V~ @ 50/60 Hz Protecting Phase-Neutral, Phase-Earth and Neutral-Earth Maximum voltage 250V~ Maximum peak-voltage 2500V Maximum peak-current 4500A Maximum peak-energy 3 x 65 Joule Response time < 25 nanoseconds Mains Multiplier 6+ Maximum continuous current per filtered socket Maximum continuous current per unfiltered socket Maximum continuous total current all sockets together Maximum continuous total power all sockets together... -
Page 11: Problem Solving
Warranty Essential Audio Tools products have a warranty period of two years from date of purchase. This warranty covers manufacturing defects and failures within products specifications. When warranty is claimed the original bill with the buyer’s name and date of purchase should be presented. - Page 12 MORE INFORMATION: WWW.ESSENTIALAUDIOTOOLS.COM Essential Audio Tools: CopyRight by Square Audio BV, The Netherlands, info@essentialaudiotools.com...
