MOVEMENT SENSOR 140°(FLUSH MOUNTING)
Toyama Movement sensors are intelligent lighting control energy saving sensitivity detectors. Movement
sensors use Passive infrared (PIR) sensor to detect the human movement and make corresponding triggering of
loads, say lights. Usage of SMD components not only ensures reliability but also makes the product highly
compact for its functionality and features. Wide operating voltage range of the Movement sensors makes it
operational across countries from North America having 127V supply to European countries with 230V supply
without any field setting. The device is incorporated with the adjustable inbuilt timer to switch OFF the load when
there is no human movement. The device is also incorporated with Lux detector.
Applications: Movement sensors can be installed in
SPECIFICATIONS:
Supply voltage
Supply frequency
Rated load
Detection angle
Detection distance
Installation height
Detection motion speed
Time – delay
Lux adjustment level
Power consumption
Operating Temperature
Standard color of Movement sensor
T 76 254
Technical Manual
•
Office /Hotel corridors.
•
Stair cases/Passage.
•
Stores, Classrooms.
•
Common fresh rooms.
: 220 - 250V/AC
: 50-60 Hz
: 600W
140 °
:
: 10 feet on either side with normal walking at < 24 deg. C
: 4-5 feet optimum
: 0.6 - 1.5m/s
: Minimum: 30 sec / Maximum: 450 sec
: 10 – 400 lux
: 0.45W (Static 0.1W)
: 0 - 55°C
: White
Page - 1

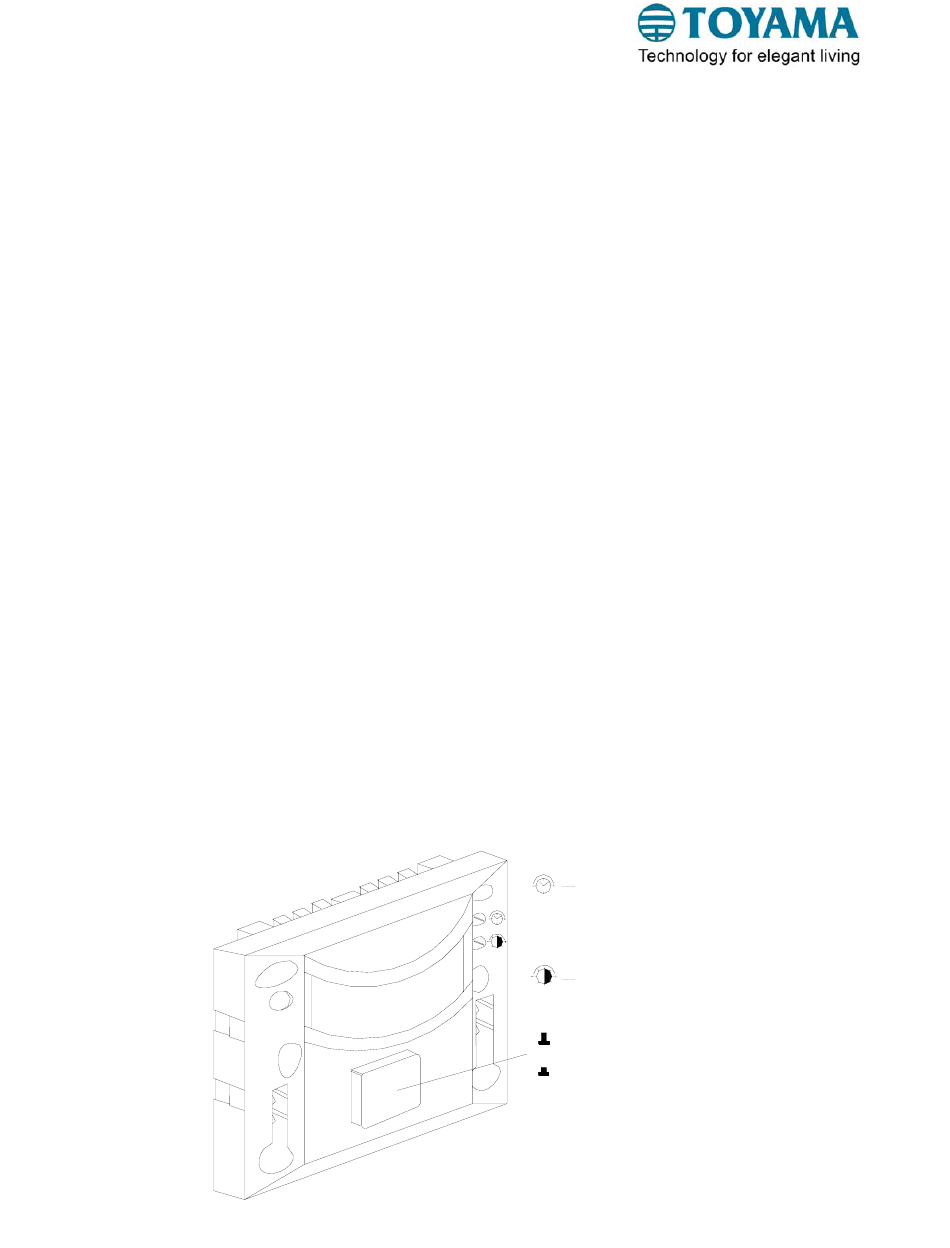

Adjust delay time from
30 seconds min(-) to 7
minutes max(+)
Adjust day / night or
night mode
OFF
ON
