MOVEMENT SENSOR 180°(WALL MOUNTING)
Toyama Movement sensors are intelligent lighting control energy saving sensitivity detectors. Movement
sensors use Passive infrared (PIR) sensor to detect the human movement and make corresponding triggering of
loads, say lights. Usage of SMD components not only ensures reliability but also makes the product highly
compact for its functionality and features. Wide operating voltage range of the Movement sensors makes it
Operational across countries from North America having 127V supply to European countries with 230V supply
without any field setting. The device is incorporated with the adjustable inbuilt timer to switch OFF the load when
there is no human movement. The device is also incorporated with Lux detector.
Applications: Movement sensors can be installed in
SPECIFICATIONS:
Supply voltage
Supply frequency
Rated load
Detection angle
Detection distance
Installation height
Detection motion speed
Time – delay
Lux adjustment level
Power consumption
Operating Temperature
Standard color of Movement sensor
T 76 252
Technical Manual
•
Office /Hotel corridors.
•
Stair cases/Passage.
•
Stores, Classrooms.
•
Common fresh rooms.
:
110 - 250V/AC
:
50-60 Hz
:
1200W
180 °
:
:
20 feet
:
8-9 feet optimum
:
0.6 - 1.5m/s
:
Minimum: 30 sec / Maximum: 450 sec
:
10 – 400 lux
:
0.45W (Static 0.1W)
:
0 - 55°C
:
White
Page - 1

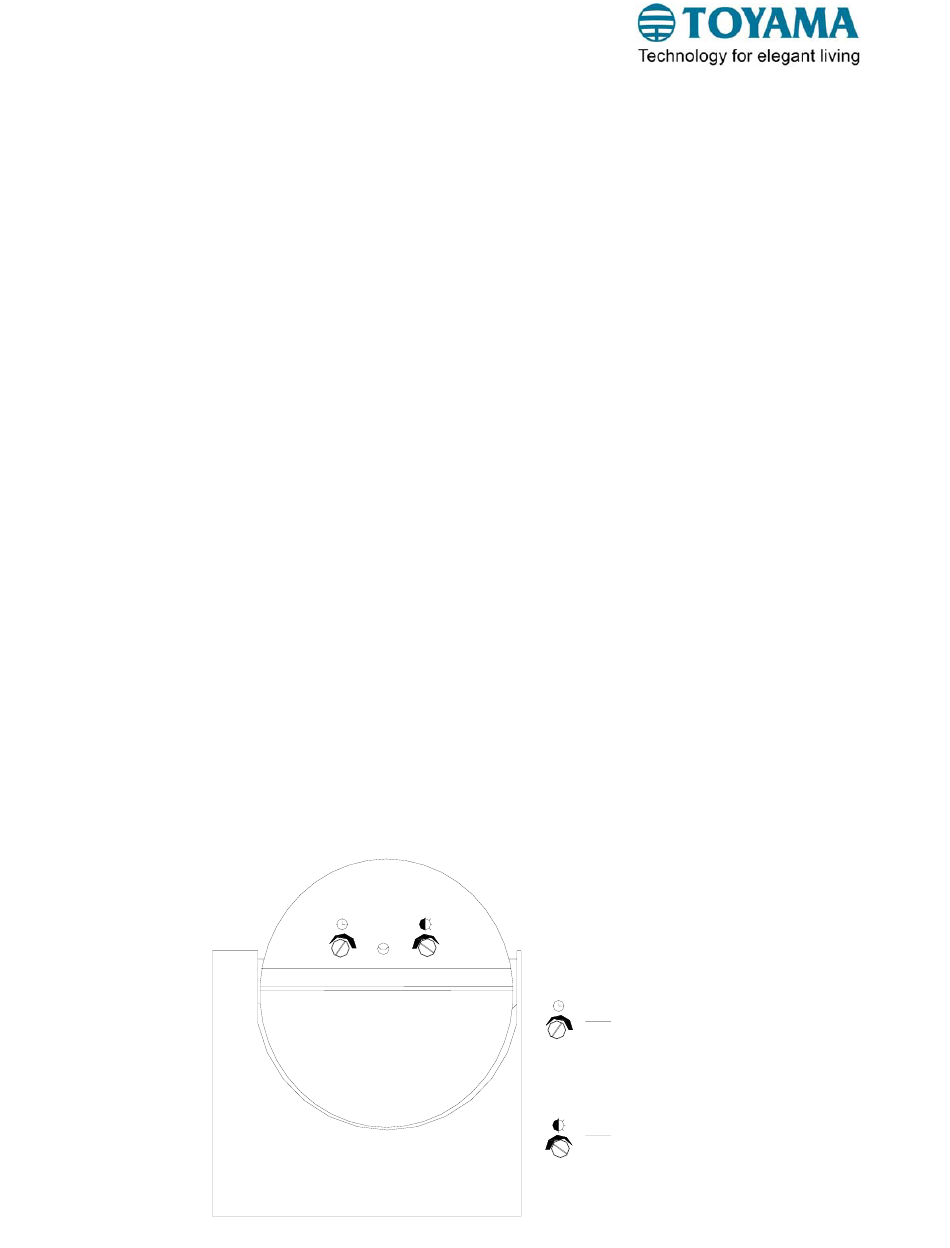

Adjust delay time from
30 seconds min(-) to
450 seconds max(+)
Adjust day/night or
night mode
Advertisement
Table of Contents
Related Manuals for Toyama T 76 252
Summary of Contents for Toyama T 76 252
- Page 1 T 76 252 Technical Manual Toyama Movement sensors are intelligent lighting control energy saving sensitivity detectors. Movement sensors use Passive infrared (PIR) sensor to detect the human movement and make corresponding triggering of loads, say lights. Usage of SMD components not only ensures reliability but also makes the product highly compact for its functionality and features.
- Page 2 Please read the instructions before installing: • Movement sensors should be preferably installed by a trained electrician who can understand the installation procedure and guidelines. • Ensure wires are properly connected with reference to phase, neutral and load. • Concentrated Light from IR emitting fluorescent lamps should not fall on the sensor window, which may disturb the sensing operations.
- Page 3 OPERATION: ♦ Detection field: The detection field is made up of up and down, left and right service field. (See the following diagram). But it has the relation ship between the sensitivity and the orientation of moving. Detection distance can be set according to the installation position and detection field. ♦...
- Page 4 TROUBLE SHOOTING: Symptom Possible cause Remedies • • Light(s) burned out. Replace the bulbs • • Breaker is OFF or tripped. Switch ON the breaker. • • Wiring error Check and correct the connections Lights do not ON • • Lux level adjuster (Photo) may Turn the lux level adjuster (photo) be in moon mode.
