- Page 1 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn HJ8300 Web Configuration User Manual...
- Page 2 All or partial contents of this document cannot be re-issued in paper or electronic version without permission of copyright owner. This document is only for assisting users to use the product. Blueone Technology Co., Ltd are not responsible for any loss or mistake caused by using the information of this document.
-
Page 3: Table Of Contents
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn CONTENTS 1. Overview------------------------------------------------------------------------------------------P4 2. Typical Applications-----------------------------------------------------------------------------P4 3. Functions and Features------------------------------------------------------------------------P5 4. Hardware Parameters--------------------------------------------------------------------------P6 5. Software Parameters---------------------------------------------------------------------------P6 6. Hardware Instructions-------------------------------------------------------------------------P7 7. Common Networking Problems-------------------------------------------------------------P8 8. Software Operation-----------------------------------------------------------------------------P8 8.1 Log in Web Configuration Page---------------------------------------------------------P8 8.2 Basic Configuration------------------------------------------------------------------------P10 8.3 WAN Port Configuration------------------------------------------------------------------P11... -
Page 4: Overview

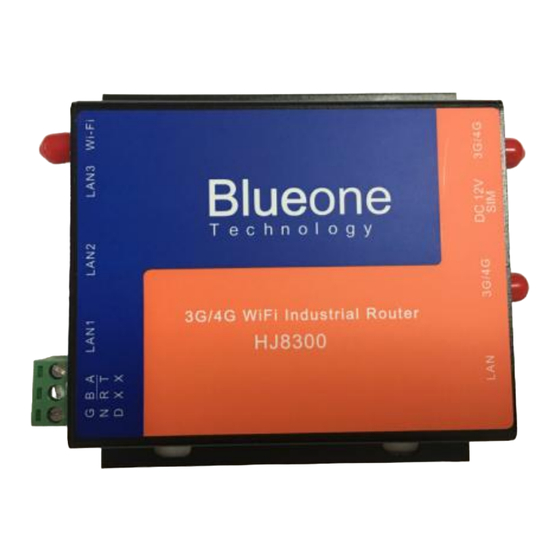

1. Overview HJ8300 industrial grade 4G router adopts embedded Linux OS, industrial grade low power consumption processor and industrial grade communication modules. It supports 1 WAN port, 3 LAN ports, 1 WiFi, 4G and 1 serial port (RS232 or RS485). -
Page 5: Functions And Features
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 11. Weather monitoring 12. Hydro-logical monitoring 13. Heating Network monitoring 14. Electric meter monitoring 15. Coal monitoring 16. Earthquake monitoring 17. Vehicle guidance 18. Water supply monitoring 19. Highway performance monitoring 20. Noise real-time monitoring 21. -
Page 6: Hardware Parameters
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn local end IP Support working as PPP server, multiple authentication method and bidirectional authentication Support real-time clock sntp, updating time online Support DTU function Easy COM and SYSLOG system diagnosis and debugging function ... -
Page 7: Hardware Instructions
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn Authentication CHAP/PAP method Network 3G/4G Various frequency bands and customizable PPPOE,static IP，DHCP server PING,Trace， DHCP server， DHCP， DDNS,DNS Telnet IP router Static routing Standard IEEE 802.11b/g/n Mode AP,Client,Bridge Wi-Fi Safety certificate Support open system... - Page 8 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 6.1. LED Indicator After the device is powered on, the red power light will be solid on, green system running light will be flashing, blue network light will be on for a while and then be off. The blue light will be solid on when 3G/4G is connected.
-
Page 9: Software Operation
0755-83203803 www.blueone.cn 8. Software Operation 8.1 Log in Web Configuration Page HJ8300 WiFi factory configuration: SSID: blueone No password Default IP: 192.168.98.1 Search for the blueone wifi hotspot on your PC or mobile phone to connect and select it as job network. - Page 10 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn Click “Setting” to enter the configuration page.
-
Page 11: Basic Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.2 Basic Configuration Configure WAN port. Select the way of connecting to the Internet. There are multiple options. Ethernet: connected by Ethernet cable. WiFi: connected by WiFi. 3G/4G: connected by 3G/4G sim card. WiFi>4G>Priority: connected by WiFi and 3G/4G simultaneously. It is WiFi and 3G/4G hot switch. -
Page 12: Wan Port Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn automatically. When the Ethernet recovers to work, it will switch to Ethernet from 3G/4G again. Ethernet>WiFi>4G>Priority: connected by Ethernet cable, WiFi and 3G/4G simultaneously. It supports hot switch among Ethernet, WiFi and 3G/4G. 8.3 WAN Port Configuration 8.4 WiFi Configuration... -
Page 13: Station Mode
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.4.2 Station mode Fill in SSID and password of the WiFi network you want to connect. -
Page 14: Bridge To Lan2 Mode
If you want to extend the coverage of WiFi Hotspot, you can select “Bridge to WiFi” demo. As there is proprietary protocol for bridge mode, the objects to bridge must be the products from the same solution. HJ8300 adopts MTK solution, so the objects to bridge must be MTK solution. 8.4.5 Bridge to SmartLINK SmartLINK is a long-distance cross domain networking software technology. -
Page 15: 4G Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn to SmartLINK remote LAN document. 8.5 3G/4G Configuration If you need to use 3G/4G, please select “Enable 3G/4G Network”. If you do not use 3G/4G, please do not “Enable 3G/4G Network”, otherwise the router will try to detect 3G/4G network and cause frequently rebooting. -
Page 16: Lan2 Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.6 LAN2 Configuration LAN2 configuration is to configure LAN1, LAN 2, LAN3, LAN4. Please select to enable. Bridge to SmartLINK is to connect devices joined by LAN1, LAN2, LAN3, LAN4 to SmartLINK network. -
Page 17: Server Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.7 Server Configuration If you want to configure devices through Webserver, you need to enable server function first. 8.7.1 Remote Server Configuration If you need to remotely configure router, you will need to fill in IP/domain and port of the remote server. -
Page 18: P2P
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.7.3 P2P P2P is to use Blueone’ s server as remote tunnel IP penetrating and to realize COM port data remote cross domain networking transmitting. Blueone’ s server is only used to provide static IP to do penetrating but COM port data will not be transmitted through Blueone’... -
Page 19: Vpn Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.8 VPN Configuration HJ8300 can work as VPN client. VPN work modes support PPTP, L2TP/IPSEC. 8.9 Port Mapping Configuration... -
Page 20: Uart Channel Configuration
8.7.3 server setting together. If the router works as Client mode, you need to fill in MAC address and password of remote end. If HJ8300 works as Server mode, you need to fill in HJ8300’ s MAC address and password. -
Page 21: Save Configuration And Reboot Device
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 9. Save Configuration and Reboot Device When all parameters are configured, please click “Save” and then click “Reboot”. After the device is rebooted, the configurations will be effective.
