- Page 1 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn HJ8000 Web Configuration User Manual...
- Page 2 All or partial contents of this document cannot be re-issued in paper or electronic version without permission of copyright owner. This document is only for assisting users to use the product. Blueone Technology Co., Ltd are not responsible for any loss or mistake caused by using the information of this document.
-
Page 3: Table Of Contents
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn CONTENTS 1. Overview------------------------------------------------------------------------------------------P4 2. Typical Applications-----------------------------------------------------------------------------P4 3. Functions and Features------------------------------------------------------------------------P5 4. Hardware Parameters--------------------------------------------------------------------------P6 5. Software Parameters---------------------------------------------------------------------------P6 6. Hardware Instructions-------------------------------------------------------------------------P7 7. Common Networking Problems-------------------------------------------------------------P8 8. Software Operation-----------------------------------------------------------------------------P8 8.1 Log in Web Configuration Page---------------------------------------------------------P8 8.2 Basic Configuration------------------------------------------------------------------------P10 8.3 WAN Port Configuration------------------------------------------------------------------P11... -
Page 4: Overview

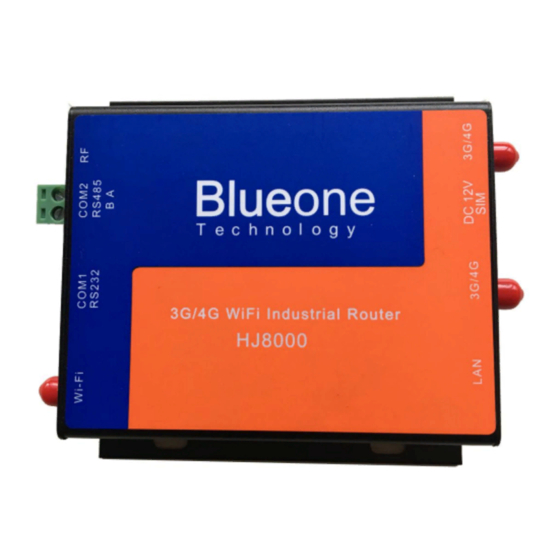

0755-83203803 www.blueone.cn 1. Overview HJ8000 industrial grade 4G router adopts embedded Linux OS, industrial grade low power consumption processor and industrial grade communication modules. It supports 1 WAN/LAN port, WiFi, 4G, 1 RS232 and 1 RS485. HJ8000 is a high performance-price ratio 4G industrial router. Industrial grade design ensures performance stability of the device. -
Page 5: Functions And Features
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 5. The public security monitoring 6. Road monitoring 7. Oil field monitoring 8. Remote meter reading 9. Street Lamp Wireless monitoring 10. Environment monitoring 11. Weather monitoring 12. Hydro-logical monitoring 13. Heating Network monitoring 14. -
Page 6: Hardware Parameters
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn local end IP Support working as PPP server, multiple authentication method and bidirectional authentication Support real-time clock sntp, updating time online Support DTU function Easy COM and SYSLOG system diagnosis and debugging function ... -
Page 7: Hardware Instructions
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn PPPOE,static IP，DHCP server PING,Trace，DHCP server，DHCP，DDNS,DNS Telnet IP router Static routing Standard IEEE 802.11b/g/n Mode AP,Client,Bridge Wi-Fi Safety certificate Support open system WEP/WPA/WPA2 encryption Network safety Safety Data safety PPTP/L2TP IPSEC Management Stability Connection state... -
Page 8: Software Operation
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 6.1. LED Indicator After the device is powered on, the red power light will be solid on, green system running light will be flashing, blue network light will be on for a while and then be off. The blue light will be solid on when 3G/4G is connected. - Page 9 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn No password Default IP: 192.168.98.1 Search for the blueone wifi hotspot on your PC or mobile phone to connect and select it as job network. Next open your browser and input 192.168.98.1 in the address bar to access the...
- Page 10 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn Click “Setting” to enter the configuration page.
-
Page 11: Basic Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.2 Basic Configuration Configure WAN port. Select the way of connecting to the Internet. There are multiple options. Ethernet: connected by Ethernet cable. WiFi: connected by WiFi. 3G/4G: connected by 3G/4G sim card. WiFi>4G>Priority: connected by WiFi and 3G/4G simultaneously. It is WiFi and 3G/4G hot switch. -
Page 12: Wan Port Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn automatically. When the Ethernet recovers to work, it will switch to Ethernet from 3G/4G again. Ethernet>WiFi>4G>Priority: connected by Ethernet cable, WiFi and 3G/4G simultaneously. It supports hot switch among Ethernet, WiFi and 3G/4G. 8.3 WAN Port Configuration 8.4 WiFi Configuration... -
Page 13: Station Mode
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.4.2 Station mode Fill in SSID and password of the WiFi network you want to connect. -
Page 14: Bridge To Wifi Mode
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.4.3 Bridge to WiFi Mode If you want to extend the coverage of WiFi Hotspot, you can select “Bridge to WiFi” demo. As there is proprietary protocol for bridge mode, the objects to bridge must be the products from the same solution. -
Page 15: Server Configuration
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn If you need to use 3G/4G, please select “Enable 3G/4G Network”. If you do not use 3G/4G, please do not “Enable 3G/4G Network”, otherwise the router will try to detect 3G/4G network and cause frequently rebooting. -
Page 16: Ping Function
Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn 8.6.2 PING Function If you need to PING user’ s server, you need to fill in the server’ s IP. Enable PING function and fill in PING IP address. Default setting of PING times is 8. If it is disconnected, the router will PING 8 times continuously. -
Page 17: Specific Ip Function
All joined devices only can access the specific IP. 8.6.6 GPS Function Enable GPS function, configure GPS port and GPS server, then the router will send GPS data to the GPS server periodically. 8.7 VPN Configuration HJ8000 can work as VPN client. VPN work modes support PPTP, L2TP/IPSEC. -
Page 18: Port Mapping Configuration
8.8 Port Mapping Configuration 8.9 UART Channel Configuration HJ8000 supports RS485 and RS232. Click “Add” to add a COM port. Select COM port type, configure Baudrate, Databit, Stopbit and Check. If the serial port device Baudrate is self adaptive, please select... -
Page 19: Save Configuration And Reboot Device
0755-83203803 www.blueone.cn HJ8000 works as Server mode, you do not need to fill in IP/Domain but just the port. P2P is to use Blueone’ s server to do remote tunnel IP penetrating and to realize COM port data remote cross domain network transmitting. This function need to be used with the P2P function of 8.7.3 server setting together. - Page 20 Blueone Technology Co., Ltd 0755-83203803 www.blueone.cn...
