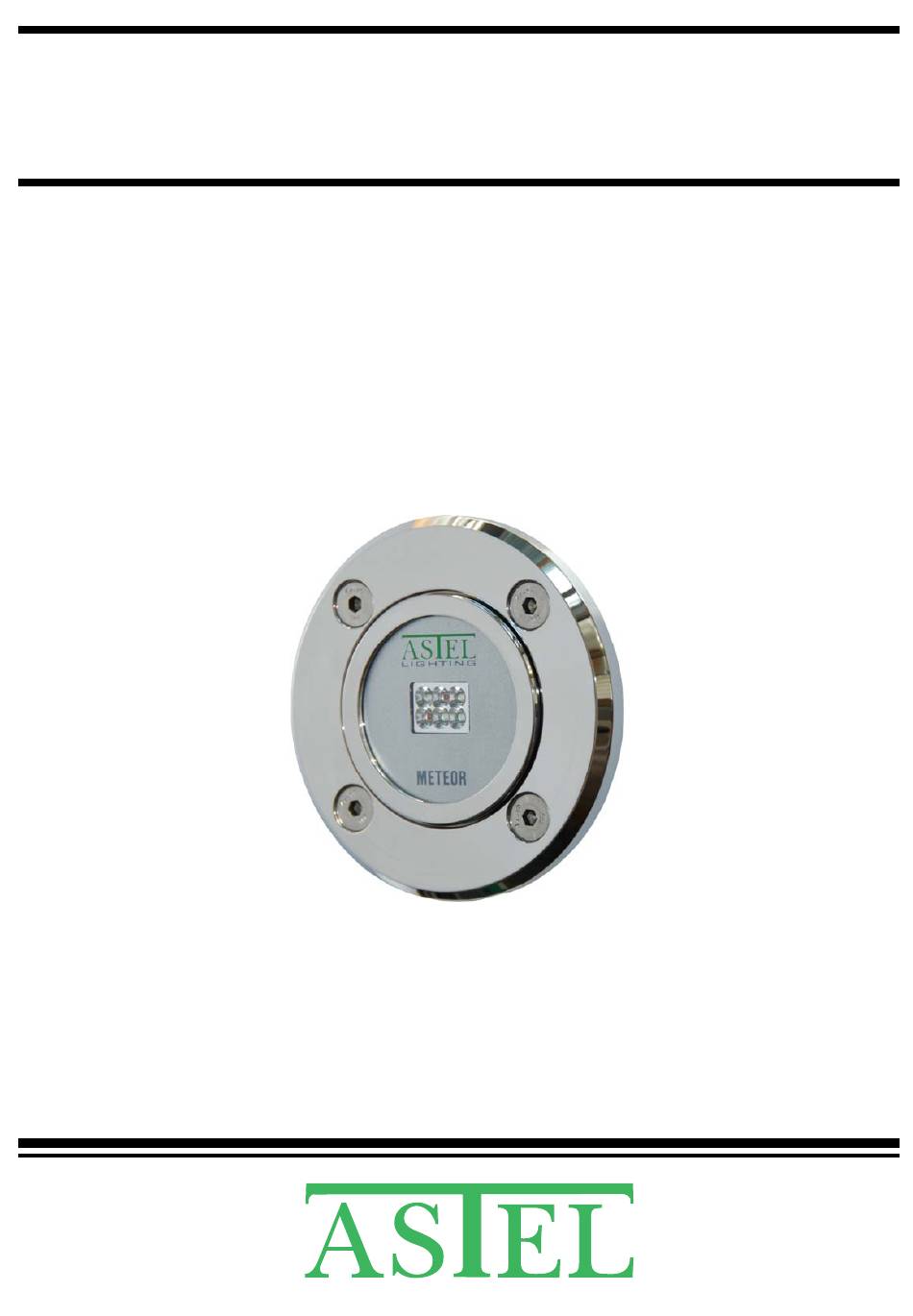

- Page 1 METEOR LSR0640 UNDERWATER POOL LIGHT Operating Instructions LIGHTING...
-
Page 2: Table Of Contents
CONTENTS Preface................................3 Features ................................3 Precautions ................................3 Components and Connectors ..........................4 Installation ................................5 Controls................................7 Appearance................................9 Technical Specifications.............................9 Warranty................................10 Declaration of Conformity..........................11 _________________________________________________________________________________... -
Page 3: Preface
PREFACE PRECAUTIONS The underwater pool light has to be The METEOR LSR0640 series of a compact ultra-thin underwater pool light with built-in installed and used in accordance with the driver is designed to use the latest LED lighting instructions of this manual only. -
Page 4: Components And Connectors
COMPONENTS AND CONNECTORS (1) Optical window High-grade polycarbonate glass optical window. (2) Underwater pool light casing Stainless steel casing with fixing holes and cable gland. (3) Cable The 4-pole multi-core cable to connect the 12-24Vdc power supply and optional remote control or switch. -
Page 5: Installation
Operating Instructions with Declaration of Conformity and Warranty conditions The METEOR LSR0640 has to be installed on a flat surface on the pool wall under water line. Do not try to install the underwater pool light while the pool is filled with water. - Page 6 (not included). The power supply voltage has to be from 10 - 30Vdc. Note: The power supply has to be switched off before installation. The underwater light has to be connected as described in the table below: METEOR LSR0640 FUNCTION wire color + DC Power Supply...
-
Page 7: Controls
The multi-color underwater pool light can be controlled by using the momentary-switch. When the light is turned-off the color or mode of lighting can be changed sequentially by pressing the momentary switch for 2 seconds: METEOR LSR0640 Sequence of lighting Custom Color... - Page 8 Synchronization When more than one multi-color underwater pool light is connected to the system the optional Synchronization Unit LSU08 is recommended to synchronize the colors of lighting at the Rainbow Color Spectrum mode of lighting. On the other case the colors of all installed lights would not be the same after few minutes or hours of operation in the Rainbow Color Spectrum mode.
-
Page 9: Appearance
APPEARANCE TECHNICAL SPECIFICATIONS Power supply 12 – 24 Vdc, max. 680 mA/12 Vdc or 380 mA/24 Vdc Lens angle 60° Optical window High-grade polycarbonate glass Luminous flux max. 650 lm White color temperature 6.000 - 10.000 K ASTEL protocol default address Operating temperature -10C - +50C Casing... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 11: Declaration Of Conformity
ASTEL, Podjetje za projektiranje, proizvodnjo in trgovino, d.o.o. declares that the products Item, Product Name and Model Number: 1. Underwater Pool Light METEOR LSR0640 conform to the following Product Specifications: EMC: EN 55015:2006 + A1:2007 EN 61547:1995 + A1:2000 + A2:2009...
