Assoma AM Series User Manual

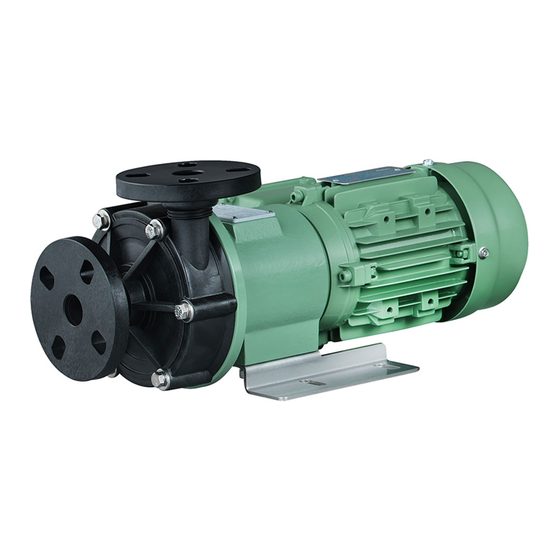

Magnetically driven chemical pump
Hide thumbs Also See for AM Series:
Table of Contents

Advertisement

Quick Links

SERIES
MAGNETICALLY DRIVEN CHEMICAL PUMP
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Assoma AM Series

Summary of Contents for Assoma AM Series

  • Page 1 SERIES MAGNETICALLY DRIVEN CHEMICAL PUMP USER MANUAL...
  • Page 2 Symbols used Situation where improper handling or operation failure to follow this manual would almost certainly result in death or serious bodily injury. Situation where improper handling or operation or failure to follow this manual could result in serious bodily injury or death. Situation where improper handling or operation or failure to follow this manual could result in bodily injury and/or equipment damage.

  • Page 3: Table Of Contents

    AM SERIES Table of Contents 1.  F oreword ................. 2  2.  S afety Requirements ............2  3.  I nspecting the Pump Prior to Installation ......3  4.  I nstallation, Piping and Wiring ........4  5.  N otes for Operation ............11 ...

  • Page 4: Foreword

    This section lists general information about safety. The relevant safety requirements of installation, wiring, operation and maintenance will set out in the relevant sections. ASSOMA INC. may not be held responsible for personal loss or property damage resulting from failure to follow the safety instructions contained herein.

  • Page 5: Inspecting The Pump Prior To Installation

    If the user intends to change the operation condition, please contact ASSOMA INC. or the authorized dealer in the near region to obtain the permission in writing before operation.

  • Page 6: Installation, Piping And Wiring

    Special care should be taken when installing or storing the pump in the following places. Please consult with ASSOMA INC. or authorized dealer in the near region: 1. Places where flammable gas, dust or material is used or placed.
  • Page 7 AM SERIES DISCHARGE Model Force (N) Moment (N-m) ΣF ΣM AM-10 AM-30 AM-50 Note: The values in table are applicable for within 40 4.3 Notes for Installing the Piping System 1.Outlet Piping 2.Throttle Valve 3.Priming Piping 4.Priming Valve 5.Check Valve 6.Outlet Pressure Gauge...
  • Page 8 AM SERIES Procedure Items to Note 1. Suction condition must satisfy NPSHa>NPSHr+0.5 m. 2. Reduce inlet Head as much as possible. Use straight and short piping. 3. The pipes should have adequate structural support and shouldn’t use the pump as its primary support. (see Fig. 4.1) 4.
  • Page 9 AM SERIES Procedure Items to Note 1. The weight of the outlet piping should be properly supported to prevent putting excessive stress on the pump. (see Fig. 4.1) 2. A priming piping must be installed if the suction system does not General employ positive pressure, i.e.
  • Page 10 AM SERIES Procedure Items to Note 1. There should be at least a 1.5 diameter distance between the pipe inlet and the closest tank wall to prevent circulation. (see Fig. 4.4) 2. The submerge depth of the inlet should be at least 0.5 m or at least twice the pipe diameter below the liquid surface.
  • Page 11 AM SERIES Procedure Items to Note A check valve should be installed in the following situations: 1. Outlet piping is long. 2. Head of outlet is more than 15 m. Check valve 3. Discharge pressure exceeds 1.5 kg/cm and flow rate exceeds 2.5 m/sec 4.
  • Page 12 AM SERIES motor and the connection diagram in the terminal box (6) All wiring operations must be in strict compliance with National Electrical Code and local regulations. Make sure to choose the correct wire size and fasten the locking screws to the right torque to prevent loose connections.

  • Page 13: Notes For Operation

    AM SERIES 5. Notes for Operation 5.1 Dry-Running (1) Our pump use the transfer fluid as its internal cooling system, therefore, dry-running the pump can cause the temperature to rise to a dangerous level that may seriously damage the pump.

  • Page 14: Operating Procedure And Notes

    AM SERIES Should foreign matter enter the pump, it may cause pump damage or failure. Turn off the power at once and remove the obstruction. 5.5 Minimum Flow Our pump uses the pumped fluid as its cooling and lubricating system. A low flow rate may result in increasingly high temperature within the pump, and increased radial and axial force, thus, affecting the pump’s performance and service life.

  • Page 15: Maintenance And Inspection

    AM SERIES (3) During power outages, shut off the pump’s power supply and close the outlet valve. (4) When switching on the pump with the outlet valve closed, the outlet pressure should increase. If the pressure fails to rise, or if the pressure is too low, shut down the pump and check the piping and wiring.
  • Page 16 AM SERIES Assembly 3. Bearing displays signs of wear and tear 3. Replace if worn excessively 4. Crystallization and other sludge 5. Foreign objects stuck in impeller 4. Clean 6. Impeller deformed 5. Remove the objects 6. Contact distributor Shaft and Thrust 1.

  • Page 17: Incorrect Usage And Selection

    AM SERIES 1. Strong magnetic field warning: AM’s powerful permanent magnetic coupling could adversely affect persons who are assisted by medical electronic devices such as a pacemaker. 2. Be sure to turn the power off before performing any type of maintenance, repair or inspection.
  • Page 18 AM SERIES Abnormal Condition Possible Symptom and Effect/Damage Inlet pipe not submerged 1. Produce high frequency vibrations and noise. sufficiently into the fluid or air 2. Fracturing of the bearing and thrust rings. sucked into piping system 3. Reduced pump performance.

  • Page 19: Repair And Warranty

    AM SERIES 9. Repair and Warranty When a problem arises, please read this instruction manual and try to troubleshoot the problem. If the problem cannot be found, or if replacement parts are needed, please call the distributor, and give them the following information: (1) The pump model and manufacturing serial number indicated on the nameplate.

  • Page 20: Annex A: Exploded View And Parts List

    Rear Casing Outlet Flange 847.8 Drive Magnet Front Thrust Ring Bracket Shaft Base Bushing Motor 847.8 Table A: AM series tightening torque Unit: kgf-cm（1 kgf-cm=0.1 N-m） Material Model Item PP/ PPG PVDF ETFE+CF Front Casing & Bracket AM-10 Bracket & Motor Drive Magnet &...

  • Page 21: Annex B: Description Of Atex-Specific Marking

    AM SERIES Annex B: Description of ATEX-specific marking 1. The ATEX-specific marking of pump body (without motor) is indicated on the name plate. 2. Please check the name plate on the motor for ATEX-specific marking for the motor. The ATEX-specific marking indicated on the name plate of pump.

This manual is also suitable for:

Am-10Am-30Am-50
