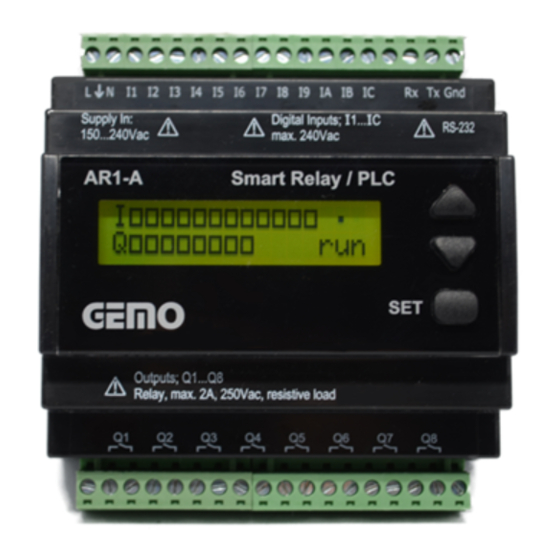

This device is designed for basic automatic control applications.
•
Free of charge Ladder Logic Editor with GUI running on PC, "GEMO LADDER EDITOR";
programming, simulation, download.
•
120 lines, 5 contact column, 1 coil column
•
12 Discrete Inputs; 24VDC or 230VAC
•
8 Discrete Outputs (Relay)
•
16 Timers (11 modes, 4 time bases)
•
16 Counters (15 bits, Up/Down)
•
32 Auxiliary Relays
•
User programmable multilingual two level menu system with password protection
•
Scan time < 10msec.
•
2x16 character back-light LCD display
•
18...32VDC or 100...240VAC supply options

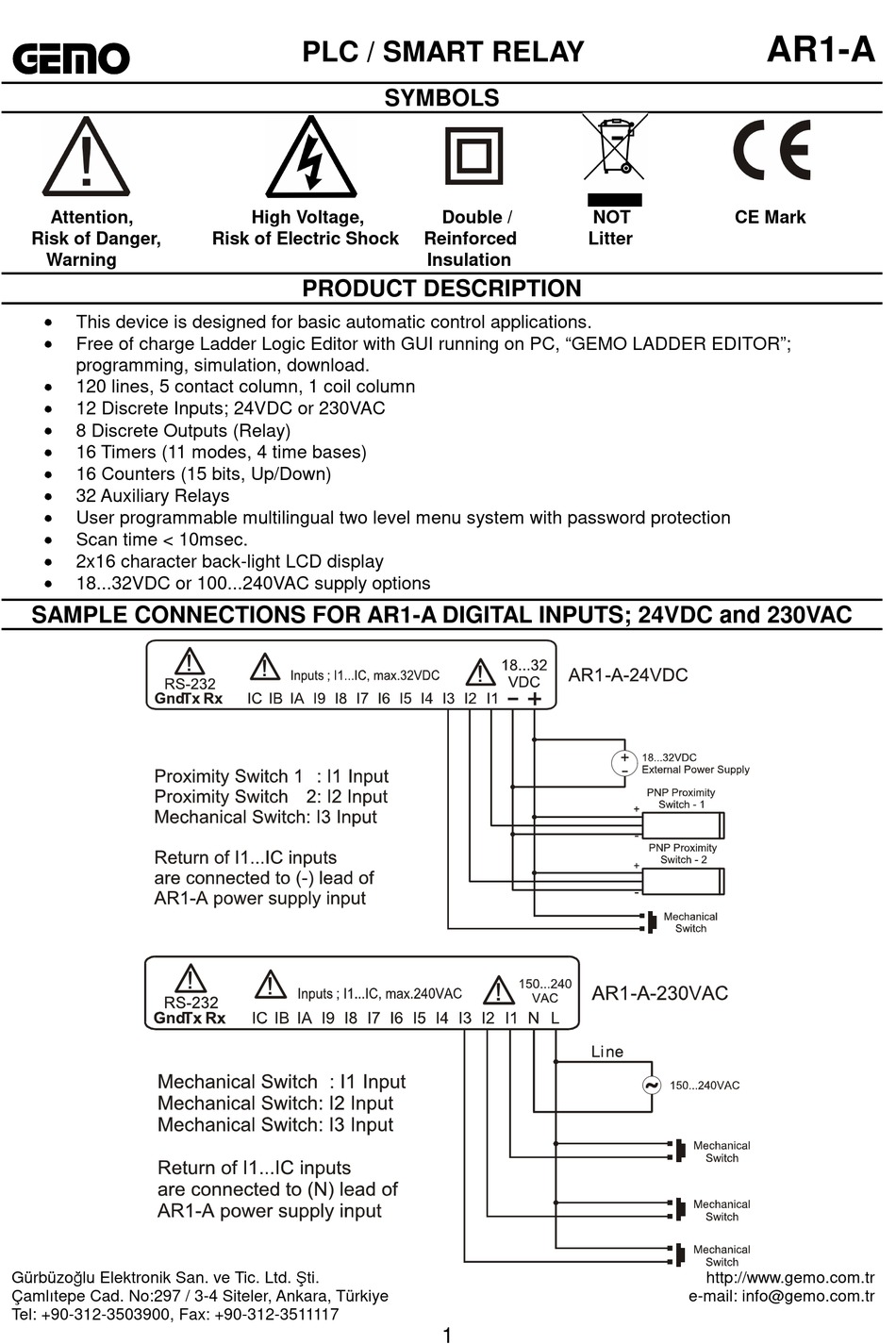

SAMPLE CONNECTIONS FOR AR1-A DIGITAL INPUTS; 24VDC and 230VAC
