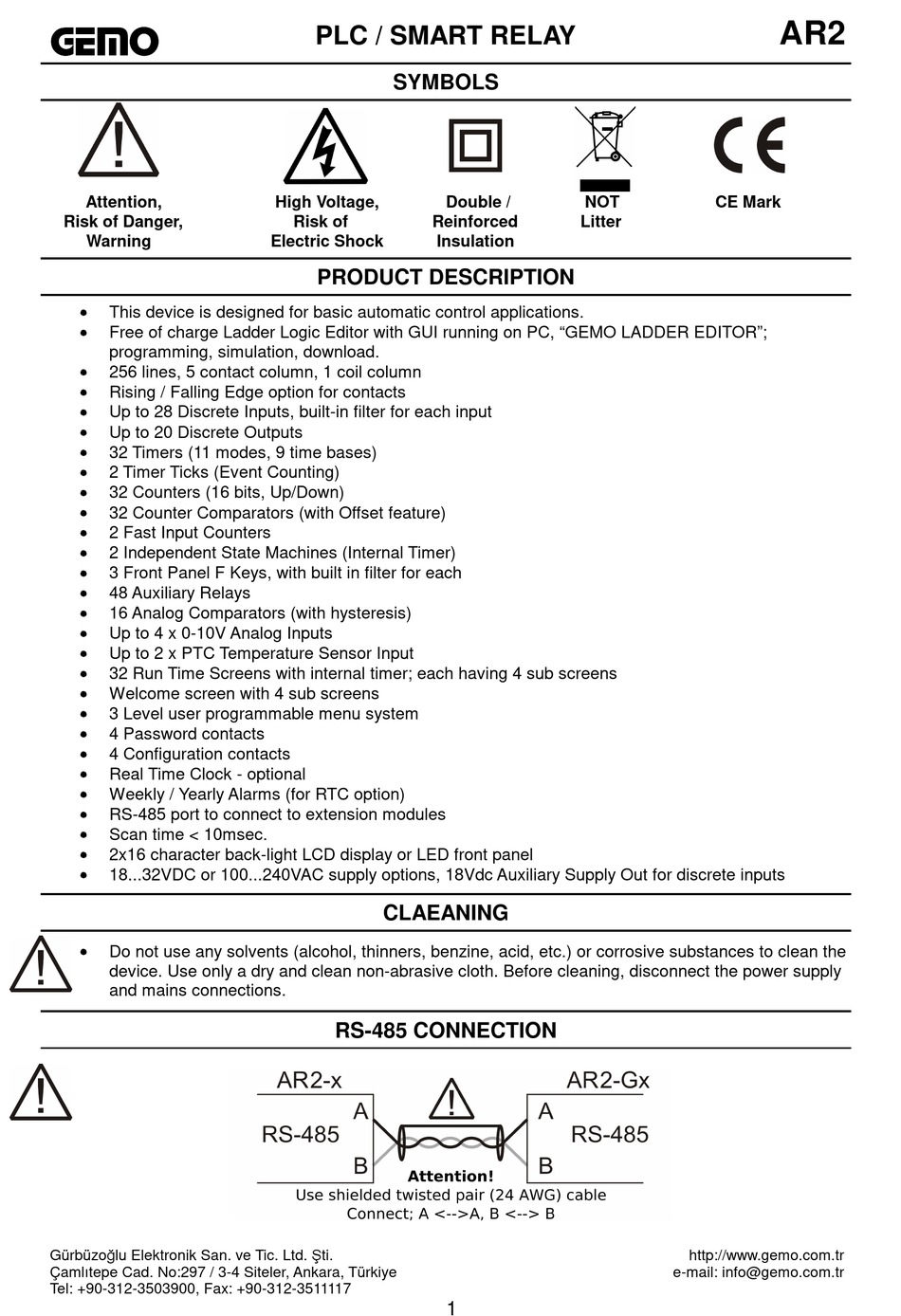

Gemo AR2 Quick Manual

GEMO
Attention,
Risk of Danger,
Warning
•
This device is designed for basic automatic control applications.
•
Free of charge Ladder Logic Editor with GUI running on PC, "GEMO LADDER EDITOR";
programming, simulation, download.
•
256 lines, 5 contact column, 1 coil column
•
Rising / Falling Edge option for contacts
•
Up to 28 Discrete Inputs, built-in filter for each input
•
Up to 20 Discrete Outputs
•
32 Timers (11 modes, 9 time bases)
•
2 Timer Ticks (Event Counting)
•
32 Counters (16 bits, Up/Down)
•
32 Counter Comparators (with Offset feature)
•
2 Fast Input Counters
•
2 Independent State Machines (Internal Timer)
•
3 Front Panel F Keys, with built in filter for each
•
48 Auxiliary Relays
•
16 Analog Comparators (with hysteresis)
•
Up to 4 x 0-10V Analog Inputs
•
Up to 2 x PTC Temperature Sensor Input
•
32 Run Time Screens with internal timer; each having 4 sub screens
•
Welcome screen with 4 sub screens
•
3 Level user programmable menu system
•
4 Password contacts
•
4 Configuration contacts
•
Real Time Clock - optional
•
Weekly / Yearly Alarms (for RTC option)
•
RS-485 port to connect to extension modules
•
Scan time < 10msec.
•
2x16 character back-light LCD display or LED front panel
•
18...32VDC or 100...240VAC supply options, 18Vdc Auxiliary Supply Out for discrete inputs
•
Do not use any solvents (alcohol, thinners, benzine, acid, etc.) or corrosive substances to clean the
device. Use only a dry and clean non-abrasive cloth. Before cleaning, disconnect the power supply
and mains connections.
