Summary of Contents for Pyramid PS15K.5

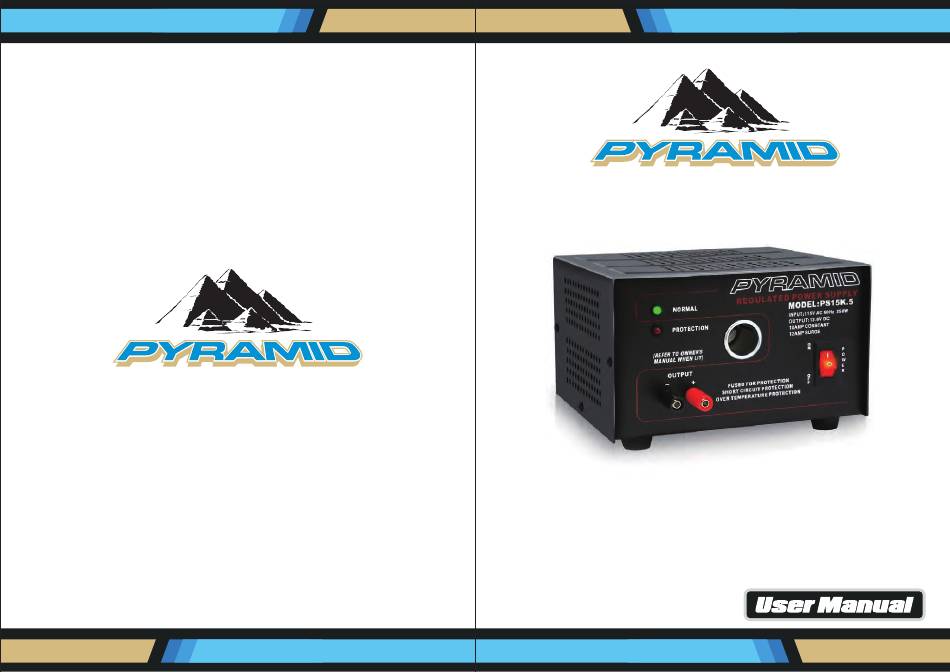

- Page 1 PS15K.5 Bench Power Supply AC-to-DC Power Converter with Car/Vehicle Plug Power Outlet (10 Amp) Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
- Page 2 OPERATION GENERAL SPECIFICATIONS 1. Insert ac power plug into a 110V ac outlet. ELECTRICAL: 2. Connect the power cord of your equipment (13.5V - 14.1V DC) to the output A 1 INPUT RATING binding post terminals on the front of the unit. Be sure that polarity is correct. Input voltage: 105-125V AC (115V normal) The red positive (+) terminal and black negative (-) terminal are marked.
- Page 3 LED Indicator Lights • Built-in Cooling Fan • Power ON / OFF Switch • Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement TECHNICAL SPECS: • Amperage: 10.0 AMP (Constant), 12.0 AMP (Surge) • Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-) •...
