Outdoor propane turkey fryer for outdoor use only
Hide thumbs

Advertisement

Table of Contents

Outdoor Propane Turkey Fryer
Assembly, Use and Care
Model: 085-3230-2 (TF2115701-MC-00)
Tools required:
Cross-head screwdriver / Adjustable wrench
 To installer or person assembling this appliance: Leave this manual with this
appliance for future reference.
 This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
 Read and follow all warnings and instructions before assembling and using the
appliance.
 Follow all warnings and instructions when using the appliance.
 Keep this manual for further reference.
TF2115701-MC-00 Eng
Page 1 of 19
For Outdoor Use Only
20161205-Ver.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF2115701-MC-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Master Chef TF2115701-MC-00

Summary of Contents for Master Chef TF2115701-MC-00

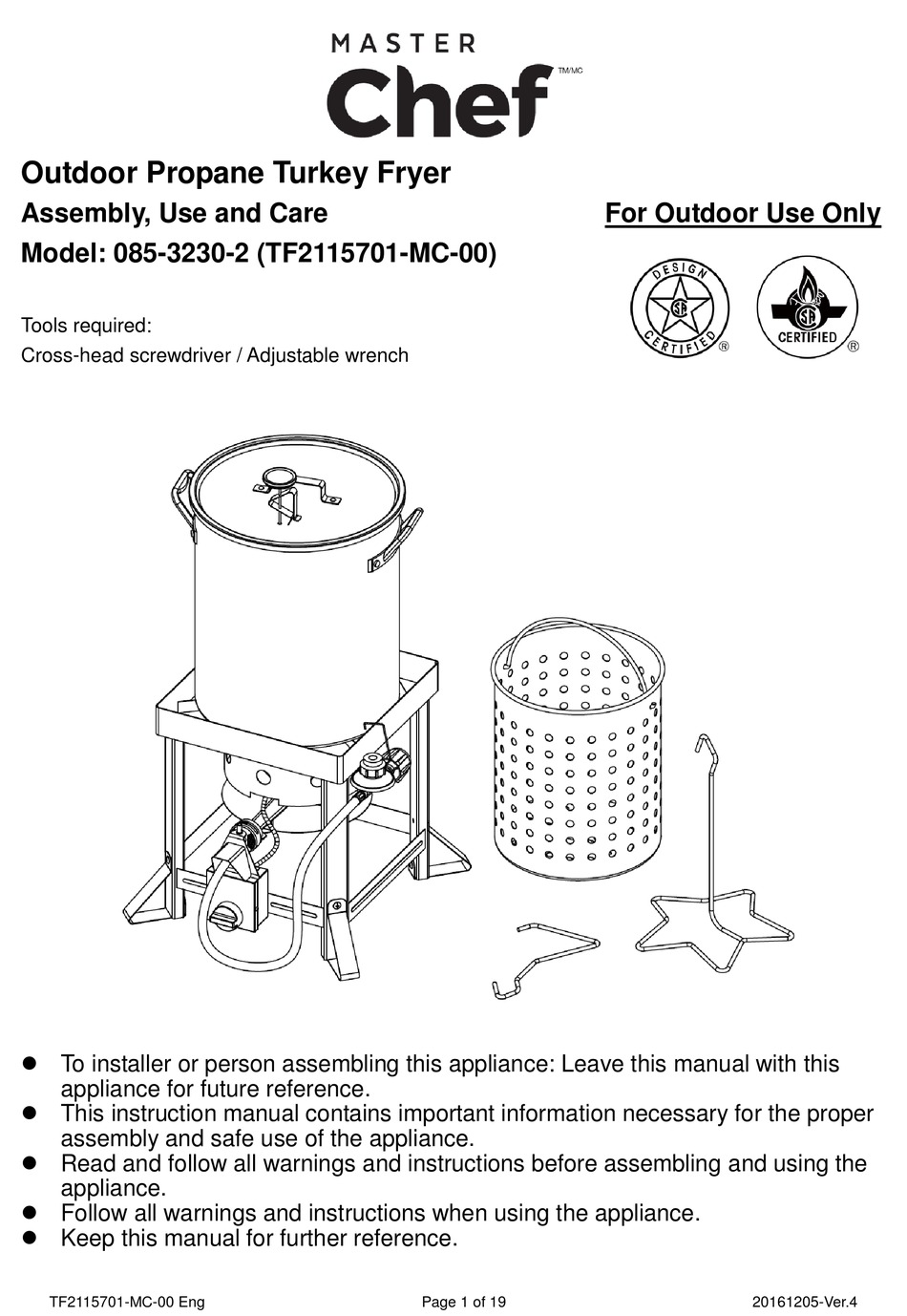

  • Page 1 Outdoor Propane Turkey Fryer Assembly, Use and Care For Outdoor Use Only Model: 085-3230-2 (TF2115701-MC-00) Tools required: Cross-head screwdriver / Adjustable wrench  To installer or person assembling this appliance: Leave this manual with this appliance for future reference.  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

  • Page 2: Safety Symbols

    Do not attempt to extinguish an oil or grease fire with water. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death. WARNING This appliance is not intended for commercial use. TF2115701-MC-00 Eng Page 2 of 19 20161205-Ver.4...
  • Page 3 If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct, clean and inspect valve, hose and regulator before continuing. Perform a leak test. TF2115701-MC-00 Eng Page 3 of 19 20161205-Ver.4...
  • Page 4  Do not store LP tanks in an area where children play.  Turn off gas at supply cylinder when not in use. TF2115701-MC-00 Eng Page 4 of 19 20161205-Ver.4...
  • Page 5 Brush soapy solution onto all weld seams and entire valve area. WARNING If “growing” bubbles appear, do not use or move the LP tank. Contact an LP gas supplier or your fire department. TF2115701-MC-00 Eng Page 5 of 19 20161205-Ver.4...
  • Page 6 If leaks cannot be stopped, do not try to repair. Use only replacement parts specified by manufacturer. 6. Always close LP tank valve after performing tank leak test by turning OPD hand wheel clockwise. TF2115701-MC-00 Eng Page 6 of 19 20161205-Ver.4...
  • Page 7 Turn regulator control valve to OFF position. Fully turn timer control knob clockwise. Fully open LP tank valve. Light match and place it over burner. Tip: Wooden kitchen match works best. Lighted match TF2115701-MC-00 Eng Page 7 of 19 20161205-Ver.4...
  • Page 8 Cycle time for timer is around 15 minutes. If the timer is not reset within around 15 minutes, the burner will shut OFF automatically. If this occurs, please follow lighting instructions and continue to cook. TF2115701-MC-00 Eng Page 8 of 19...
  • Page 9 4. Inspect and clean the burner if needed. 5. Reattach orifice/hose to burner. TF2115701-MC-00 Eng Page 9 of 19 20161205-Ver.4...
  • Page 10 Burner: Use wire brush to loosen corrosion from burner exterior. Clean clogged gas port holes with an opened paper clip. Replace corroded or damaged burners that would emit excess gas.  Cooking surfaces, pots and pans. Clean the cooking surface with soapy water and a nylon cleaning pad. TF2115701-MC-00 Eng Page 10 of 19 20161205-Ver.4...

  • Page 11: Product Diagram

    Product Diagram TF2115701-MC-00 Eng Page 11 of 19 20161205-Ver.4...

  • Page 12: Component List

    1 pc 8. T-star stand 1 pc 11. 15” (38.1 cm) 9. Lifter 1 pc 10. Strainer basket 1 pc Thermometer 1 pc Hardware List Part Description Diagram Qty. M6 x 12 Bolt TF2115701-MC-00 Eng Page 12 of 19 20161205-Ver.4...
  • Page 13 Proper connection is critical timer control box (6) by for correct operation of unit turning the burner clockwise. Do not fully tighten the burner to the valve, tighten until 3 threads remain visible on the valve. TF2115701-MC-00 Eng Page 13 of 19 20161205-Ver.4...
  • Page 14 (7). The alignment pin on bottom of burner (5) must be inserted through the large hole of the heat shield (7). Tighten hex nut onto bolt of the burner (5). TF2115701-MC-00 Eng Page 14 of 19 20161205-Ver.4...
  • Page 15 The boiling baskets have handles for easy lifting. Use with Turkey Fryer for boiling, steaming or frying large quantities of food. Perfect for crab and crawfish boils, fish frys, soups and stews, canning fruits and vegetables. You can even fry a whole turkey in these boiling pots. TF2115701-MC-00 Eng Page 15 of 19 20161205-Ver.4...
  • Page 16 (see photo). Centre the pot over the burner on the cooker.  Fill the pot to the mark with peanut oil. TF2115701-MC-00 Eng Page 16 of 19 20161205-Ver.4...
  • Page 17 When frying with oil/grease, all food products MUST be completely thawed and towel dried before being immersed in the fryer. TF2115701-MC-00 Eng Page 17 of 19 20161205-Ver.4...

  • Page 18: Troubleshooting

    LP tank valve. Disconnect the regulator from the LP tank and wait one minute. Reconnect the regulator control valve to the LP tank valve and slowly open the LP tank valve until it is fully open. TF2115701-MC-00 Eng Page 18 of 19 20161205-Ver.4...

  • Page 19: Limited Warranty

    C. Discolouration or loss of paint due to handling during assembly, heat or cleaning products. Paint may require touch-up. D. Stainless steel discolouration or corrosion. E. Consumables such as batteries. Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 TF2115701-MC-00 Eng Page 19 of 19 20161205-Ver.4...
