Summary of Contents for Master Chef 085-3226-4

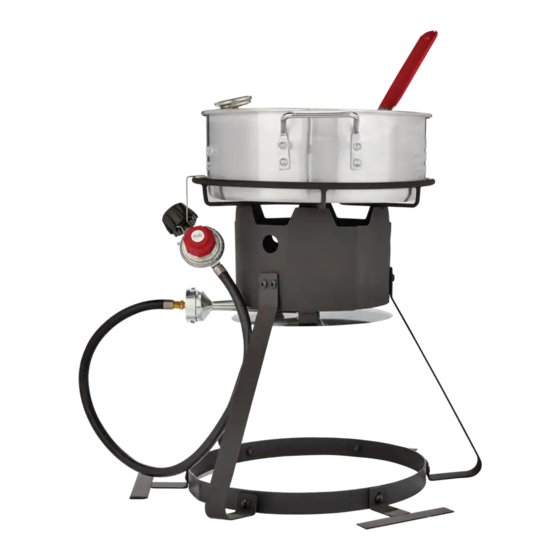

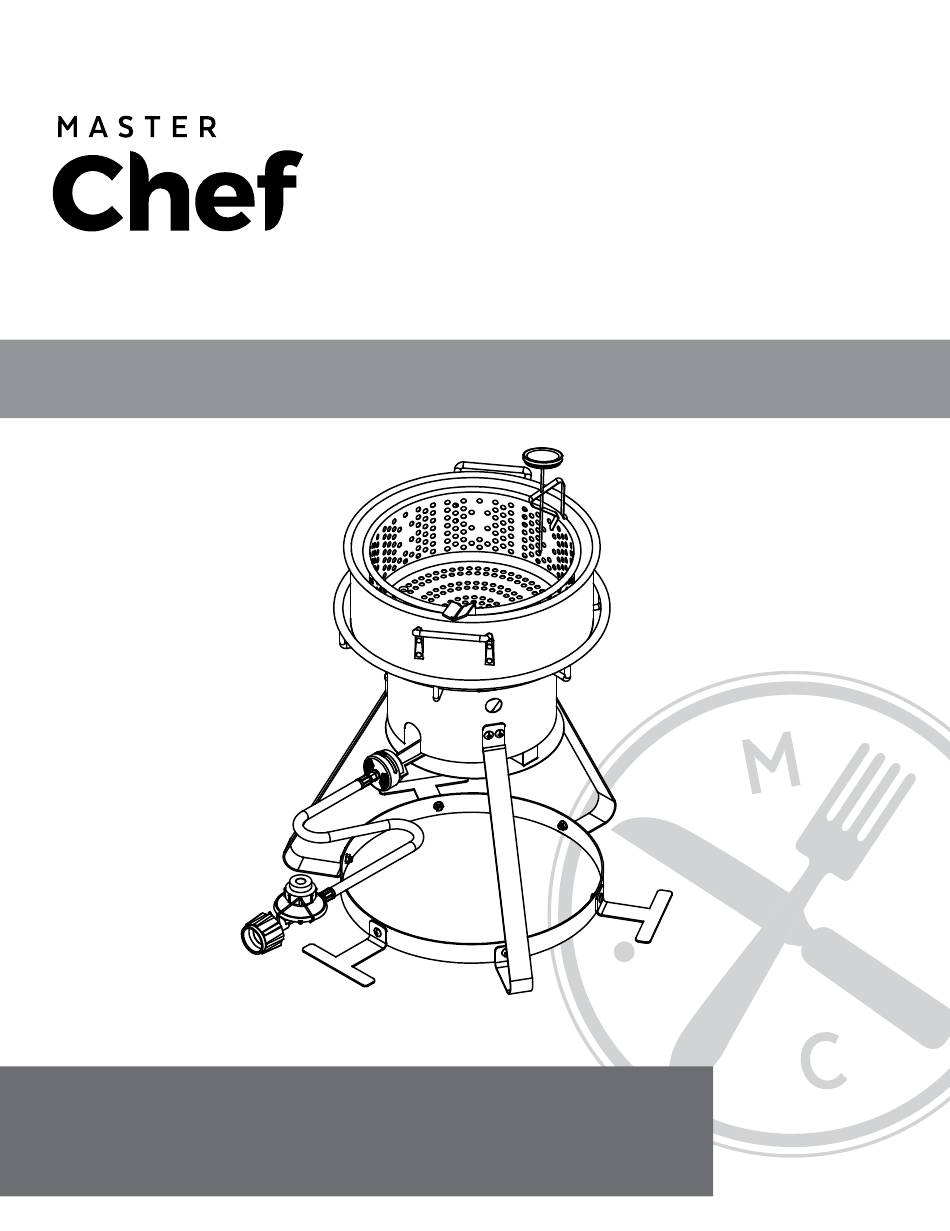

- Page 1 Outdoor Propane Fish Fryer Product no. 085-3226-4 (TF2244806-MC-00) INSTRUCTION MANUAL Toll-free: 1-855-803-9313 Read this manual thoroughly before using and save it for future reference.
-
Page 2: Safety Symbols
Product no. 085-3226-4 (TF2244806-MC-00) | Contact us: 1-855-803-9313 Warnings Product Diagram Component List Hardware List Assembly Instructions Troubleshooting Limited Warranty • To installer or person assembling this appliance: Leave this manual with this appliance for future reference. • This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. - Page 3 DANGER: If you smell gas: 1. Shut o gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.
- Page 4 Product no. 085-3226-4 (TF2244806-MC-00) | Contact us: 1-855-803-9313...
- Page 5 Key No. Description Qty. Welded stand Legs Stand ring T-support leg Hook Heat shield Burner Regulator hose assembly Fish pot Fish basket Basket handle 5" (12.7 cm) thermometer Part No. Description Diagram Qty. M6 x 12 Bolt M6 Flange nut M5 x 10 Bolt M5 Nut Tooth washer...
- Page 6 Product no. 085-3226-4 (TF2244806-MC-00) | Contact us: 1-855-803-9313 Step 1 Assemble the leg (2) to welded stand (1) by using 6 bolts (A) and 6 flange nuts (B). Step 2 Assemble the leg (2) to the ring stand (3) by using 3 bolts (A) and 3 flange nuts (B).
- Page 7 Step 3 Insert the burner (7) into the cooker stand and through the cut-out opening on the side of the stand. Insert the threaded pin at the bottom of the burner into the centre hole of the burner bracket. Make sure the alignment pin is seated in the notch on the edge of the burner bracket.
- Page 8 Product no. 085-3226-4 (TF2244806-MC-00) | Contact us: 1-855-803-9313 Step 5 Attach the basket handle (11) by inserting 4 bolts (C) through fish basket (10). Secure with 4 tooth washers (E) and 4 nuts (D). Step 6 Thread hook (13) through hole on...
- Page 9 Step 7 When transporting or storing the cooker without the LP tank attached, hook the regulator onto cooker stand to prevent damage to regulator.
- Page 10 Product no. 085-3226-4 (TF2244806-MC-00) | Contact us: 1-855-803-9313 Problem Possible Cause Corrective Action The connection between the regulator The burner does Check and make sure the regulator coupling nut is tightened to not light up. and LP tank are not in good condition.
- Page 11 1. Limited Warranty This product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace a defective product, within the stated warranty period, when returned to the place of purchase with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
- Page 12 Master Chef Canada Toronto, Canada M4S 2B8...
