Whelen Engineering Company TIR3 Quick Start Manual

ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
WARNING: This product can expose you to chemicals including Methylene Chloride which is known to the State of California to cause cancer, and
Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Installation:

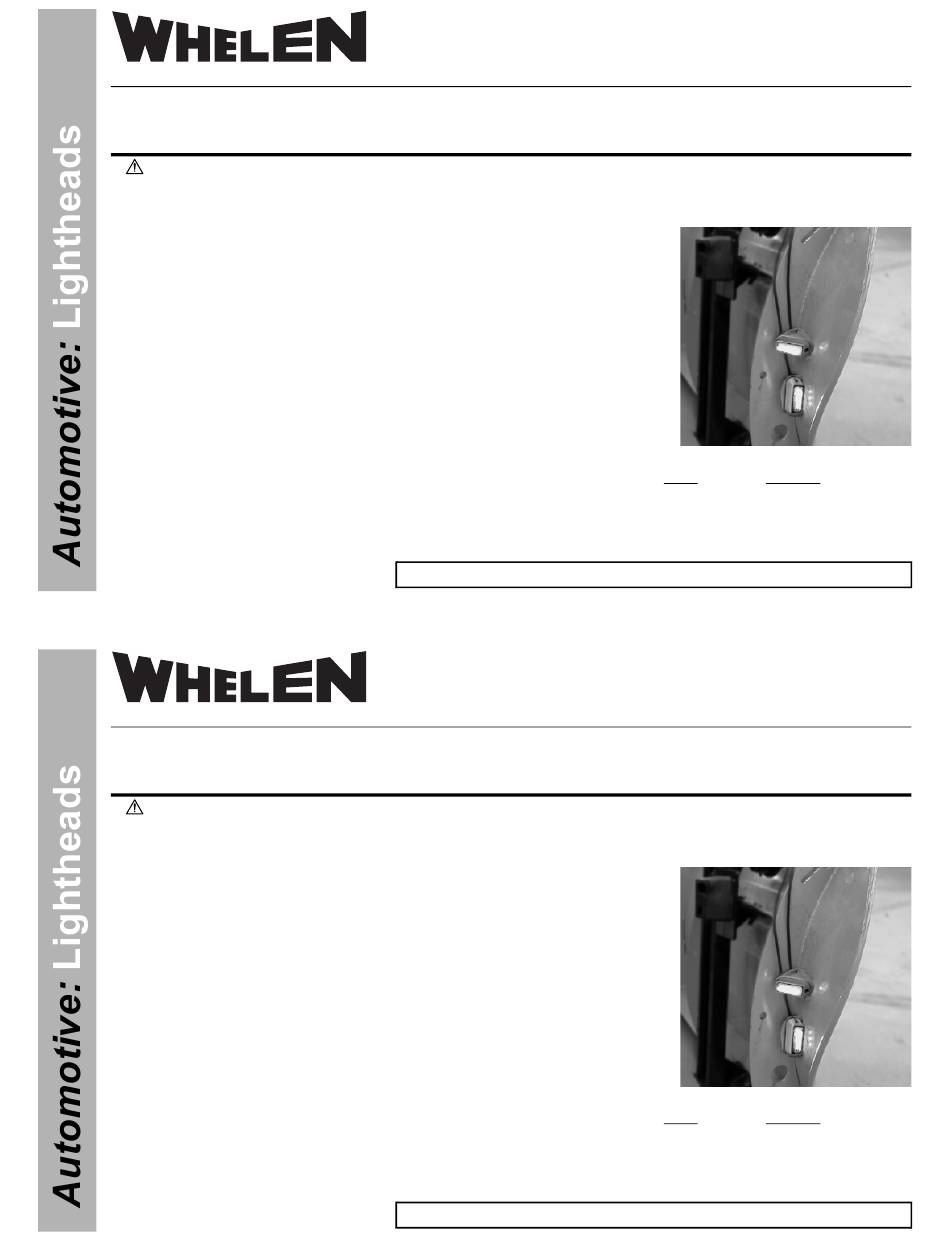

Place the light assemblies in the outside crevice of the outermost reinforcement brace in
the approximate positions shown. Make sure the lighthead cable is positioned in the cable
notch and that the housing is in full contact with the plow.
With the housings in place, use an awl (or similar tool) to scribe the mounting hole
locations (2 per housing) onto the mounting surface. Remove the housings and with a 9/
32" drill bit, drill the required mounting holes through the mounting surface.
Return the housings to their mounting locations and secure using the hardware provided.
NOTE: Be sure to insert the mounting bolt though the mounting hole from the front
of the plow.
Wiring:
Route the lighthead cables, choosing a manner and path to prevent damage by and
interference from any existing equipment. See table at right for wiring information:
(Continued on reverse)
©2004 Whelen Engineering Company Inc.
Form No.13878C (113011)
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
WARNING: This product can expose you to chemicals including Methylene Chloride which is known to the State of California to cause cancer, and
Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Installation:
Place the light assemblies in the outside crevice of the outermost reinforcement brace in
the approximate positions shown. Make sure the lighthead cable is positioned in the cable
notch and that the housing is in full contact with the plow.
With the housings in place, use an awl (or similar tool) to scribe the mounting hole
locations (2 per housing) onto the mounting surface. Remove the housings and with a 9/
32" drill bit, drill the required mounting holes through the mounting surface.
Return the housings to their mounting locations and secure using the hardware provided.
NOTE: Be sure to insert the mounting bolt though the mounting hole from the front
of the plow.
Wiring:
Route the lighthead cables, choosing a manner and path to prevent damage by and
interference from any existing equipment. See table at right for wiring information:
(Continued on reverse)
©2004 Whelen Engineering Company Inc.
Form No.13878C (113011)
®
For warranty information regarding this product, visit www.whelen.com/warranty
®
Page 1
For warranty information regarding this product, visit www.whelen.com/warranty
Super-LED® Wing Plow Lights
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Customer Service e-mail: custserv@whelen.com
Lighthead Wiring
Color
WHT/BLK
BROWN
WHT
BLUE
Super-LED® Wing Plow Lights
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Customer Service e-mail: custserv@whelen.com
Lighthead Wiring
Color
WHT/BLK
BROWN
WHT
BLUE
TIR3™ & LINZ6™
Function
To Chassis Ground
To +12VDC (fuse @ 3A)
Scan-Lock™
Sync
TIR3™ & LINZ6™
Function
To Chassis Ground
To +12VDC (fuse @ 3A)
Scan-Lock™
Sync
