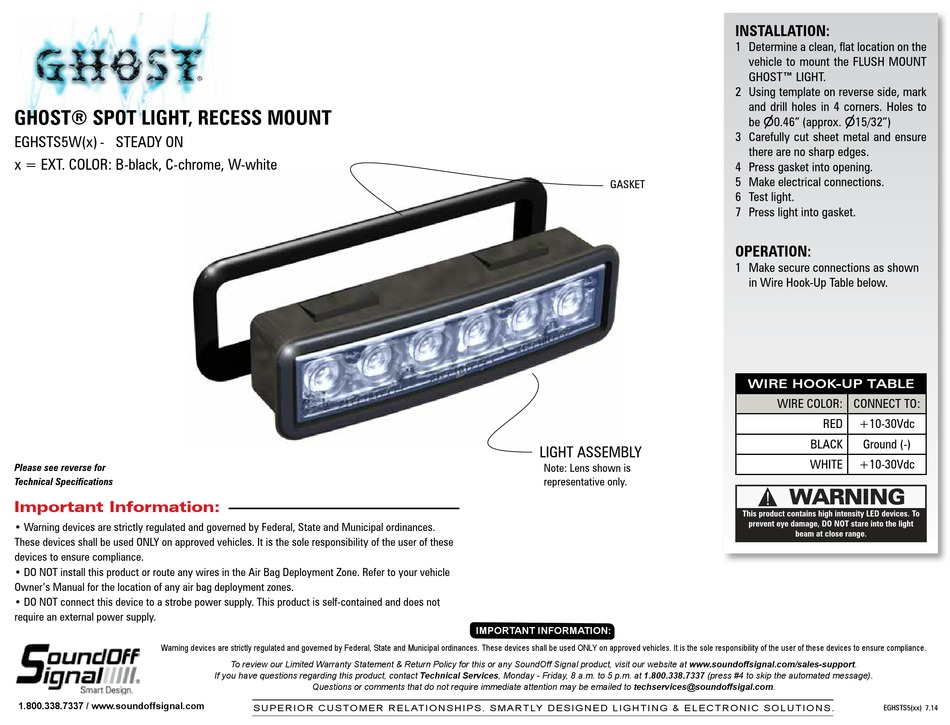

GHOST® SPOT LIGHT, RECESS MOUNT
EGHSTS5W(x) - STEADY ON
x = EXT. COLOR: B-black, C-chrome, W-white
Please see reverse for
Technical Specifications
Important Information:
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner's Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
1.800.338.7337 / www.soundoffsignal.com
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800.338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
GASKET
LIGHT ASSEMBLY
Note: Lens shown is
representative only.
IMPORTANT INFORMATION:

INSTALLATION:

1 Determine a clean, flat location on the
vehicle to mount the FLUSH MOUNT
GHOST™ LIGHT.
2 Using template on reverse side, mark
and drill holes in 4 corners. Holes to
be 0.46" (approx. 15/32")
3 Carefully cut sheet metal and ensure
there are no sharp edges.
4 Press gasket into opening.
5 Make electrical connections.
6 Test light.
7 Press light into gasket.

OPERATION:

1 Make secure connections as shown
in Wire Hook-Up Table below.

WIRE HOOK-UP TABLE

WIRE COLOR: CONNECT TO:
RED +10-30Vdc
BLACK Ground (-)
WHITE +10-30Vdc
WARNING
!
This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
beam at close range.
EGHSTS5(xx) 7.14
