- Page 1 Specifications Hull Width 220 mm (8.66”) Hull Length 1000 mm (39.37”) Height from bottom of hull 1790 mm (70.50”) Total Height 2130 mm (83.87”) Weight 3.15 kg (6.94 lbs) Servos Sail winch servo and rudder servo Total Sail Area 6050 cm (937.75 in )

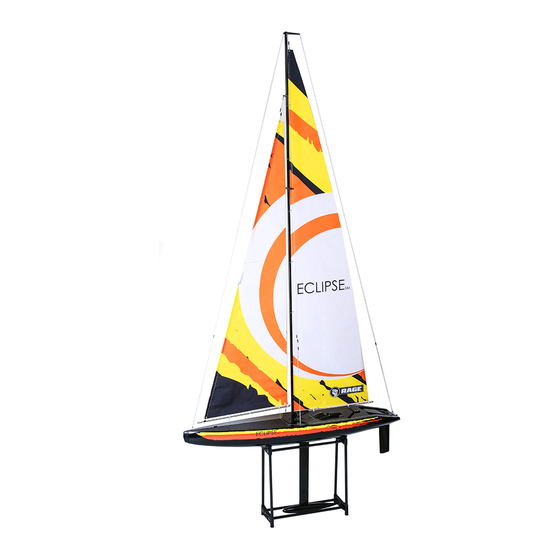

- Page 2 Introduction The Eclipse 1M is the ideal way to experience the pleasure of sailing on a gentle summer’s breeze, or the excitement of racing your own America’s Cup racing yacht. The large one meter (39”) hull is precision blow-molded from high-strength ABS and features durable, reinforced rip-stop nylon sails that arrive pre-printed with bright, attractive graphics.
- Page 3 Contents 3 / 14...
- Page 4 Installation and Rigging Guide 1. Setup the display base as shown in picture. 2. Setup the keel, water-proof rubber piece and Insert the tubes into the sockets, no gluing is ballast by HM 5x25mm screw, using a H 4.0mm required. For greater stability glue joints with CA. allen key.
- Page 5 8. Slide the remaining 2 Luff rings onto the 7. Locate the other mast sections and assemble middle mast before connecting it to the lower in the order shown above. mast. Note: the fitting is perpendicular to the hull. 9. Raise the sail and place the plastic swivel 10.
- Page 6 13. Attach clevis to the front silicone ring on 14. Slide the bowsie to tighten the line in the jib boom. order to position the jib in front of the main mast. 16. Locate the line storage board. A and B 15.
- Page 7 19. Now that you have completed the basic assembly of your sailboat, some adjustment of the rigging may be necessary. Please refer to the instructions below. (1) Rear silicone ring on the main boom can be adjusted to tighten the main sail. Leave a little slack in the sail so that it can catch the wind.
- Page 8 Silicone Ring 21. The counterweight on the front of the jib boom is to adjust its balance. It should balance with the CG (center of gravity) on the silicone ring. Move the counterweight either in or out to make the boom feel neutrally balanced and moves to either side equally. 22.
- Page 9 26. This front view shows the locations of the lateral main mast support lines. 27. The water seal for the steering arm is a self adhesive backed part. Peel the paper backing to expose the glue. 28. Press in place on aft deck above the steering arm.
- Page 10 Transmitter Functions The yacht comes with a 2.4GHz 4-channel radio system. For sailing you will only need 2 channels. 1. The sail stick controls the angle of the main and jib sails in relation to the hull. When you move the sail stick up, both sails will be allowed to expand forward to catch the wind.
- Page 11 How-to-sail Instruction Sailing presents a more interesting set of challenges than power boating, it requires a constant reac- tion to water movement and wind conditions. These reactions require adjustments of both rudder and sails in order to find the best possible setting for speed and course. There is not substitute for actual “on-the-water”...
-
Page 12: Troubleshooting Guide
Sailing Checklist NOTE: This checklist is NOT intended to replace the content included in this instuction manual. Although it can be used as a quick start buide, we strongly suggest reading through this manual completely before proceeding. 1. Always turn transmitter on first. 2. - Page 13 Eclipse Spare Parts Item Number Description RGRB1301 Eclipse 1M RTR Sailboat RGRB1305 Painted Hull w/ Decals RGRB1306 Hatch Set RGRB1307 Pre-Printed Full Sail w/ Dyneema Cord RGRB1308 Jib Spare Parts Set RGRB1309 Main Boom Parts Set RGRB1310 Dyneema Cord (10M)
-
Page 14: Limited Warranty
Limited Warranty Eclipse boat Printed in China...
