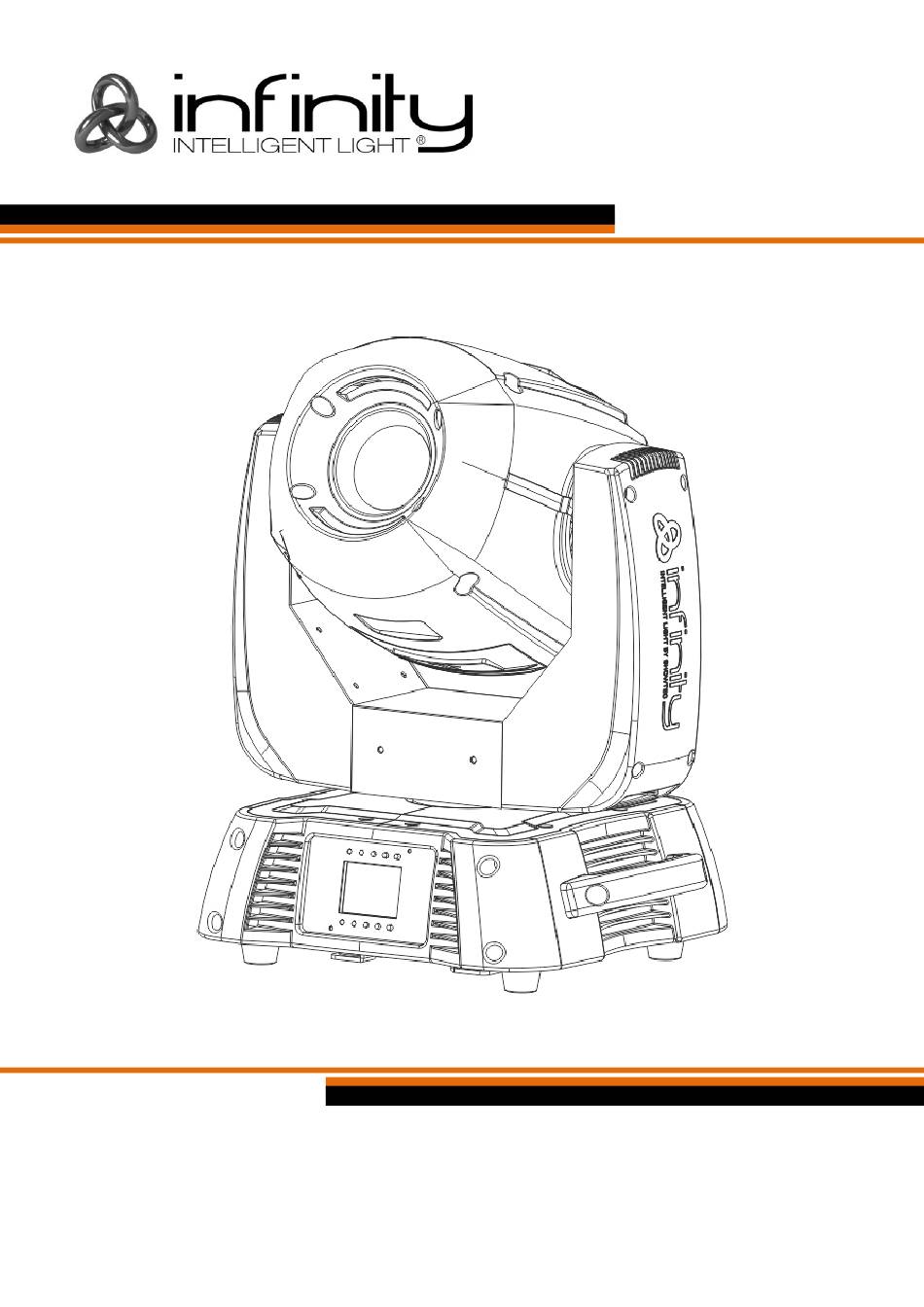

- Page 1 MANUAL ENGLISH Infinity iS-100 Ordercode: 41500 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backside ..................................8 Installation ................................... 9 Set Up and Operation ............................... 9 Control Modes ................................9 One Infinity (Built-in Programs)..........................9 Multiple Infinity’s (Master/Slave control) ....................... 9 Multiple Infinity’s (DMX Control) ..........................10 Fixture Linking ................................11 Data Cabling ................................11 Control Panel ................................12 Control Mode ................................12... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity iS-100 LED Spot with Powercon powercable 0,9m ● 2 brackets for truss mounting ●... - Page 4 For replacement use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the projector, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Ordercode: 41500... - Page 6 Infinity iS-100 Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41500...
-
Page 7: Return Procedure
Infinity iS-100 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE... -
Page 8: Description Of The Device
Infinity iS-100 Description of the device Features The Infinity iS-100 LED Spot is a moving-head with high output and great effects. ● Covers with quick lock screws ● Fast color & gobo changes due to high torque motors ● On-Board: Battery powered full color display including gravity sensor ●... -
Page 9: Overview
Infinity iS-100 Overview Fig. 01 01) Lens 02) Menu Buttons + LCD Display Backside Fig. 02 DMX signal connector (IN) 5-pin DMX signal connector (OUT) 5-pin 05) DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin Neutrik Powercon IN... -
Page 10: Installation
Infinity iS-100 Installation Remove all packing materials from the Infinity iS-100 LED Spot. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Multiple Infinity's (Dmx Control)
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-p XLR cable to connect the Infinity’s and other devices. 05) Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"... -
Page 12: Fixture Linking
DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.). The Infinity iS-200 LED Spot can be operated with a controller in control mode or without the controller in stand-alone mode. -
Page 13: Control Panel
When using multiple Infinity’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity’s should be 1(001); the DMX address of the second Infinity should be 1+19=20 (020); the DMX address of the third Infinity should be 20+19=39 (039), etc. -
Page 14: Menu Overview
Infinity iS-100 Menu Overview Ordercode: 41500... -
Page 15: Main Menu Options
Infinity iS-100 Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 16: Edit Mode
Infinity iS-100 2. Edit Mode With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 3 different modes. Use the Up / Down buttons to select the required mode:... -
Page 17: Life Time
Infinity iS-100 3.1. Life Time With this menu you can reset the device’s counters. 01) Press the buttons to select Life Time and press the button to open the menu. 02) Press the buttons to choose one of the 3 reset options: •... -
Page 18: Built-In Programs
Infinity iS-100 4. Built-in Programs With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 10 different modes. Use the Up / Down buttons to select the required mode:... -
Page 19: Test Menu
Infinity iS-100 5. Test Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different modes. Use the Up / Down buttons to select the required mode:... -
Page 20: Information Menu
Infinity iS-100 6. Information Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. 03) You can only view 6 current settings, you cannot change anything Ordercode: 41500... -
Page 21: Dmx Channels
Infinity iS-100 DMX Channels 19 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 22 Infinity iS-100 Channel 9 – Colourwheel 1 Linear color change following the movement of the slider. Between 128 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 7-13 High Transparent Red 14-20 Orange 21-27 Light Green...
- Page 23 Infinity iS-100 Channel 12 – Static Gobo-wheel + Gobo Shake Open / White 7-13 Gobo 1 14-20 Gobo 2 21-27 Gobo 3 28-34 Gobo 4 35-41 Gobo 5 42-48 Gobo 6 49-55 Gobo 7 56-63 Gobo 8 64-71 Gobo Shake 8 from slow to fast...
- Page 24 Infinity iS-100 Channel 15 – Iris 0-63 Iris from big to small 64-127 Auto Zoom from slow to fast 128-191 Zoom in slowly, zoom out fast 192-255 Zoom in fast, zoom out slowly Channel 16 – Focus 0-255 Continuous adjustment from far to near Channel 17 –...
- Page 25 Infinity iS-100 Channel 18 – Built-in Programs No Function 8-15 Built-in Program 1 16-23 Built-in Program 2 24-31 Built-in Program 3 32-39 Built-in Program 4 40-47 Built-in Program 5 48-55 Built-in Program 6 56-63 Built-in Program 7 64-71 Built-in Program 8...
-
Page 26: Channels (Basic)
Infinity iS-100 16 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 27 Infinity iS-100 Channel 09 – Rotating Gobo-wheel + Gobo Shake Open / White 8-15 Gobo 1 (Glass) 16-23 Gobo 2 (Glass) 24-31 Gobo 3 (Metal) 32-39 Gobo 4 (Metal) 40-47 Gobo 5 (Metal) 48-55 Gobo 6 (Metal) 56-63 Gobo 7 (Glass)
-
Page 28: Channel Settings
Infinity iS-100 Channel 13 – Prism rotation 0-127 Prism-indexing 128-189 Clockwise rotation (CW) from fast to slow 190-193 Stop 194-255 Counter-clockwise rotation (CCW) from slow to fast Channel 14– Iris 0-63 Iris from big to small 64-127 Auto Zoom from slow to fast... -
Page 29: Maintenance
Infinity iS-100 Maintenance The Infinity iS-100 LED Spot requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. - Page 30 Infinity iS-100 Fig. 08 03) Loosen the service lid of the housing, by sliding it to the bottom. 04) Gently tilt the head so the small metal housing will slide out more easy. 05) Turn the gobo wheel, with the gobo you want to remove, to the upside.
- Page 31 Infinity iS-100 Colorwheel 1 Fig. 10 Rotating Gobo-wheel Static Gobo-wheel Fig. 11 Fig. 12 Ordercode: 41500...
-
Page 32: Battery Replacement
(must be carried out by a qualified technician!) 01) Unplug the unit from the electric power source. 02) Remove the 6 screws on the front side of the Infinity. 03) Gently pull the front cover from the device. 04) Disconnect the plug from the PCB. -
Page 33: Troubleshooting
05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 34 Infinity iS-100 Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures are cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. ● Fixtures reset The controller is not connected.
-
Page 35: Product Specification
Infinity iS-100 Product Specification Model: Infinity iS-100 LED Spot Input Voltage: 100-240 VAC Continuous Power: 220W max. at full output Fuse: F5AL / 250V Dimensions: 304 x 366 x 485 mm (LxWxH) Weight: 16,5 kg Operation and Programming Signal pin OUT:... - Page 36 Infinity iS-100 Gobos Colourwheel: heat-resistant and intensify glass; dichroic glas coating Max. ambient temperature t 40°C; Max. housing temperature t : 80°C Motor: high quality stepping-motor controlled by microprocessors Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1.3m...
-
Page 37: Dimensions
Infinity iS-100 Dimensions Ordercode: 41500... - Page 38 Infinity iS-100 Ordercode: 41500...
- Page 39 Infinity iS-100 Ordercode: 41500...
- Page 40 ©2016 Infinity...
