Infinity iFX-615 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANUAL
ENGLISH
Infinity iFX-615
V2
Ordercode: 41551
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iFX-615 and is the answer not in the manual?

Questions and answers

Related Manuals for Infinity iFX-615

Summary of Contents for Infinity iFX-615

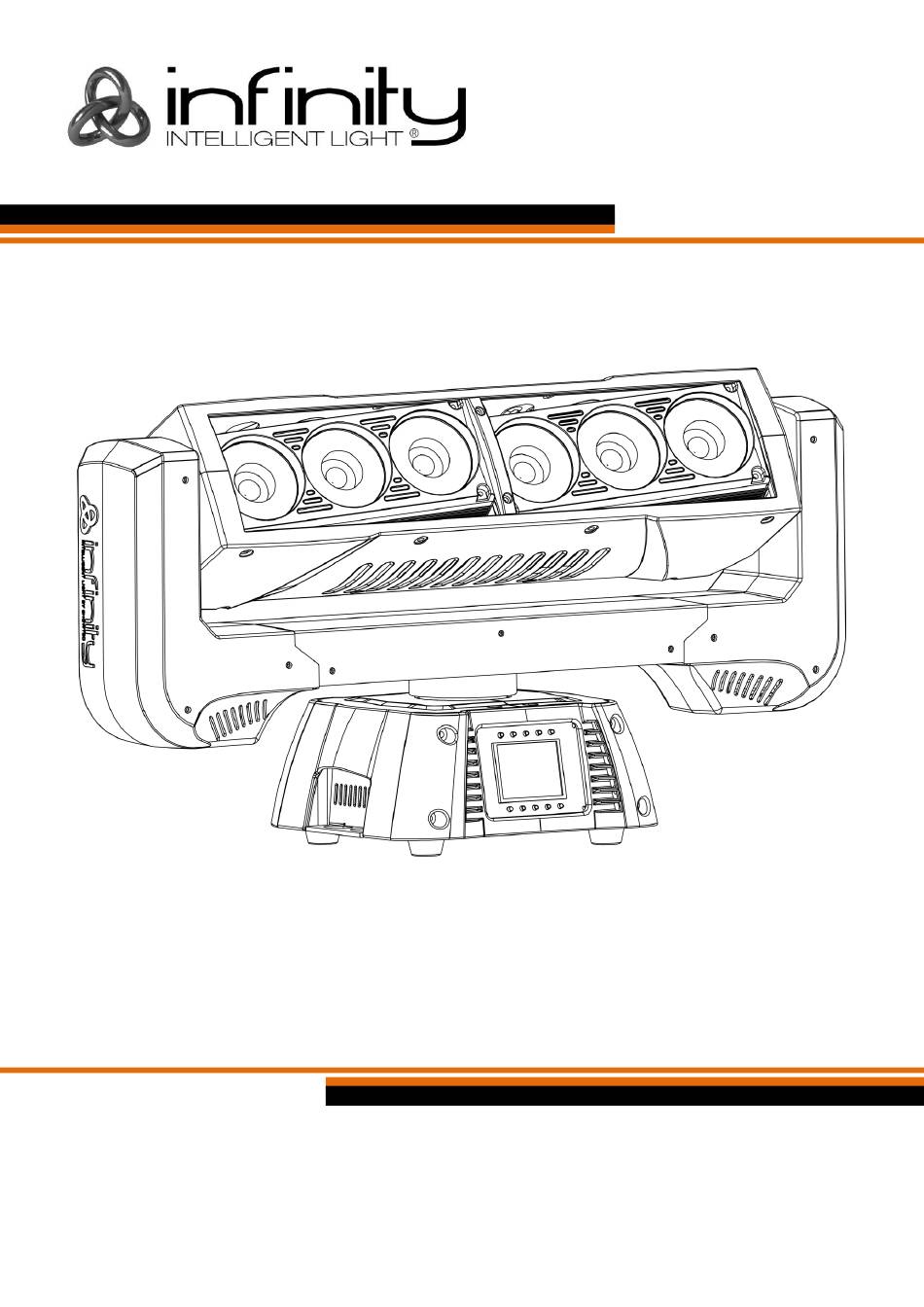

  • Page 1 MANUAL ENGLISH Infinity iFX-615 Ordercode: 41551 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Frontside..................................7 Backside ..................................8 Installation ................................... 8 Set Up and Operation ............................... 8 Control Modes ................................9 One Infinity (Stand-alone) ............................9 Multiple Infinitys (Master/Slave control) ......................... 9 Multiple Infinitys (DMX control) ..........................10 Fixture Linking ................................11 Data Cabling ................................11 Control Panel ................................12...

  • Page 3: Warning

    Infinity iFX-615 Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 4  If your Infinity device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Infinity dealer for service.

  • Page 5: Operating Determinations

    When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation site is secured and that there are not any unauthorized people around. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a mounting bracket, a clamp and quick-locks.

  • Page 6: Connection With The Mains

    Infinity iFX-615 Mounting a clamp to the bottom side of the Infinity moving head Improper installation can cause serious injuries and/of damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.

  • Page 7: Return Procedure

    Infinity iFX-615 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 8: Description Of The Device

    Infinity iFX-615 Description of the device Features The Infinity iFX-615 is a moving head effect with high output and great effects.  Input voltage: 100-240V AC, 60/50Hz  Power consumption: 160W  Light source: 6 x 15W RGBW 4-in-1 Osram Ostar ...

  • Page 9: Backside

    08) Pro power connector 100-240V IN Installation Remove all packing materials from the Infinity iFX-615. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 10: Control Modes

    03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. Please see pages 14-19 for more information about the Stand-alone mode.

  • Page 11: Multiple Infinitys (Dmx Control)

    02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Infinity and other devices. 04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"...

  • Page 12: Fixture Linking

    Infinity iFX-615 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

  • Page 13: Control Panel

    When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+49=50 (050); the DMX address of the third Infinity should be 50+49=99 (099), etc.

  • Page 14: Menu Overview

    Infinity iFX-615 Menu Overview Ordercode: 41551...

  • Page 15: Main Menu Options

    Infinity iFX-615 Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address.

  • Page 16: Edit Mode

    Infinity iFX-615 2. Edit Mode With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button, to confirm. You can choose one of the 3 available modes. 03) Press the...

  • Page 17: Color Balance

    Infinity iFX-615 05) Press the buttons to change the value from NO to YES. 06) Some of the available menus have different options to the regular, YES or NO function:  Pan Angle: 540°, 360°, 180°  Tilt Angle: 270°, 180°, 90°...

  • Page 18: Reset

    Infinity iFX-615 3.3. Reset With this menu you can reset the device’s settings. 01) In Settings menu, press the buttons to select Reset Function and press the button to open the menu. 02) Press the buttons to choose one of the 2 options: ...

  • Page 19: Test Menu

    Infinity iFX-615 5. Test Menu With this menu you can test the device’s functions. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) Press the buttons to choose one of the 2 modes: ...

  • Page 20: System Information

    Infinity iFX-615 6. System information With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) The following screen will pop up: 04) You can now monitor the device’s current software version, current active mode, current DMX starting address, current temperature, total operation time counter and time counter.
  • Page 21 Infinity iFX-615 Channel 8 – Red (Cyan) Dimmer and shutter must be open 0-255 Gradual adjustment Red, from dark to brightest Channel 9 – Green (Magenta) Dimmer and shutter must be open 0-255 Gradual adjustment Green, from dark to brightest Channel 10 –...
  • Page 22 Infinity iFX-615 Channel 14 – LED control Dimmer and shutter, CH8-CH11 or CH13 must be open Not functional 10-13 LED 1 ON 14-17 LED 2 ON 18-21 LED 3 ON 22-25 LED 4 ON 26-29 LED 5 ON 30-33 LED 6 ON...
  • Page 23 Infinity iFX-615 166-169 LEDs 1, 2 ,3, 5 ON 170-173 LEDs 2, 3, 4, 6 ON 174-177 LEDs 1, 3, 4, 5 ON 178-181 LEDs 2, 4, 5, 6 ON 182-185 LEDs 1, 3, 5, 6 ON 186-189 LEDs 1, 2, 4, 6 ON...
  • Page 24 Infinity iFX-615 Channel 17 – LED fade speed CH15 must be set between 16-255 0-255 From fast to slow Channel 18 – Background Color Macros CH19 must be open and shutter must be open Not functional White 2700K White 3200K...
  • Page 25 Infinity iFX-615 Channel 22 – Head 1 Pan 0-255 Gradual head 1 pan, between 0-28° Channel 23 – Head 2 Pan 0-255 Gradual head 2 pan, between 0-28° Channel 24 – Functions Not functional 10-14 Not functional 15-19 Not functional...

  • Page 26: Channels

    Infinity iFX-615 49 channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 27 Infinity iFX-615 Channel 12 – Red (Cyan) LED 1 Dimmer and shutter must be open 0-255 Gradual adjustment Red, from dark to brightest Channel 13 – Green (Magenta) LED 1 Dimmer and shutter must be open 0-255 Gradual adjustment Green, from dark to brightest Channel 14 –...
  • Page 28 Infinity iFX-615 Channel 36 – Color temperature (CTC) Dimmer, shutter and CH8-CH35 must be open Not functional 1-255 Color temperature, from 19000K to 2700K Channel 37 – Color Macros Dimmer and shutter must be open Not functional White 2700K White 3200K...
  • Page 29 Infinity iFX-615 Channel 38 – LED control Dimmer and shutter, CH8-CH35 or CH37 must be open Not functional 10-13 LED 1 ON 14-17 LED 2 ON 18-21 LED 3 ON 22-25 LED 4 ON 26-29 LED 5 ON 30-33 LED 6 ON...
  • Page 30 Infinity iFX-615 166-169 LEDs 1, 2 ,3, 5 ON 170-173 LEDs 2, 3, 4, 6 ON 174-177 LEDs 1, 3, 4, 5 ON 178-181 LEDs 2, 4, 5, 6 ON 182-185 LEDs 1, 3, 5, 6 ON 186-189 LEDs 1, 2, 4, 6 ON...
  • Page 31 Infinity iFX-615 Channel 41 – LED fade speed CH39 must be set between 16-255 0-255 From fast to slow Channel 42 – Background Color Macros CH43 must be open and shutter must be open Not functional White 2700K White 3200K...
  • Page 32 Infinity iFX-615 Channel 46 – Head 1 Pan 0-255 Gradual head 1 pan, between 0-28° Channel 47 – Head 2 Pan 0-255 Gradual head 2 pan, between 0-28° Channel 48 – Functions Not functional 10-14 Not functional 15-19 Not functional...

  • Page 33: Maintenance

    04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void.

  • Page 34: No Response To Dmx

    Infinity iFX-615 No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.

  • Page 35: Product Specifications

    Infinity iFX-615 Product Specifications Model: Infinity iFX-615 Input voltage: 100-240V AC, 60/50Hz Power consumption: 160W DMX linking: 30pcs Fuse: F4AL/250V Dimensions: 590 x 200 x 320 mm (LxWxH) Weight: 10,7 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+)

  • Page 36: Dimensions

    Infinity iFX-615 Dimensions Ordercode: 41551...

  • Page 37: Notes

    Infinity iFX-615 Notes Ordercode: 41551...
  • Page 38 Infinity iFX-615 Ordercode: 41551...
  • Page 39 Infinity iFX-615 Ordercode: 41551...
  • Page 40 ©2016 Infinity...
