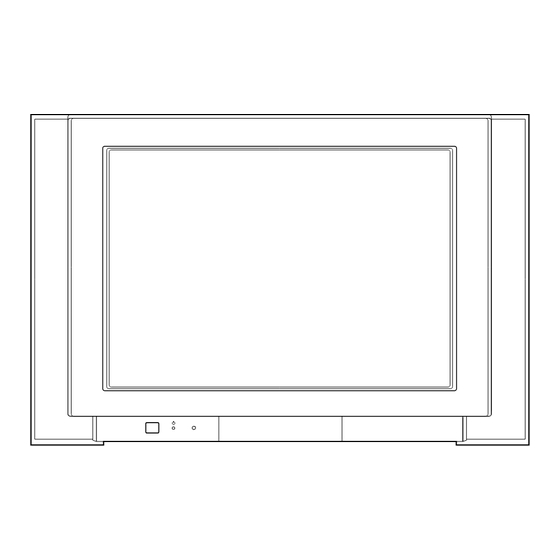

LG 21FA3AL/RL Service Manual

Hide thumbs Also See for 21FA3AL/RL:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
COLOR TV
SERVICE MANUAL
CHASSIS : MC-059B
MODEL: 21FA3AL/RL
MODEL:
21FA3AL/RL-TH
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

Advertisement

Table of Contents
loading

Summary of Contents for LG 21FA3AL/RL

  • Page 1 All manuals and user guides at all-guides.com website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html COLOR TV SERVICE MANUAL CHASSIS : MC-059B MODEL: 21FA3AL/RL MODEL: 21FA3AL/RL-TH CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS CONTENTS ......................2 SAFETY PRECAUTIONS..................3 DESCRIPTION OF CONTROLS...............4 SPECIFICATIONS ....................6 ADJUSTMENT......................8 PRINTED CIRCUIT BOARD ................13 TROUBLE SHOOTING ..................14 BLOCK DIAGRAM ....................18 EXPLODED VIEW....................20 EXPLODED VIEW PARTS LIST ..............21 REPLACEMENT PARTS LIST ............... 22 - 2 -...
  • Page 3: Safety Precautions

    All manuals and user guides at all-guides.com SAFETY PRECAUTIONS IMPORT ANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
  • Page 4: Description Of Controls

    All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS All the functions can be controlled with the remote control handset. Some functions can also be adjusted with the buttons on the front panel of the set. Remote control handset Before you use the remote control handset, please install the bat- teries.
  • Page 5 All manuals and user guides at all-guides.com 10. MUTE switches the sound on or off. 11. TV/AV selects TV or AV mode. switches the set on from standby. 12. I/II/ (option) selects the language during dual language broadcast. (option) selects the sound output. 13.
  • Page 6: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS Note : Specification and others are subject to change without notice for improvement. Scope 4) Specification and performance of each parts are followed each drawing and specification by part number in This specification can be applied to all the television related to accordance with BOM.
  • Page 7 Front Local Key Power, Vol( ), PR( ), MENU, OK 7EA/ Front Turbo-Picture, Sound Option Remocon LG Code (NEC) Channel Auto prog. System/ Storage/ Normal/ Turbo Manual Storage/ System/ Channel/ Fine/ Search/ Name Prog. edit Copy/ Move/ Delete/ Skip Favorite...
  • Page 8: Adjustment

    (When adhering DY, use the electric driver of which turning force is lower than 10Kg/Cm) <Fig. 2> 3-2. Adjustment Preparation 1) Input LG standard signal into 75Ω antenna terminal (or <Fig. 2> PAL-B/G 05CH) 2) Connect the digital multi-meter to terminal(with Hole/ 5-2.
  • Page 9 All manuals and user guides at all-guides.com (4) Dynamic Convergence (DYC) Adjustment (*In case there is excess RED color, adjust it using the VOLUME - key of the remote control until the RED color 1) Vertical Line Adjustment : Adjust by moving DY right and disappear.) left Color temperature : 12000°K...
  • Page 10 All manuals and user guides at all-guides.com 8. SUB-BRIGHTNESS Adjustment 11. Instrument setting data Prior to this adjustment, the White balance adjustment (automatic adjustment) should be finished. <TABLE 2> VIDEO IC EEPROM Speed Delay 8-1. Adjustment Preparation SLave ADD 1) Receive the PAL B/G 5CH signal into RF mode regardless of channel.
  • Page 11 All manuals and user guides at all-guides.com <TABLE 1> Adjustment Range Initial setting Remark Menu Necessary VP 0 RF AGC RF AGC Delay 0 ~ 63 VP 1 H POS H PHASE 0 ~ 31 Necessary V POS V Shift (V POSI) 0 ~ 15 Necessary VP 2...
  • Page 12 All manuals and user guides at all-guides.com Menu Adjustment Range Initial setting Remark VP 54 Y TH Y TH 0 ~ 3 Unnecessary VP 55 Y GAIN Y Gain 0 ~ 3 Unnecessary VP 56 R WIDTH R width 0 ~ 3 Unnecessary VP 57 R OFFSET...
  • Page 13: Printed Circuit Board

    All manuals and user guides at all-guides.com PRINTED CIRCUIT BOARD MAIN - 13 -...
  • Page 14: Trouble Shooting

    All manuals and user guides at all-guides.com TROUBLE SHOOTING 1. TV FUNCTIONAL 2. TU / IF SECTION 3. VIDEO PROCESSING In case of influx NOISE - R/C is not operate Maneuver defectiveness Maneuver defectiveness Maneuver defectiveness - 14 -...
  • Page 15 All manuals and user guides at all-guides.com 4. SMPS PRIMARY SECTION 5. SMPS SECONDARY SECTION - 15 -...
  • Page 16 All manuals and user guides at all-guides.com 6. VERTICAL SECTION 7. HORIZONTAL SECTION - 16 -...
  • Page 17 All manuals and user guides at all-guides.com 8. SOUND PROCESSING SECTION 9. CPT DRIVE SECTION - 17 -...
  • Page 18: Block Diagram

    All manuals and user guides at all-guides.com BLOCK DIAGRAM - 18 -...
  • Page 19 All manuals and user guides at all-guides.com MEMO - 19 -...
  • Page 20: Exploded View

    All manuals and user guides at all-guides.com EXPLODED VIEW P801 - 20 -...
  • Page 21: Exploded View Parts List

    All manuals and user guides at all-guides.com The components identified by mark critical for safety. EXPLODED VIEW PARTS LIST Replace only with part number specified. LOCA. NO PARTS No. DESCRIPTIONS 6335921006E CPT ASSEMBLY, A51QDJ420X 75 P(+0.10G) 0G 21INCH AK MASK GREEN DY 120-C77M SPEAKER,FULLRANGE C122P02K1459 8 OHM 10/15W 130DB 57*117MM 4810V00088B...
  • Page 22: Replacement Parts List

    All manuals and user guides at all-guides.com REPLACEMENT PARTS LIST For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film in the P/No. means as follows; CE : Electrolytic RN : Metal Film RF : Fusible...
  • Page 23 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
  • Page 24 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
  • Page 25 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
  • Page 26 All manuals and user guides at all-guides.com For Capacitor & Resistors, CC, CX, CK, CN : Ceramic RD : Carbon Film the charactors at 2nd and 3rd CQ : Polyestor RS : Metal Oxide Film digit in the P/No. means as CE : Electrolytic RN : Metal Film follows;...
  • Page 27 All manuals and user guides at all-guides.com LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION FILTER & CRYSTAL FB801 125-022K FERRITE AXIAL 62MM 1UH NY 3.5X6.0MM FB801 125-022R BI3857 FEELUX 5.7X3.6MM AXIAL 26MM L804 125-022K FERRITE AXIAL 62MM 1UH NY 3.5X6.0MM L804 125-022R BI3857 FEELUX 5.7X3.6MM AXIAL 26MM...
  • Page 28 All manuals and user guides at all-guides.com P/NO: 3854VA0196B - S1 2005.8.16...
  • Page 29 All manuals and user guides at all-guides.com SVC. SHEET : 3854V A0196B-S...
  • Page 30 All manuals and user guides at all-guides.com Sep., 2005 P/NO : 3828VD0235P Printed in Korea...
