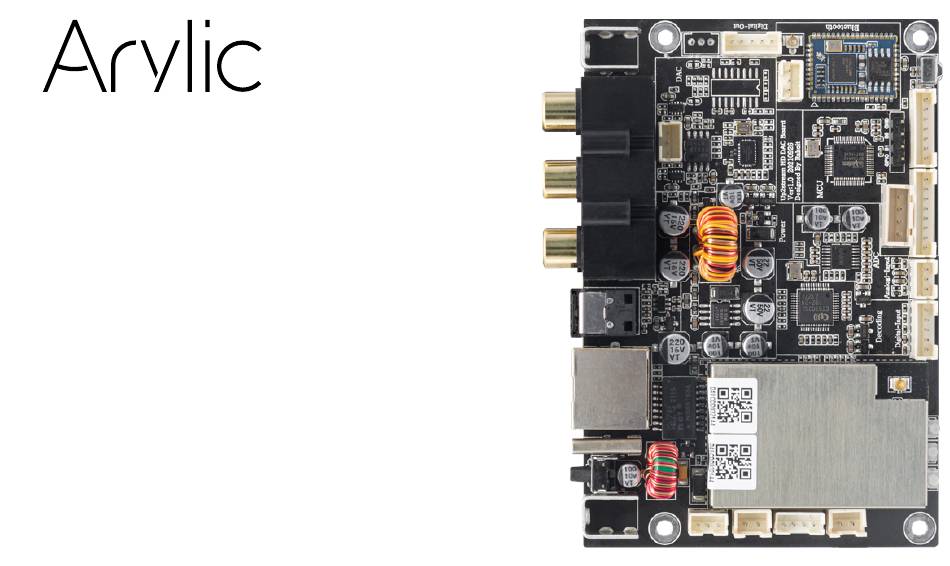

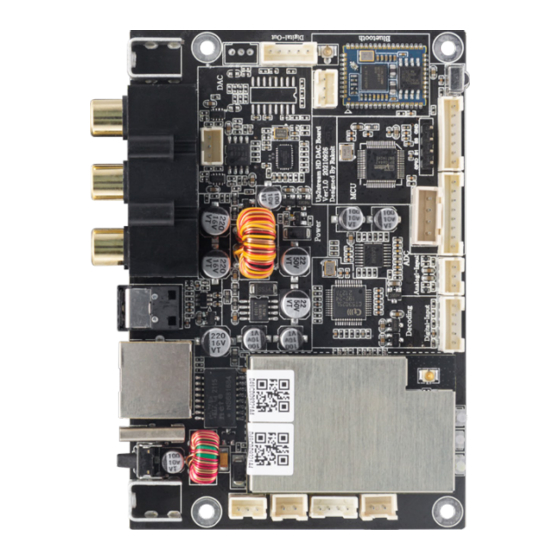

- Page 1 Up2Stream HD DAC High-Res Wireless Audio Streaming Board User Manual...
-
Page 3: What's In The Box
DLNA protocols. Up2Stream HD DAC is capable to stream and output high quality music in sample rate up to 192kHz/24bit. Up2Stream HD DAC has both analog and digital input and output, it is perfect to use to build your own high-res wireless audio system. -
Page 4: Main Features
3. Main Features Streaming music via network without distance limitation or Bluetooth 5.0 up to 15 meters. Airplay2, Spotify connect, Tidal connect, Qplay, DLNA, UPnP streaming protocols supported. Support streaming source from online services, smart device, USB pen drive, NAS, Bluetooth, analog and digital input. Multiroom and multizone streaming enabled by multiple units connected in same network. -
Page 5: Specification
4. Specification USB Type-C/DC Input DC 5V/2A Analog Audio Output DAC: 9038Q2M SPDIF Optical, Coaxial Digital Audio Output 1:1 Upto 24bit / 192kHz Ethernet RJ45 LED Indicator 3xLED, Input source status (WiFi/BT/audio input) I/O Interface Short press to change input mode, Press 2 times toreset WiFi/BT, Reset Button Press 3 times to restore factory settings,... - Page 6 4Stream Android and iOS APP iTunes For MAC & Windows PC Application Foobar2000 and other support For MAC & Windows PC UPnP, DLNA 3rd party program Spotify, Deezer, Amazon music, Deezer, TuneIn, Online Music Streaming Tidal, Qobuz, Napster, iHeartRadio, QQ Music, Services QQFM Audio Source...
- Page 7 5. Interface...
- Page 8 5. Interface 1. Mode button: Short press: Switch input mode Short press twice: Reset WiFi or Bluetooth connection in WiFi or Bluetooth mode Short press three times: Restore to factory settings Long press: Turn device on/off *When device is off, short press to turn on the device 2.
- Page 9 12. Display Panel Pin: For connection to external Display Panel board. 13. AUX input: Analog input Pins for connection to external audio source. 14. Digital input: Digital input Pins for connection to external audio source. 15. LED: White for WiFi, Blue for Bluetooth, Red for Digital and Analog input. 16.
- Page 10 7. Button board Connection Diagram MODE 100R PLAY/ PAUSE 0.1uF HD DAC NEXT 2.2K DGND PREY 3.6K VOL+ 5.6K VOL- 8.2K MUTE NUM 1 NUM 2 NUM 3 NUM 4 100K External button board connection diagram...
-
Page 11: How To Use
8. How to use 8.1 App download Download the 4STREAM application from App Store for iOS based devices and Google Play Store for Android based devices. The application supports English, Spanish, French, German, Italian, Portugese, Korean, Simplified Chinese, Traditional Chinese and Japanese. 8.2 Connection 8.2.1 First time usage &... - Page 12 Mode * If you change to another router, or the password of the connected router has been changed, please long press button for 5 secs in WiFi mode to reset the connection. Mode * Hold button then plug in the power can force the device to enter WiFi mode. If you have setup router connection before, the device will auto connect to that router.
- Page 13 8.2.2 Connection via LAN Plug in the wired cable to the RJ45 Ethernet, the device will show on the app in about 10 seconds. (Note: The mobile phone and the device must be in the same network) 8.2.3 Bluethooth To use Bluetooth, please swtich to bluetooth via app or by remote controller, then find bluetooth device...
- Page 14 8.3 App Features 8.3.1 Device Setting Rename: Change the device name. Speaker Info: Display device information like IP address, Mac address, SSID, firmware version, factory reset, etc. Alarm Clock: Setup up to 4 different alarm clocks with music of your choice.
- Page 15 8.3.3 To Play Music From NAS Please note that our system only support NAS with DLNA feature. 8.3.4 To Play Bluetooth Mode Choose the Bluetooth mode on the application or remote control, the LED will change to blue. Open the Bluetooth on your mobile device. Pair the device Bluetooth (Up2stream HD) and play.
- Page 16 8.4 Streaming Services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform.
- Page 17 8.4.1 Spotify To use Spotify, you have to own spotify premium account. You will find the device in the device list on the Spotify application and choose the device you want to play. NOTE: One Spotify account can only streaming to one device at a time.
- Page 18 8.5 Multiroom and Multizone Users can group multiple rooms and zones on the application. 1 Master For example, you can group devices 1, 2 and 3 to play the same music in sync, or group devices 1 and 2 as zone A and devices 3 and 4 as zone B, Slave and play different music in zones A and B.
- Page 19 8.6 Left and Right Channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. 8.7 Preset There are 6 buttons on the remote control, users can preset play lists...
- Page 20 9. Play on PC There are Several Tools to Play Music from the PC 9.1 To Play Music From iTunes on Mac and Windows PC Our devices can stream audio sources from local storage, media library in Mac and Windows PC and online services from iTunes.
- Page 21 9.2 To Play Music From Windows PC via Foobar2000 Our Devices Support UPnP Protocol, With the Popular Foobar2000, You can Play Music from Windows PC to Our Devices. Please follow the steps below: 1. Download the Foobar2000 and install it. 2.
- Page 22 Q: Do your devices support airplay2 and third-party DLNA apps? A: Yes. They support airplay2 and third - party apps like foobar2000, musicbee Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal.
- Page 24 The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed.
