Summary of Contents for Oceasoft Emerald

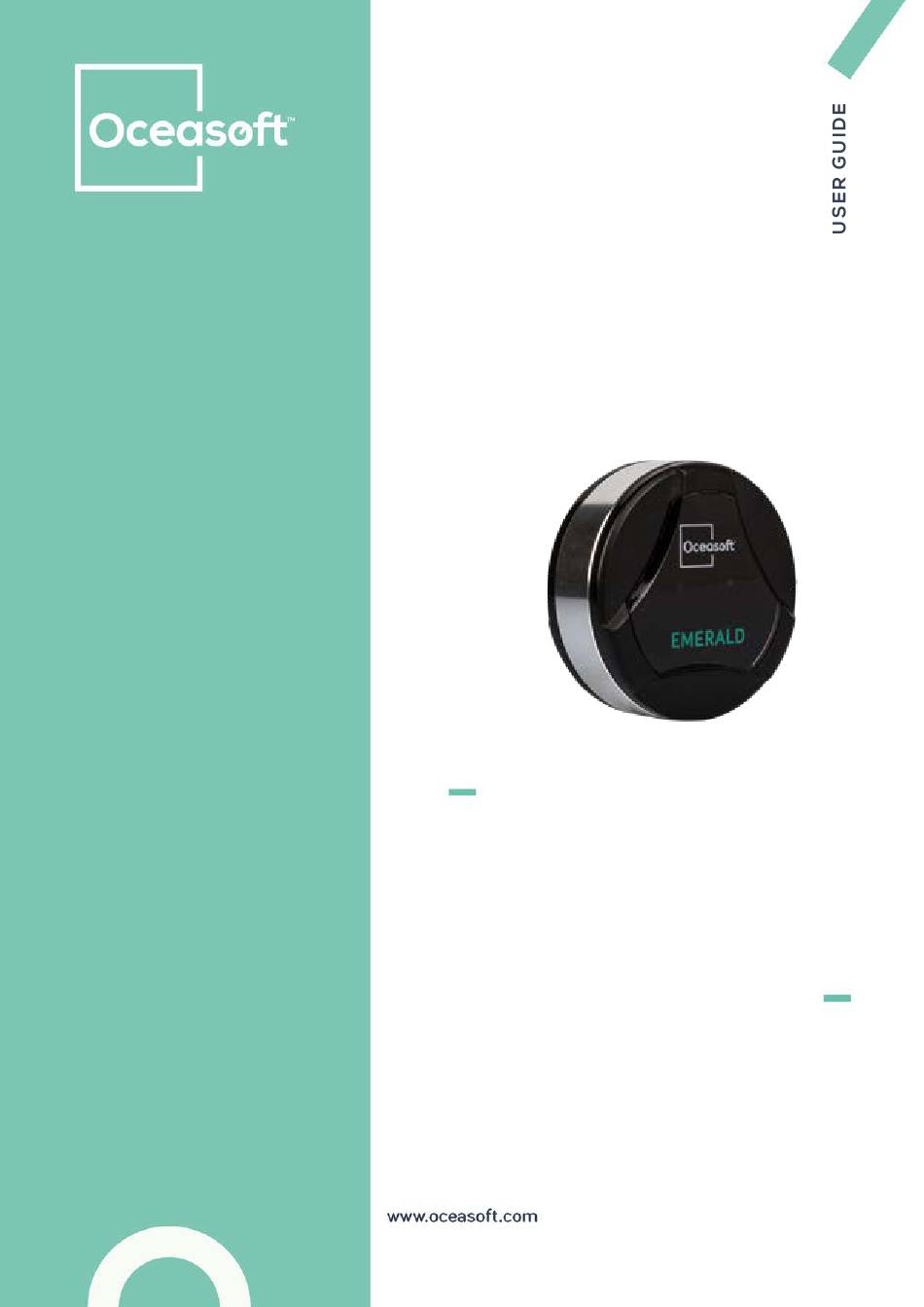

- Page 1 Emerald Temperature datalogger...
- Page 2 Notices and safety Disclaimer and limitation of liability OCEASOFT assumes no responsibility for any loss or claims by third parties which may arise through the use of this product. In particular, users must not use the product in any manner not specifically indicated by OCEASOFT.
- Page 3 This device must accept any interference received, including interference that may cause undesired operation. FCC Caution Any changes or modifications to this equipment not expressly approved by OCEASOFT may cause, harmful interference and void the FCC authorization to operate this equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
- Page 4 This wireless device complies with the essential requirements and other relevant provisions of the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE Directive). Environmental protection Please respect local regulations concerning disposal of packaging, unused wireless devices and their accessories, and promote their recycling. OCEASOFT Emerald User Guide Page 4...
- Page 5 © 2017 OCEASOFT S.A. All rights reserved. OCEASOFT, the OCEASOFT logo, OCEASOFT Emerald, OCEABridge, and OCEAView are the exclusive property of OCEASOFT. iPhone and iPad are trademarks of Apple, Inc., registered in the U.S and other countries. Android is a trademark of Google Inc.
-
Page 6: Table Of Contents
1.7.3 Casing & dimensions .................... 10 1.7.4 Operating and storage conditions ............... 11 1.7.5 Battery ........................11 2 Inserting the battery into your Emerald module ..........12 3 Using your Emerald module ................13 3.1 Using the Emerald magnet ..................13 3.1.1 Mounting Emerald with the magnet.............. -
Page 7: Introduction
Emerald records ambient temperature at regular intervals and stores the information in its memory. Emerald features a replaceable battery, and may be used multiple times. By using OCEASOFT Emerald with specially designed companion products, you can benefit from a flexible temperature monitoring solution that adapts to many usage scenarios, from low-to very high-volume needs. -
Page 8: Companion Products
Introduction 1.3 Companion products The Emerald datalogger is designed to work with several different types of companion products from OCEASOFT, in particular, depending on the volume of modules you intend to use, and whether or not you wish to use the OCEACloud online tools. -
Page 9: Process Summary
Introduction 1.4 Process summary Here is a sample overview of the tracking process using Emerald dataloggers. Figure 1: End-to-end cycle from packaging to data on OCEACloud 1.5 Placing your Emerald module Emerald™ is designed to be placed directly inside the product package or container whose temperature you would like to monitor. -
Page 10: Emerald Features
ABS / Aluminum casing Unique serial number for every module • • Dimensions Diameter: 50 mm (2 in.) D: 22 mm (0.87 in.) • Weight: 57 g (2.0 oz.) Magnet / screws mount • OCEASOFT Emerald User Guide Page 10... -
Page 11: Operating And Storage Conditions
• benefit from a full year of operation we recommend storing Emerald modules between about 20°C and 30°C (68°F and 86°F). See Appendix 1 – Emerald battery life pg 17, for estimated operating and storage times OCEASOFT Emerald User Guide... -
Page 12: Inserting The Battery Into Your Emerald Module
Replace screws (turning Your module is now them clockwise). Ensure ready to use. that the rubber seal is well seated. Figure 2: Inserting the battery in your Emerald -40°C / +85°C module OCEASOFT Emerald User Guide Page 12... -
Page 13: Using Your Emerald Module
LED light. 3.1 Using the Emerald magnet Emerald includes a magnet that can be used both for mounting the module onto a magnetic surface or to trigger actions (disabling Flight mode, checking the status of a mission). -
Page 14: Programming Your Module With Oceaview Mobile
3.2 Programming your module with OCEAView Mobile Inserting the battery into your module enables Bluetooth connectivity. The LED blinks blue and the Emerald may be discovered by OCEAView Mobile. When within wireless range, you will see the device listed in the OCEAView Mobile display, at which point you may connect to it to configure a mission. -
Page 15: Using The Led To Check Module Status
Using your Emerald module 3.2.1 Using the LED to check module status The color LED on the front of the Emerald module indicates module status. The LED on Emerald modules is activated by passing the magnet in front of the module, offering... -
Page 16: Maintaining Your Modules
Maintaining your modules 4 Maintaining your modules 4.1 Cleaning Instructions You occasionally may need to clean your Emerald modules depending on site or environmental conditions. Here are some recommendations and guidelines for cleaning your modules: • Clean using a soft cloth with water, a detergent or isopropanol. -
Page 17: Appendix 1 - Emerald Battery Life
Appendix 1 – Emerald battery life 5 Appendix 1 – Emerald battery life Many factors have an influence on Emerald battery life, both during use and in storage before being used. Here are the main considerations to take into account when evaluating product battery life: •... -
Page 18: Estimated Operating Lifetime
Appendix 1 – Emerald battery life 5.2 Estimated operating lifetime The chart below shows estimated battery life (in weeks) at various temperatures, with the temperature representing the module’s operating (ambient) temperature. This information is based on: Storage for 1 year before first use •... -
Page 19: Appendix 2 - Eu Declaration Of Conformity
Appendix 2 – EU Declaration of Conformity 6 Appendix 2 – EU Declaration of Conformity OCEASOFT Emerald User Guide Page 19... - Page 20 Appendix 2 – EU Declaration of Conformity OCEASOFT Emerald User Guide Page 20 USER GUIDE...
