American Hearth ALS-24cr2-1 Installation Instructions And Owner's Manual

Log set for unvented gas log heater or vented decorative applianc
Hide thumbs Also See for ALS-24cr2-1:
Table of Contents

Advertisement

Quick Links

Download this manual

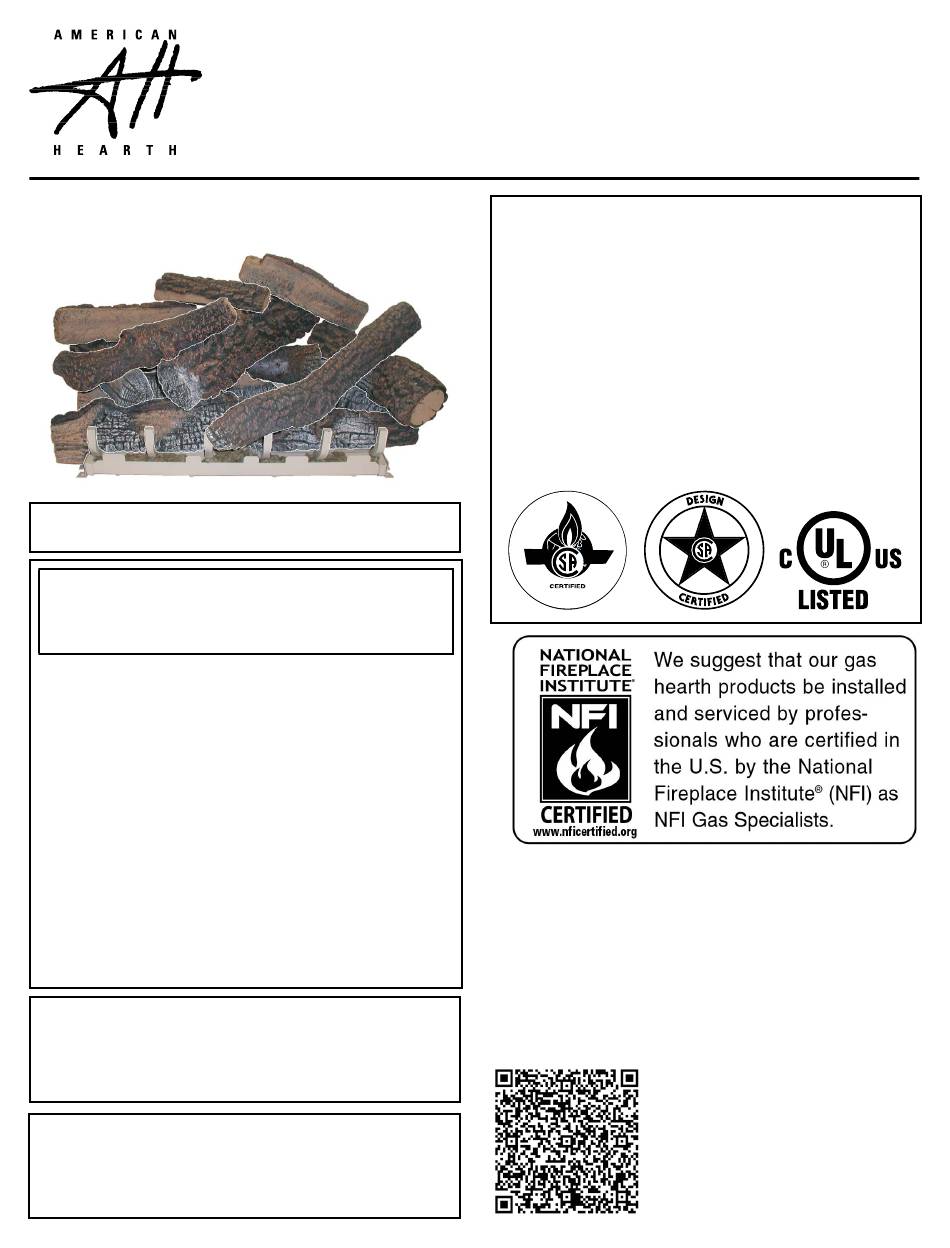

WILLIAMSBURG
f i r e - p a r t s . c o m
Installer:
Leave this manual with the appliance.
consumer: retain this manual for future reference.
wArNINg: If the information in these instructions
are not followed exactly, a fire or explosion may re-
sult causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— wHAT TO DO If YOu SMeLL gAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
Log sets comply with ANSI Z21.11.2 unvented Heaters
and also comply with ANSI Z21.60 Decorative Vented
Appliances for Solid fuel Burning fireplaces. State or
local codes may only allow operation of log sets in a
vented configuration. Check your state or local codes.
wArNINg: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
INSTALLATION INSTrucTIONS
AND OwNer'S MANuAL
LOg SeT fOr uNVeNTeD
gAS LOg HeATer
VeNTeD DecOrATIVe APPLIANce
MODeLS
ALS-18cr2-2
ALS-24cr2-1
ALS-30cr2-1
The QR Code below provides a link to our helpful "how-
to" video. To get started, scan the code with your smart
phone or tablet.
Or
GAS-FIRED
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALS-24cr2-1 and is the answer not in the manual?

Questions and answers

Related Manuals for American Hearth ALS-24cr2-1

Summary of Contents for American Hearth ALS-24cr2-1

  • Page 1 WILLIAMSBURG LOg SeT fOr uNVeNTeD gAS LOg HeATer VeNTeD DecOrATIVe APPLIANce MODeLS ALS-18cr2-2 ALS-24cr2-1 ALS-30cr2-1 GAS-FIRED f i r e - p a r t s . c o m Installer: Leave this manual with the appliance. consumer: retain this manual for future reference.

  • Page 2: Table Of Contents

    Parts List & Parts View ................ 17 Placement of Glowing Embers ALS-18CR2-2 ......18 - 19 Placement of Glowing Embers ALS-24CR2-1 ......20 - 21 Placement of Glowing Embers ALS-30CR2-1 ......22 - 23 Placement of Glowing Embers ............. 24 f i r e - p a r t s .

  • Page 3: Important Installation Guidelines

    IMPORTANT INSTALLATION GUIDELINES Proper Log Placement any cold air returns or vents in the proximity of the log set. Log placement is critical to proper burner performance. Logs Any draft created around a vent-free log set can cause the must be correctly positioned onto the burner. The photos in flame to impinge on the log and create a sooting situation.

  • Page 4: Requirements For Canada

    reQuIreMeNTS fOr cANADA wArNINg; DO NOT OPerATe THIS gAS LOg SeT This unit cannot be installed in an UNVENTED application, wITH gLASS DOOrS cLOSeD this unit can only be installed in a VENTED application with these requirements. • Clothing or other flammable material should not be placed on or near the appliance.

  • Page 5: Log Placement

    LOG PLACEMENT Before you begin: Do not handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash your hands gently with soap and water. All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance.
  • Page 6 LOG PLACEMENT 2. Place rear left (B) log between rear log support and front left log (A) f i r e - p a r t s . c o m frONT VIew TOP VIew Scan this code to see the log assembly video. Page 6 24559-4-1013...
  • Page 7 LOG PLACEMENT 3. Place rear right (C) log between rear log support and burner pan, resting on right side of burner pan. f i r e - p a r t s . c o m frONT VIew TOP VIew Scan this code to see the log assembly video.
  • Page 8 LOG PLACEMENT 4. Place front right (D) log onto pins on burner pan. f i r e - p a r t s . c o m frONT VIew TOP VIew Scan this code to see the log assembly video. Page 8 24559-4-1013...
  • Page 9 LOG PLACEMENT 5. Place rear center (E) log onto left pin of rear log support. f i r e - p a r t s . c o m frONT VIew TOP VIew Scan this code to see the log assembly video. 24559-4-1013 Page 9...
  • Page 10 LOG PLACEMENT 6. Place boss on middle left (F) log into recess on rear left (B) log and front left (A) log. 7. Place middle right (G) log onto the right pin of rear log support and resting on rear right (C) log. f i r e - p a r t s .
  • Page 11 LOG PLACEMENT 8. Insert boss on upper, middle right (H) log into recess on middle right (G) log and resting on front grate bar 9. Place square recess in upper, middle left (J) log onto square boss on middle left (F) log and round recess in upper middle left (J) log onto boss on rear center (E) log.
  • Page 12 LOG PLACEMENT Place recess in middle center (I) log onto boss on rear center (E) log and resting on front left (A) log. f i r e - p a r t s . c o m frONT VIew Scan this code to see the log assembly video. TOP VIew Page 12 24559-4-1013...
  • Page 13 LOG PLACEMENT 11. Place round recess in top center (K) log onto round boss on upper middle left (J) log and insert square boss on top center (K) log into square recess in middle center (I) log. f i r e - p a r t s . c o m frONT VIew Scan this code to see the log assembly video.
  • Page 14 LOG PLACEMENT Insert boss on top right (L) log into recess on middle center (I) log. f i r e - p a r t s . c o m frONT VIew TOP VIew Scan this code to see the log assembly video. Page 14 24559-4-1013...
  • Page 15 LOG PLACEMENT On ALS-18CR2 and ALS-30CR2 log sets, insert boss in top left (M) log onto recess on middle center (I) log and rest on upper middle left (J) log. On ALS-24CR2 log sets, insert boss in top left (M) log onto recess on middle center (I) log and rest on middle left (F) log.
  • Page 16 LOG PLACEMENT Attention: Do not use Pages 5-16 to order replacement logs. Refer to Page 17, Parts List and Parts View to order logs for your appropriate model number. The following WARNING applies when log set is installed onto an unvented gas burner assembly. wArNINg: This appliance is equipped for (natural or propane) gas.

  • Page 17: Parts List & Parts View

    Attention: When ordering parts, it is very important that part number and description of part coincide. INDeX TOP VIew frONT VIew f i r e - p a r t s . c o m Part No. Index No. Description ALS-18cr2-2 ALS-24cr2-1 ALS-30cr2-1 R8353 R8361 R8368 Front Left Log R8775 R8412 R8777...

  • Page 18: Placement Of Glowing Embers Als-18Cr2-2

    PLACEMENT OF GLOWING EMBERS ALS-18CR2-2 f i r e - p a r t s . c o m Page 18 24559-4-1013...
  • Page 19 PLACEMENT OF GLOWING EMBERS ALS-18CR2-2 f i r e - p a r t s . c o m Some logs removed for clarity. 24559-4-1013 Page 19...

  • Page 20: Placement Of Glowing Embers Als-24Cr2-1

    PLACEMENT OF GLOWING EMBERS ALS-24CR2-1 f i r e - p a r t s . c o m Page 20 24559-4-1013...
  • Page 21 PLACEMENT OF GLOWING EMBERS ALS-24CR2-1 f i r e - p a r t s . c o m Some logs removed for clarity. 24559-4-1013 Page 21...

  • Page 22: Placement Of Glowing Embers Als-30Cr2-1

    PLACEMENT OF GLOWING EMBERS ALS-30CR2-1 f i r e - p a r t s . c o m Page 22 24559-4-1013...
  • Page 23 EMBER PLACEMENT ALS-30CR2-1 f i r e - p a r t s . c o m Some logs removed for clarity. 24559-4-1013 Page 23...

  • Page 24: Placement Of Glowing Embers

    PLACEMENT OF GLOWING EMBERS Replacement glowing embers must be purchased from Separate the ember material by hand and make the coverage Empire Comfort Systems, Inc. Application of excess glowing as light and fluffy as possible. embers may adversely affect performance of the heater, Place just enough embers on the burner to obtain the glow possibly causing soot.

  • Page 25: Master Parts Distributor List

    MASTer PArTS DISTrIBuTOr LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit.

  • Page 26: Service Notes

    APPLIANce SerVIce HISTOrY Date Dealer Name Service Technician Name Service Performed/Notes f i r e - p a r t s . c o m Page 26 24559-4-1013...
  • Page 27 APPLIANce SerVIce HISTOrY Date Dealer Name Service Technician Name Service Performed/Notes f i r e - p a r t s . c o m 24559-4-1013 Page 27...
  • Page 28 f i r e - p a r t s . c o m Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer.
