Model W1834
***IMPORTANT UPDATE***
Applies to Models Mfd. Since 09/16
and Owner's Manual Printed 11/14
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
We made the following changes to this machine since the manual was printed:
•
Adjustable guard added to wheel guard.
•
New fasteners added.
Aside from the information contained in this update, all other content in the owner's manual is
applicable and MUST be read and understood for your own safety.
IMPORTANT: Keep this update with the owner's manual for future reference. If you have any further
questions, contact our Technical Support.

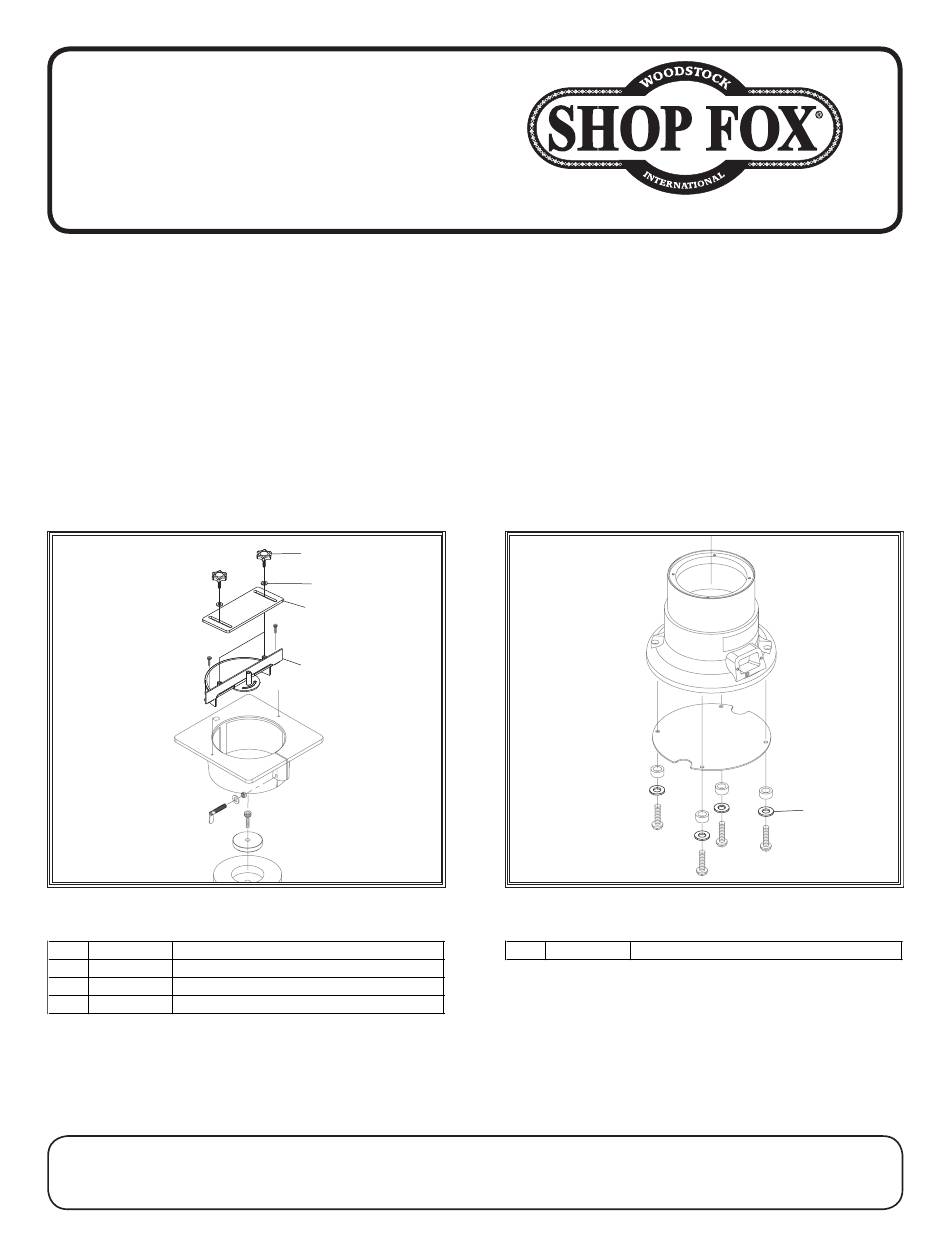

New/Updated Parts
REF PART #
DESCRIPTION
10
X1834010
STAR KNOB 1/4-20 X 1/2
12
X1834012
FLAT WASHER 1/4
40V2 X1834040V2 WHEEL GUARD ALUMINUM V2.09.16
59
X1834059
ADJUSTABLE GUARD
COPYRIGHT © OCTOBER, 2016 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#18430WK
READ THIS FIRST
10
12
59
40V2
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
REF PART #
DESCRIPTION
58
X1834058
FLAT WASHER #10
58
Printed in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shop Fox W1834 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodstock Shop Fox W1834

Summary of Contents for Woodstock Shop Fox W1834

  • Page 1 40V2 X1834040V2 WHEEL GUARD ALUMINUM V2.09.16 X1834059 ADJUSTABLE GUARD COPYRIGHT © OCTOBER, 2016 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. #18430WK...
  • Page 2 Model W1834 (Mfd. Since 09/16) Using Adjustable Guard 3. Install new wheel guard using fasteners from Step 2 (see Figure 3). The new wheel guard reduces the risk of injury by shielding the user from flying sparks/debris 4. Install adjustable guard on new wheel and preventing fingers from contacting the guard using (2) ⁄...
  • Page 3   MODEL W1834 UNIVERSAL  KNIFE GRINDER OWNER'S MANUAL (FOR MODELS MANUFACTURED 07/14) Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz COPYRIGHT ©NOVEMBER, 2014 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. 177335 #AW15415 Printed in Taiwan...
  • Page 4 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 5: Table Of Contents

    Contents INTRODUCTION........2 MAINTENANCE........25 Woodstock Technical Support ....2 General .......... 25 Machine Data Sheet ......3 Cleaning ......... 25 Controls and Features ......5 Lubrication ........25 Wheel Dressing ......... 26 SAFETY..........6 Wheel Replacement......27 Standard Machinery Safety Instructions ..6 SERVICE..........

  • Page 6: Introduction

    INTRODUCTION Woodstock.Technical.Support Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product. In the event that questions arise about your machine, please contact Woodstock International Technical Support at (360).734-3482 or send e-mail to: tech-support@shopfox.biz.

  • Page 7: Machine Data Sheet

    Model W1834 (For Machines Mfd. Since 7/14) MACHINE SPECIFICATIONS © Woodstock International, Inc. • Phone #: (800) 840-8420 • Web: www.shopfox.biz MODEL W1834 20" BLADE GRINDER Product Dimensions: Weight ........................45 lbs. Width (side-to-side) x Depth (front-to-back) x Height ..........24 x 11 ⁄...
  • Page 8 Model W1834 (For Machines Mfd. Since 7/14) Construction Base ........................Cast Iron Table ........................Cast Iron Other Specifications Country of Origin ....................... Taiwan Warranty ......................... 2 Years Serial Number Location ................ ID Label on Front of Motor Assembly Time ......................⁄...

  • Page 9: Controls And Features

    Model W1834 (For Machines Mfd. Since 7/14) Controls.and.Features Knife Adjustment Wheel Knife Knife Screw Guard Clamp Clamp Screw Table Handwheel Slide Table Pivot Grinding Support Wheel Table Lock Pivot Support Slide Adjustment Table Knob Mounting ON/OFF Hole Switch Figure.1. Model W1834 identification.

  • Page 10: Safety

    Model W1834 (For Machines Mfd. Since 7/14) SAFETY SAFETY For.Your.Own.Safety, Read.Manual.Before.Operating.Machine The. purpose. of. safety. symbols. is. to. attract. your. attention. to. possible. hazardous. conditions.. This. manual.uses.a.series.of.symbols.and.signal.words.intended.to.convey.the.level.of.importance.of.the. safety.messages..The.progression.of.symbols.is.described.below..Remember.that.safety.messages.by. themselves. do. not. eliminate. danger. and. are. not. a. substitute. for. proper. accident. prevention. mea- sures—this.responsibility.is.ultimately.up.to.the.operator! Indicates.an.imminently.hazardous.situation.which,.if.not.avoided,.
  • Page 11 INTENDED.USAGE..Only use machine for its keep machine in good working condition. A intended purpose—never make modifications machine that is improperly maintained could without prior approval from Woodstock malfunction, leading to serious personal injury International. Modifying machine or using or death.

  • Page 12: Additional Safety Instructions For Grinders

    Model W1834 (For Machines Mfd. Since 7/14) Additional.Safety.Instructions.for.Grinders EYE. PROTECTION. Grinding causes small par- WHEEL.FLANGES..Only use the wheel flanges that ticles to become airborne at a high rate of are included with this grinder when mounting speed. ALWAYS wear safety glasses or face wheels.

  • Page 13: Electrical

    Model W1834 (For Machines Mfd. Since 7/14) ELECTRICAL Circuit.Requirements This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an The. machine. must. be. properly. set. up. adequate power supply circuit is available.

  • Page 14: Grounding Requirements

    Model W1834 (For Machines Mfd. Since 7/14) Grounding.Requirements This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides a path of least resistance for electric current to travel—in order to reduce the risk of electric shock. Improper connection of the equipment-grounding wire will increase the risk of electric shock.

  • Page 15: Setup

    Model W1834 (For Machines Mfd. Since 7/14) SETUP Unpacking This machine has been carefully packaged for safe SUFFOCATION HAZARD! transportation. If you notice the machine has been Immediately discard all damaged during shipping, please contact your authorized plastic bags and packing Shop Fox dealer immediately.

  • Page 16: Cleaning Machine

    Model W1834 (For Machines Mfd. Since 7/14) Cleaning.Machine To prevent corrosion during shipment and storage of your machine, the factory has coated the bare metal surfaces of your machine with a heavy-duty rust prevention compound. Gasoline.and.petroleum. products.have.low.flash. If you are unprepared or impatient, this compound can points.and.can.explode.

  • Page 17: Machine Placement

    Model W1834 (For Machines Mfd. Since 7/14) Machine.Placement •. Working.Clearances: Consider existing and anticipated needs, size of material to be processed through the machine, and space for auxiliary stands, 44" work tables, or other machinery when determining where to locate this machine. See Figure 4 for the 10"...

  • Page 18: Test Run

    Model W1834 (For Machines Mfd. Since 7/14) Test.Run Once you have mounted the grinder to the workbench, test run the machine to ensure it is properly connected to power and safety components are functioning properly. Serious injury or death can result from using this machine BEFORE If you find an unusual problem during the test run, understanding its controls and related...

  • Page 19: Operations

    Model W1834 (For Machines Mfd. Since 7/14) OPERATIONS General This machine will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incorrectly. The instructions in this section are written with the understanding that the operator has the necessary knowledge and skills to operate this machine.

  • Page 20: Grinding Tips

    Model W1834 (For Machines Mfd. Since 7/14) Grinding.Tips The grinder is a safe tool when used properly. In addition to the safety instructions in this manual, the most impor- tant safety consideration is to use common sense at all times. Follow.these.rules.when.grinding: •...

  • Page 21: Wheel Selection

    Model W1834 (For Machines Mfd. Since 7/14) Wheel.Selection Wheel.Care Your Model W1834 uses only Type 5 grinding wheels that Your safety depends on the condition of the have a ⁄ " bore, are 6" in diameter and 1 ⁄ " thick. wheel during operation.

  • Page 22: Wheel Inspection & Ring Test

    Model W1834 (For Machines Mfd. Since 7/14) Wheel.Inspection.&.Ring. Test Do not assume that a grinding wheel is in sound condition just because it is new or looks okay. Often damage can occur in shipping, with age, or with exposure to moisture, and may not be visible.

  • Page 23: Mounting Pivot Support

    Model W1834 (For Machines Mfd. Since 7/14) Mounting.Pivot.Support The pivot support is used to hold the stationary clamps for Lock narrow tools and the slide table and bar for wide knives. Knob To.mount.pivot.support.on.grinder.table,.do.these.steps: 1. DISCONNECT MACHINE FROM POWER! 2. Loosen four lock knobs on the sides of pivot support, Flange then slide support flanges onto table, as shown in Pivot...

  • Page 24: Sharpening Narrow Tools

    Model W1834 (For Machines Mfd. Since 7/14) Sharpening.Narrow.Tools The stationary clamps mounted on the pivot support hold tools with narrow cutting widths, such as chisels, that have a beveled edge which can be squarely aligned with the flat of the wheel, as shown in Figure.9. To.sharpen.a.narrow.tool.bevel,.do.these.steps: 1.

  • Page 25: Sharpening Wide Knives

    Model W1834 (For Machines Mfd. Since 7/14) Sharpening.Wide.Knives Wide knives, such as jointer and planer blades, are firmly Hex Bolts & held in the slide bar assembly that is then mounted on the Flat Washers slide table above the wheel. Tools.Needed.
  • Page 26 Model W1834 (For Machines Mfd. Since 7/14) 5. Lay slide bar on flat, stable surface, remove five Lock Screws lock screws, then remove knife clamp, as shown in Knife Figure 13. Clamp A.wide.knife.must.be.centered.on.the.slide.bar.and.be. supported.by.at.least.two.adjustment.screws.to.reduce. the. risk. of. the. knife. coming. loose. during. operation. and.
  • Page 27 Model W1834 (For Machines Mfd. Since 7/14) 8. When you are satisfied that knife extends beyond Knife slide bar same amount along its length and that Clamp supporting adjustment screws are all making even contact with back of knife, re-tighten jam nuts and attach knife clamp to slide bar by hand-tightening five lock screws, shown in Figure.16.
  • Page 28 Model W1834 (For Machines Mfd. Since 7/14) 12.. Once you are satisfied with position of knife relative to wheel, raise grinder table until wheel is below table surface, then move slide bar so end of knife is over right-hand side of wheel, as shown in Figure. Knife Edge 13.

  • Page 29: Maintenance

    Model W1834 (For Machines Mfd. Since 7/14) MAINTENANCE General For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section. Daily Check: • Loose mounting bolts. Damaged or worn grinding wheel (Page 17). •...

  • Page 30: Wheel Dressing

    Model W1834 (For Machines Mfd. Since 7/14) Wheel.Dressing The surface of the grinding wheel will fill with metal resi- due and grit. When this happens, the wheel needs to be cleaned or “dressed.” The goal of dressing the wheel is to remove the contaminants and make the surface even.

  • Page 31: Wheel Replacement

    Model W1834 (For Machines Mfd. Since 7/14) Wheel.Replacement When the grinding wheel becomes worn, damaged, or less than ⁄ " thick, you need to replace it. Tools.Needed. Hex Wrench 4mm ..........1 To.replace.grinding.wheel,.do.these.steps: 1. DISCONNECT MACHINE FROM POWER! 2. Remove pivot support and wheel guard from machine.

  • Page 32: Service

    Model W1834 (For Machines Mfd. Since 7/14) SERVICE ..Troubleshooting This section covers the most common problems and corrections with this type of machine. WARNING!.DO.NOT.make.any.adjustments.until.power.is.disconnected.and.moving. parts.have.come.to.a.complete.stop! SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION Machine does not 1. Wall circuit breaker tripped. 1. Ensure circuit size is correct/replace weak breaker. start or a breaker 2.
  • Page 33 Model W1834 (For Machines Mfd. Since 7/14) SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION Wavy pattern 1. Machine vibrating. 1. Shim/tighten mounting hardware. workpiece surface. 2. Workpiece loose in clamping device. 2. Correctly re-clamp workpiece. 3. Wheel face is uneven. 3. Dress wheel (Page 26). 4.

  • Page 34: Electrical Safety Instructions

    These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Study this diagram carefully. If you notice differences between your machine and these wiring diagrams, call Woodstock International Technical Support at (360) 734-3482.

  • Page 35: Wiring Diagram

    Model W1834 (For Machines Mfd. Since 7/14) Wiring.Diagram Motor ON/OFF Switch Ground 110 VAC NEMA 5-15 Plug (Included) Read Page 30 STOP Figure.23. W1834 wiring. Before Wiring -31-...

  • Page 36: Parts

    Model W1834 (For Machines Mfd. Since 7/14) PARTS Main 40-1 WARNING! 14-1 -32-...

  • Page 37: Main Parts List

    Model W1834 (For Machines Mfd. Since 7/14) Main.Parts.List REF PART # DESCRIPTION REF PART # DESCRIPTION X1834001 STAR KNOB 1/4-20 X 7/8 X1834027 S CAPACITOR 10M 250V 1-1/8 X 1-1/2 X1834002 KNIFE CLAMP X1834028 MOTOR HOUSING X1834003 SLIDING BAR X1834029 BOTTOM WHEEL FLANGE ALUMINUM X1834004 O-RING 6 X 2  ...

  • Page 38: Labels & Cosmetics

    FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK SF LOGO RED PANTONE 1795C WITHOUT WRITTEN APPROVAL! Woodstock will not accept labels changed without PANTONE 109 C approval. If artwork changes are required, contact us immediately at SF LOGO YELLOW manuals@woodstockint.com.
  • Page 39 Model W1834 (For Machines Mfd. Since 07/14)
  • Page 40 Fold along dotted lIne place stamp Here Woodstock international inc. p.o. box 2309 bellingham, Wa 98227-2309 Fold along dotted lIne tape along edges--please do not staple...

  • Page 41: Warranty

    Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and option, the Shop Fox machine or machine part proven to be defective for its designed and intended...
  • Page 42 High Quality Machines and Tools Woodstock International, Inc. carries thousands of products designed to meet the needs of today's woodworkers and metalworkers. Ask your dealer about these fine products:...
