WARNING: Over-torquing fasteners can damage your mount and will not be covered by warranty.
1

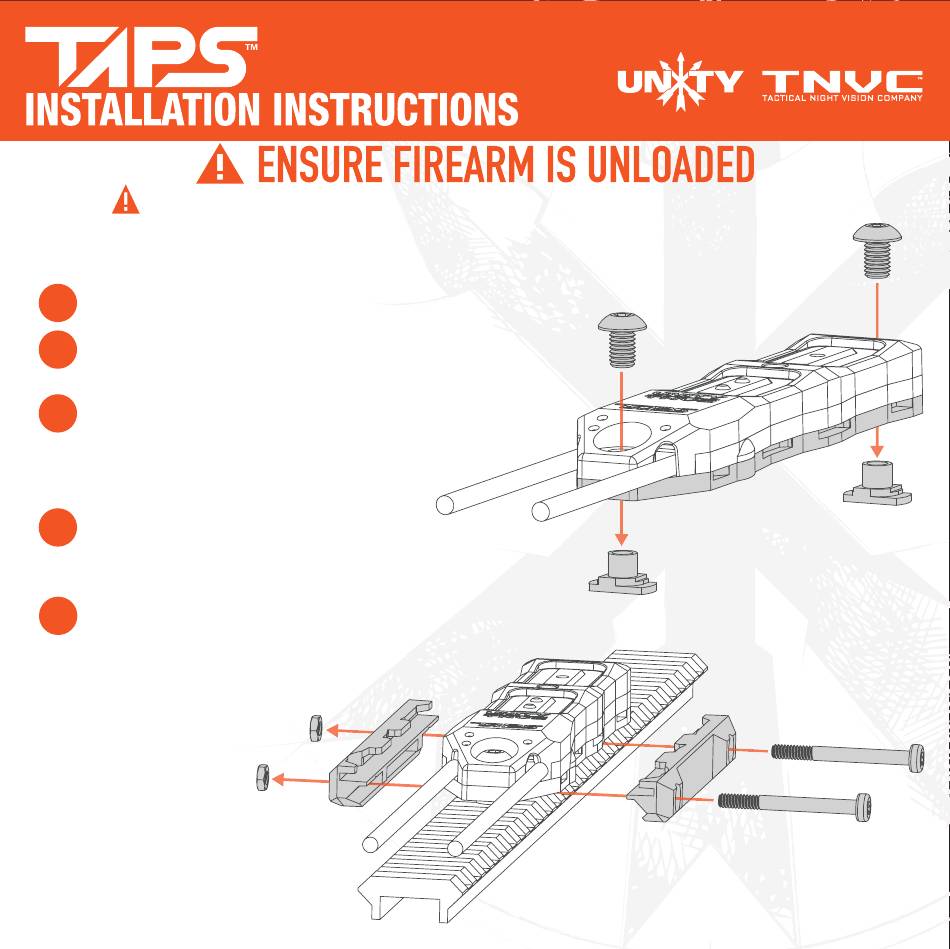

Press Baseplate onto Control Module, ensuring edges line up.
Seat M-LOK™ Nuts into recesses on underside of Baseplate
2
and thread bolts into them from the top. TORQUE TO 5 IN-LB.
Place assembly in desired location on M1913
3
Picatinny Rail. Fully seat right and left rail
grabbers into slots, ensuring they are on the
proper side.
Place Hex Nuts into appropriate rail grabber side.
4
Insert Cross Bolts and thread into Hex Nuts.
TORQUE TO 5 IN-LB.
Route cable from TAPS™ to light and laser device, and
5
fully seat plug in sockets. Avoid sharp bends in cables
and routing over extreme heat areas and sharp edges.
STANDARD / SYNC
M1913 PICATINNY RAIL INSTALLATION
©Copyright 2020, UNITY Tactical. All Rights Reserved.
