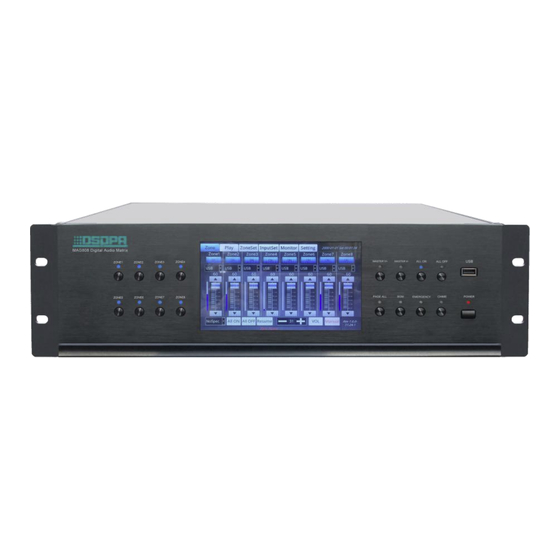

DSPPA MAG808 User Manual

Digital audio matrix
Hide thumbs Also See for MAG808:
Table of Contents

Advertisement

Quick Links

Public Address System
Digital Audio Matrix
MAG808
User's Manual
Welcome to DSPPA Public Address System! Please read the Instructions carefully before operating this device.
Guangzhou DSPPA Audio CO., Ltd
http://www.DSPPA.com
http://www.dsppatech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSPPA MAG808

Summary of Contents for DSPPA MAG808

  • Page 1 Public Address System Digital Audio Matrix MAG808 User’s Manual Welcome to DSPPA Public Address System! Please read the Instructions carefully before operating this device. Guangzhou DSPPA Audio CO., Ltd http://www.DSPPA.com http://www.dsppatech.com...
  • Page 2 About the Instructions The Instructions is used at the date when the digital audio matrix MAG808 device is developed. It contains system introduction, operation attentions, system connection instructions, product instructions and other contents of the digital audio matrix MAG808 device. The user shall read the Instructions carefully and operate the device following the indications in the Instructions before the installation and operation of the device.
  • Page 3 WARNING Be sure to observe the following cautions to prevent the damage to the users and others, and the damage to the equipment or property! This symbol means a “prohibition”. This symbol means a “must”. Check the damage condition of power cord. Do not block the air vent during the operation.

  • Page 4: Table Of Contents

    CONTENTS CONTENTS A. PRODUCT DESCRIPTION ..........................1 1.1 PERFORMANCE ..............................1 B. APPEARANCE DESCRIPTION .......................... 2 2.1 DESCRIPTION OF FRONT PANEL ........................2 2.2 DESCRIPTION OF REAR PANEL ........................3 C. INSTALLATION INSTRUCTION ........................5 3.1 INSTALLATION IN PHONE ..........................5 3.2 INSTALLATION IN PC............................

  • Page 5: Product Description

    Digital Audio Matrix A. Product Description 1.1 Performance  7″with touch capacitive color screen, embedded operating system;  Built-in high performance DSP, 10M/100M/1000M Ethernet interface;  Integrated Digital Audio Matrix, display, intelligent timing control, zones control and other functions in PA system;...

  • Page 6: Appearance Description

    Digital Audio Matrix B. Appearance Description 2.1 Description of Front Panel 12 11 10 MAG808 Digital Audio Matrix MASTER V+ MASTER V- ALL ON ALL OFF ZONE1 ZONE2 ZONE3 ZONE4 PAGE ALL CHIME POWER ZONE5 ZONE6 ZONE7 ZONE8 EMERGENCY 1. 1-8 zones button and indicator 2.

  • Page 7: Description Of Rear Panel

    Digital Audio Matrix 2.2 Description of Rear Panel ~110V/220V 50Hz DC POWER INPUT MODEL: MAG808 +24VDC GND. CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN F4AL FIRE ALARM EMERGENCY TEST ZONE OUTPUT CONTACT CLOSURE ~220V/50Hz F2AL ~110V/50Hz F4AL VOLTAGE SELECTOR...
  • Page 8 Digital Audio Matrix ⑫ Telephone Interface It is used to connect the telecom signals to this machine. ⑬ USB It is used to update the applications. ⑭ MIC2 Input Interface ⑮ +48V Phantom Power Control Switch (MIC1-MIC2) MIC1 and MIC2 are individually controlled. Turn left the switch to open this power source when the +48V phantom power supply microphone is used.

  • Page 9: Installation Instruction

    4.1 Linkage Instruction 4.1.1 Phone 1. First connect the MAG808 host device; 2. Connect the host device to LAN; 3. Connect the desired Android phone to the WIFI in the LAN where the host device is connected and set the static IP address of the phone.
  • Page 10 Digital Audio Matrix 4.1.2 PC 1. First connect the MAG808 host device; 2. Connect the host device and PC to LAN; 3. Set the IP address of PC and host device in the same network segment (e.g the host device IP is:192.168.0.220, the PC IP should be 192.168.0.10.): As shown below:...

  • Page 11: Interface Instruction

    Digital Audio Matrix 4.2 Interface Instruction 4.2.1 Description of Main Interface After turning on the power switch, the device is started and it enters the following main interface. In this interface, various operations as shown in the following chart are available. Zone switch Audio...
  • Page 12 Digital Audio Matrix FM setting area List: 1.Pop Music 2.Classical Music 3.Background Playback Modes: Music 1. Sequence 4.Sport Music 2. Loop 5.Chime 3. Shuffle 6.Other 4. Single Loop Play status/Play tentative Player Interface status (2) Zone Settings As shown below, each zone can be equalized. During the operation, it is necessary to open the switch of equalizer to adjust the equilibrium.
  • Page 13 Digital Audio Matrix Interface of Sound Source Settings (4) Monitoring Interface As shown below, only one zone can be monitored each time. When the background color of zone button becomes blue, it indicates this zone is monitored. When this zone will not be monitored, it can be canceled by clicking the key “Cancel”...
  • Page 14 Digital Audio Matrix accurately executed and operated. Setting Interface Network Setting Click the button “Network Setting” to enter the IP address setting interface. As shown below, there are ID address setting and the current IP address information of this machine in this interface. After the IP address is set up, click the button OK.
  • Page 15 Digital Audio Matrix Date and Time Setting Please align the current clock when setting the system time, which relates to the implementation punctuality of timing point. The timing point can be accurate to seconds. So, when re-setting the system time, please pay attention to the setting of seconds.
  • Page 16 Digital Audio Matrix Timing Point Setting Create the timing point: select the button “Create” to set up the Start Time and Stop Time, select the Day of Week, Zone and Sound Source, and then click the button “Save” to add the timing point. And the created timing point can be deleted, edit, zones setting,ring and other operations.
  • Page 17 Digital Audio Matrix Interface of Code Setting Other Settings As shown below, you can set up four setting items, namely, input for BGM (background music), input for PAGE ALL, other input volume set and priority. Interface of Other Settings Control Terminal In this interface, you can view the ID number, IP address and controlled zones and other information of the control terminal in the system.

  • Page 18: Description Of Phone Interface

    Digital Audio Matrix Interface of Control Terminal 4.2.2 Description of Phone interface According to the operation of the phone terminal connection instructions, enter the main surface when the connection is successful, and can operate various operations in the interface which is as shown below. Main interface Paging switch...
  • Page 19 Digital Audio Matrix (1) Player Interface In the following interface, you can operate basic operations like sorting and playing the songs. On the right of the interface, it is the audio interface. It can achieve the multi-channel operations of automatically searching the frequency, playing the audio, playing the previous channel/next channel, playing the specified channel, collecting the channels, etc.
  • Page 20 Digital Audio Matrix Control panel device select Equalizer switch Volume control by sliding Interface of Sound Source Setting (4) Monitoring Interface As shown below, only one zone can be monitored each time. When the background color of zone button becomes blue, it indicates this zone is monitored. When this zone will not be monitored, it can be canceled by clicking the key “Cancel”...
  • Page 21 Digital Audio Matrix (5) Setting Interface As shown below, you can set up some information of the system in this interface. Setting Interface 1 ) Timing Point Setting As shown below, can create timing point and the created timing point can be deleted, edit, zones setting,ring and other operations.
  • Page 22 Digital Audio Matrix 2 ) Password Setting The password setting is mainly for the phone calls. When there is a phone call access, it can be answered only by entering the password. The password can only be set up to four numbers. Interface of Code Setting 3 ) Other Setting As shown below, you can set up four setting items, namely, input for BGM (background music), input for...

  • Page 23: Description Of Pc Interface

    Digital Audio Matrix 4.2.3 Description of PC Interface According to the operation of the PC terminal connection instructions, enter the main surface when the connection is successful, and can operate various operations in the interface which is as shown below. Main interface Paging switch...
  • Page 24 Digital Audio Matrix Player interface Media play FM setting interface File List area Store list List: 1.Pop Music 2.Classical Current Music mode:Sequence 3.Background Playback Modes: Music Search Store/Cancel store 1. Sequence 4.Sport Music 2. Loop 5.Chime FM reception 3. Shuffle 6.Other program, 4.
  • Page 25 Digital Audio Matrix (3) Sound source setting As shown below, each sound source of control panel device can be equalized and the volume can be set. During the operation, it is necessary to open the switch of equalizer to adjust the equilibrium. Equalizer Control panel switch...
  • Page 26 Digital Audio Matrix (5) Setting Interface As shown below, you can set up some information of the system in this interface. Setting Interface 1 ) Network Setting Click the “Network setting”button to enter the IP address setting interface which is shown as below and set the IP address as the current PC’...
  • Page 27 Digital Audio Matrix 2 ) Timing Point Setting As shown below, can create timing point and the created timing point can be deleted, edit, zones setting,ring and other operations. Set timing point list Date.Auto display Delete Create Delete Copy Zone Time Media(point Exit and return...
  • Page 28 Digital Audio Matrix 4 ) Password Setting As shown below, you can set up four setting items, namely, input for BGM (background music), input for PAGE ALL, other input volume set and priority.
  • Page 29 5. The product was once repaired or modified by others rather than the authorized personnel of the Company;  Please keep the Instructions and Warranty Card properly;  For any question or attentions not covered in the Instructions, please feel free to contact our dealer or visit our website at: http://www.DSPPA.com, http://www.dsppatech.com.

  • Page 30: Packing List

    The Company will not bear any responsibility of free warranty for any damage resulted from the unauthorized demolition of the users themselves or the repair of others rather than the technical staff of the Company. Packing List List Quantity MAG808 Machine 1 set Instructions 1 copy Warranty card 1 copy...
  • Page 31 Therefore, the power outlet is required to be mounted at a place where the plug of the power cords can be easily unplugged or plugged. Guangzhou DSPPA Audio Co., Ltd...
