Summary of Contents for Salvo S401

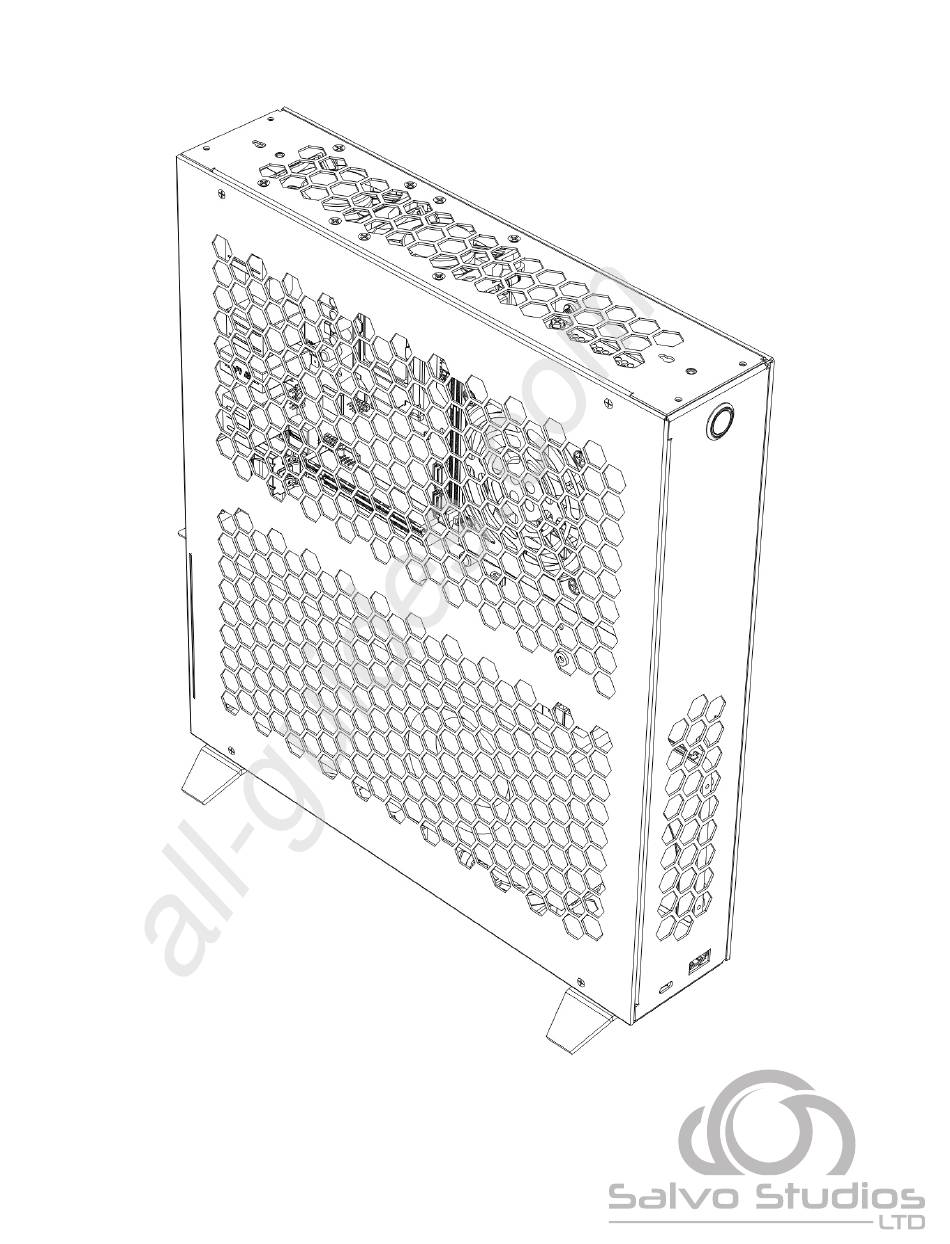

- Page 1 All manuals and user guides at all-guides.com S401 Quick Start Guide V1.1...
- Page 2 All manuals and user guides at all-guides.com 60mm Fans (Optional) Note: 60mm x 60mm x15mm fans are recommended. A single 60mm x 60mm x x 12 25mm fan may be used on the bottom mounts, but doing so will interfere with two 2.5” drive mounts and one 3.5”...
-
Page 3: Main Board
All manuals and user guides at all-guides.com Mainboard Note: Be sure to install mainboard I/O shield before installing mainboard. - Page 4 All manuals and user guides at all-guides.com 3 Power Supply Mounting Bracket Note: Orientation of PSU is with FAN intake face up.
- Page 5 All manuals and user guides at all-guides.com 4 Power Supply Extension Cable...
- Page 6 All manuals and user guides at all-guides.com Power Supply to Chassis Note: A foam anti-vibration pad has been installed underneath the PSU retaining tab on the chassis. Take care when installing the PSU to ensure the foam pad is not damaged. Before fastening the screws, please check for any interference with the front panel button.
- Page 7 All manuals and user guides at all-guides.com 2.5” Drive Install Note: Up to four 2.5” drives can be installed. Use holes labeled S-1, S-2, S-3, and S-4.
- Page 8 All manuals and user guides at all-guides.com 6a 2.5” drive mount locations...
- Page 9 All manuals and user guides at all-guides.com 3.5” Drive Install Note: Two 3.5” drives may be installed. Use holes labeled H-1 and H-2.
- Page 10 All manuals and user guides at all-guides.com 6b 3.5” drive mount locations...
- Page 11 All manuals and user guides at all-guides.com GPU Install Note: Angle GPU with I/O shield down and move toward rear chassis slot.
- Page 12 All manuals and user guides at all-guides.com GPU Install (Cont’d) Note: Be sure to carefully align the PCIe tab from the GPU to the PCIe extender and gently insert.
- Page 13 All manuals and user guides at all-guides.com GPU Install (Cont’d) Note: Tapped holes may strip if GPU screws are over-tightened.
- Page 14 All manuals and user guides at all-guides.com 8 Vented Panel Install...
- Page 15 All manuals and user guides at all-guides.com Solid Panel Install...
- Page 16 All manuals and user guides at all-guides.com Stands Note: Be sure orientation of the stand ensures the key fastener aligns with the keyhole on the chassis. Also, stands may be installed on either end of the chassis depending on desired orientation (vertically).
- Page 17 All manuals and user guides at all-guides.com Stands (Cont’d)
- Page 18 All manuals and user guides at all-guides.com Handle (Optional Accessory) Note: Like the stands, the handle may be installed on either of two surfaces of the case. If you are using the stands, the handle must be installed on the opposite side of the case as the stands.
- Page 19 All manuals and user guides at all-guides.com Handle (Cont’d)
