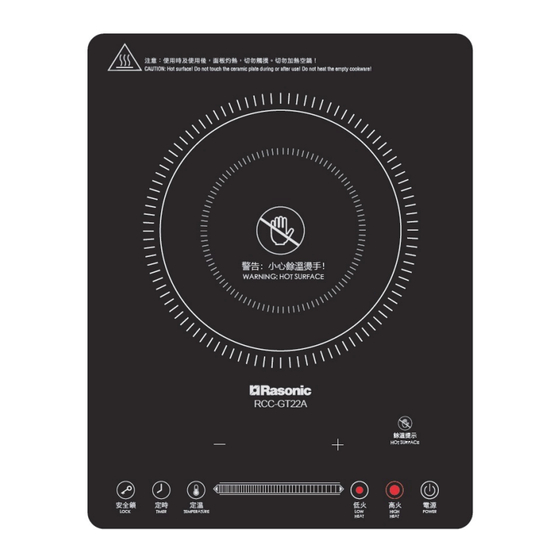

RCC-GT22A 輕便電陶爐 Compact Ceramic Cooker 僅適用於家庭使用 For household use only 使用說明書 OPERATION MANUAL • 在使用本產品前,請仔細閱讀本說明書,並妥善保存以備用戶日後查詢。 • Please read the operation manual carefully before using and well keep it in a safe place for future reference. • 本說明書中的圖示可能有與實物不同的地方,僅供參考。 • Some figures in this manual may not match with the real object, just for reference only.
Thank you for purchasing Rasonic ceramic cooker. Please read the operation manual carefully before using and well keep it for your future reference. Table of Contents Important Safeguards Maintenance and Daily Care Cookware Selection Product Specifications and Configuration Control Panel and Operation Instruction...
1. Important Safeguards When using the appliance, follow the basic safety precautions. Failure or negligence in observing these safety precautions could cause injury or appliance damage caused by improper usage : 1.1 To prevent fire, burn or electric shocks Treatment for residual heat 1.
Page 15
After using the ceramic cooker 1. After operation, shut down and unplug the appliance to avoid damaging the electronic elements or even causing fire due to long-term connect to the electricity. 2. Switch off the appliance when not in use. After the operation of the cooling fan prolong function, unplug the appliance from the socket.
Page 16
For the cookware 1. Use cookware with a flat and clean bottom as mentioned in the manual, and ensure it is steadily placed on the top plate. Otherwise, the sensor of the appliance may be malfunction and cause abnormal heating. 2.
Page 17
5. Pay attention to the cooking status and temperature to avoid overheating or empty heating. Otherwise, the overheat protection will be activated and the appliance will be shut off automatically when the temperature is too high. It may affect the cooking result. 6.
Page 18
5. Do not attempt to disassemble, repair or modify the appliance. For repairing, please contact Shun Hing Electric Service Centre Limited. 6. Handle the power cord with care, do not place heavy object on it or clamp it. Any modification is prohibited to the power cord.
Page 19
13. To prevent hazards occur, when the appliance or parts were malfunction, do not replace with any parts or accessories which is produced without authorization. Otherwise, the maintenance guarantee will become invalid. 14. In order to comply with safety regulations and to avoid hazards, if the appliance needs to be checked or repaired, contact Shun Hing Electric Service Centre Limited (hotline at 2406 5666 or refer to the address found at the back page of...
2. Maintenance and Daily Care 1. Switch off the appliance by pressing power key and unplug before cleaning. 2. Top plate cleaning: use a wrested damp cloth to wipe. If object can not be wiped off, use some mild decontamination powder or detergent to wipe, then using a damp cloth to wipe.
9. After using a long time, dust and grease may accumulate on the air intake / exhaust air vent which may affect the cooker’s operation. Clean the appliance regularly and make use of cotton stick. 10. Pay attention to pest control, dust and moisture protection. Protect the appliance against cockroaches and other insects from entering the interior of the appliance to avoid short circuit.
4. Product Specifications and Configuration 4.1 Product Specifications Model RCC-GT22A Rated Power 2,200W Rated Voltage 220-240V~ 50/60Hz Unit Dimensions (W x D x H) (mm) 280 x 360 x 62 Net Weight (kg) Required cookware size (mm) Cookware base diameter in between 120-240 4.2 Product Configuration...
5. Control Panel and Operation Instruction 5.1 Control Panel Key/Indicator Name Icon Description Lock Activate/deactivate safety lock function Timer Activate timer function Temperature Switch to temperature adjustment cooking mode Decrease Decrease the power, temperature or time settings Increase Increase the power, temperature or time settings Low Heat Activate low heat power cooking mode High Heat...
Page 24
Power/ Temperature levels Level Cooking Function Low Heat (single-ring power) 300W 500W 600W 700W 800W 900W 1,000W 1,100W High Heat (double-ring power) 600W 1,000W 1,200W 1,400W 1,600W 1,800W 2,000W 2,200W Temperature (temperature adjustment) 5.2 Operation Instructions After inserting the plug into the socket, a “Beep” will emit and all indicators will twinkle at the same time, indicating the unit in connection with a power source, known as standby mode, [Power] indicator will keep flashing.
Page 25
Lock Function To prevent children operating the appliance accidentally or changing the function mode, press [Lock] key to lock all the function keys. The safety lock function is deactivated under standby mode. Connect the electricity, press [Power] key to enter selection mode. Press the [Lock] key once to lock all the function keys (except [Power] key) meaning that no change of function, time and power is allowed.
6. Troubleshooting and Treatment During operations, if any error occurred, please check the following table before calling for service. Below are common errors and the checks to perform. Symptoms Check points Remedy After connecting the power and Is the electricity in suspension? Use after resuming the pressing the [Power] key , the electricity.
7. Special Avowal 1. This information above has been checked; our company reserves the hermeneutic power to any print errors or misunderstanding on the content. 2. Please note that any technology improvement will be added to the new versions of operation manual without any prior notices.
