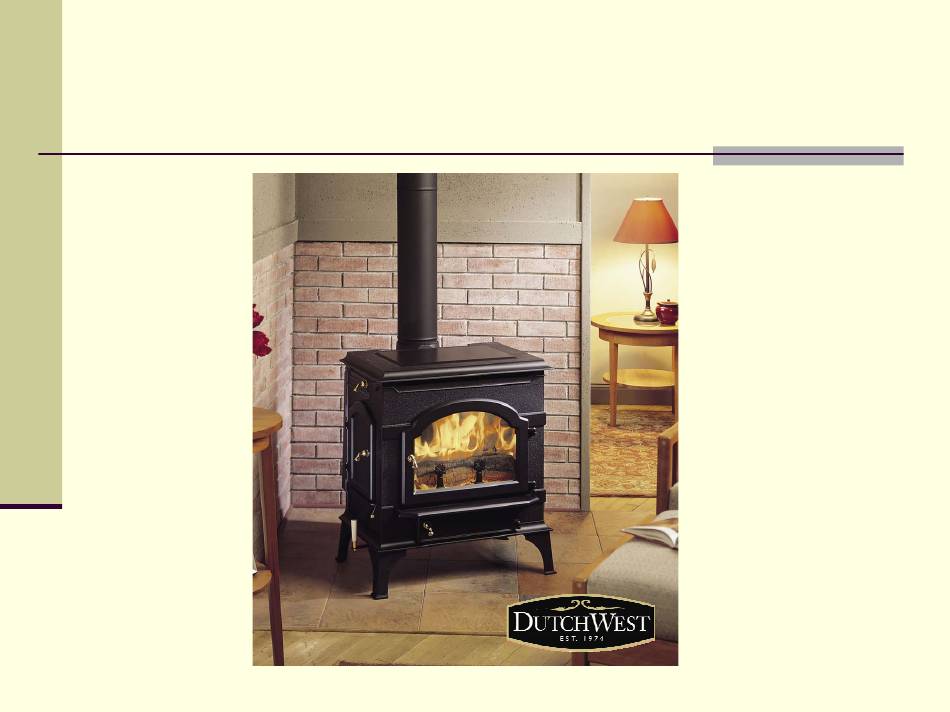

- Page 1 Dutchwest NC Wood Stove Service...
- Page 2 Dutchwest Non-Catalytic Interior Fireback Service Upper and lower fireback refractories removed from the stove...
- Page 3 Fountain and Shoe Fountain and Shoe shown out of the stove. Front view of Fountain and Top view of Shoe...
- Page 4 Remove Andirons Lift the left and right andirons out of the inner bottom...
- Page 5 Remove Grate Lift up grate and remove. Notice the retainer on the rear top of the grate which holds the Shoe in place.
- Page 6 Right End Refractory With a Phillips screwdriver, remove the brick support bracket and the right end Refractory. Then insulation panel can be removed.
- Page 7 Remove Shoe Grip the front of the shoe and carefully pull it forward out of the opening of the lower fireback refractory...
- Page 8 Remove Lower Load Door Refractory Lift out the lower load door refractory which sits on the inner bottom against the left side...
- Page 9 Remove Rear Sheet Metal Shroud Remove the rear sheet metal shroud. It is held in place with two Phillips head bolts located in the center of the shroud below the flue collar Rear of stove with shroud removed...
- Page 10 Remove Fireback Retainer With 7/16” socket wrench, remove the two interior bolts with washers & nuts on exterior back of stove then lift out fireback retainer...
- Page 11 Remove Lower Retainers With a 7/16” socket wrench, remove the interior bolts with washer and nut on the exterior back of the stove for left and right lower retainer. Lift out the retainers. Make sure refractories do not fall forward.
- Page 12 Remove Upper Fireback Refractory Lift up and out to remove the upper fireback refractory. Do not let the lower fireback refractory fall forward.
- Page 13 Remove Lower Fireback Refractory Pull forward to remove the Lower Fireback Refractory.
- Page 14 Remove Fountain Reach to the back of the fountain and gently pull it forward and out of the box. The fountain is fragile so handle with care.
