- Page 1 RC204 ZigBee Remote Control Quick Start Guide...
-
Page 2: Safety Handling
Safety Handling WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the Remote Control and other property. Read all the safety notices below before using the Remote Control. • Avoid high humidity or extreme temperatures. •... -
Page 3: Technical Specifications

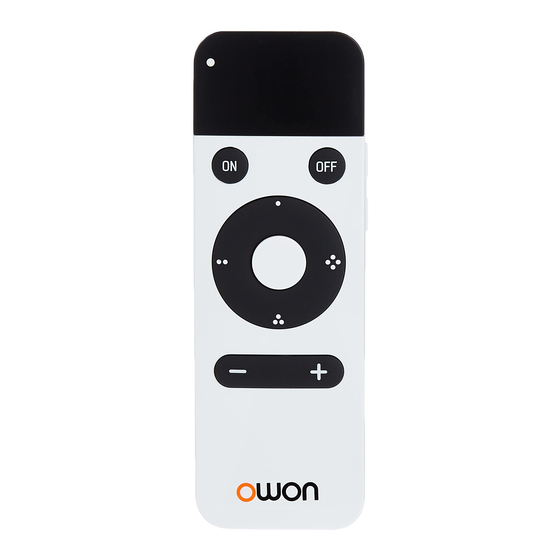

Technical Specifications Wireless Connectivity • ZigBee 2.4GHz IEEE 802.15.4 • Operating frequency: 2.4GHz RF Characteristics • Internal PCB Antenna • Outdoor/Indoor range: 100m/30m • Home Automation Profile ZigBee Profile • ZigBee Lighting Link Profile • Type: lithium battery • Voltage: 3.7 V •... - Page 4 Welcome The RC204 ZigBee Remote Control is used to control up to four devices individually or all. Take controlling LED bulb as an example, you can use RC204 to control the following functions: • Turn the LED bulb ON/OFF. • Individually adjust the brightness of the LED bulb.
-
Page 5: Get To Know Your Device
Get to know your device Lock switch Reset button Individual ON/OFF buttons & status LED indicators Status button Four status LED indicators The LED status gives the following information : LED Status What it means Solid Green The paired device is ON Solid red The paired device is OFF Flash green for three times... - Page 6 Function Button • Lock switch. You can lock/unlock the remote control by switching the side lock (you cannot use the remote button when it is locked). • Reset button. Reset: Press and hold the reset button for ten seconds until the LED light flashes green once at third second, and it will flash once again at tenth second.
- Page 7 Main LED indicator Color temperature control All ON/OFF button Brightness control Main LED indicator The LED status gives the following information : LED Status What it means Solid Green The battery charging is completed Solid red The device is charging Flash green for three times Device has joined a ZigBee network 1.Enable to join a ZigBee network...
- Page 8 Function Button • ON/OFF button. Turn on/off all the paired devices such as LED bulbs, smart plugs and power relays. • Color temperature control. Press Individual ON/OFF buttons once to select corresponding device first. Then you can adjust the color temperature of the corresponding light (Only when light can support this function) •...
-
Page 9: Get Started
2. Open your gateway to Permit Joining or select 'Add new devices' in the app. 3. Press the RC204 reset button once so the device can join the gateway 4. If the remote control join the gateway successfully, the main LED indicator will flash green for 3 times. - Page 10 & status LED indicators 4.After pairing, the LED bulb will stop flashing, and the corresponding status LED indicator on the RC204 will flash green three times. Tip: If pairing failed, the corresponding status LED indicator will flash red for 3 times. Then you will need to repeat the pairing, you need try again.
