COMPASS HEALTH ProBasics PBBT Quick Start Manual page 2

(Boom)
Tools Required:
Drill, rubber mallet and adjustable wrench

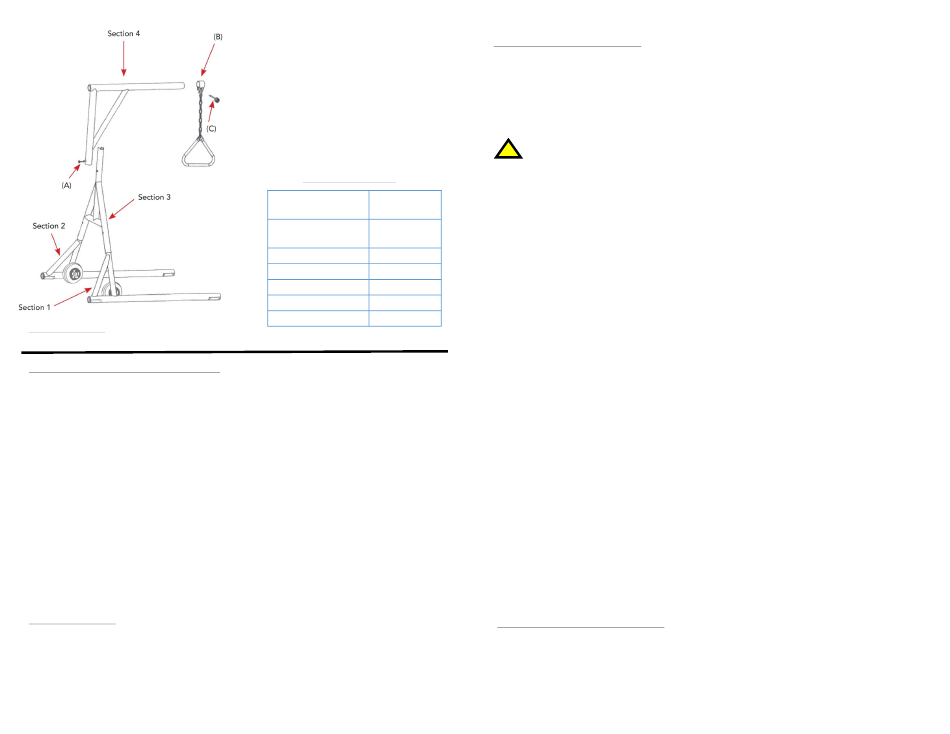

ASSEMBLY INSTRUCTIONS
1. Connect sections 1 & 3 by sliding section 3 over 1 and depressing the push pins
to secure in place. There should be an audible "click" when the pins are
properly engaged. Repeat for section 2.
2. Connect sections 3 & 4 by sliding section 4 down over section 3. Pull the
locking pin (A) outward to allow section 4 to lock into position.
3. Slide ring (B) over the tube section 4 by depressing push button on section 4
and sliding the into place. Insert the thumb screw ( C) through the ring (B) and
turn clockwise until tight to secure the ring in place. NOTE: thumb screw MUST
be inserted into the side of B without the receptacle nit to be sure it locks into
place correctly.
IMPORTANT
Prior to patient use, be sure to tighten the trapeze clamps onto either the bed or
2
the Trapeze base. The boom can be positioned at 90⁰ to the left or right, NEVER
use the trapeze for repositioning in these settings. These settings are ONLY for
storage of the trapeze.
OPERATION
Repositioning in Bed
1. Adjust the height of the triangle so the user may fully and firmly grasp the
triangle with both hands without stretching.
2. Position the triangle grip above the middle of the users' chest by loosening the
thumb screw and moving the slide ring. ALWAYS tighten the thumb screw
before use.
(slide ring)
(thumb screw)
(triangle grip)
Product Dimensions
73"h X 43"w
Size
X 48.5"d
37.5" Inner/
Leg Width Legs
43" Outer
Boom Length 36"
Boom Swivel Range 0° - 180°
Product Weight 100 lbs.
Shipping Weight 110 lbs.
Weight Capacity 650 lbs.
OPERATION (cont'd)
3. Firmly gripping the triangle, the user should pull with both arms evenly, NEVER
at an angle to help reduce possible injury.
DO NOT use the trapeze to reposition oneself, unless both hands are firmly
gripping the triangle and the user is positioned directly below the boom.
!
WARNINGS
DO NOT use to support full body weight. This device is intended to assist a user
ONLY while they are positioned on the bed, ALWAYS maintain contact with the bed
when using the trapeze. The maximum weight capacity of this trapeze is 650 lbs/
294 kg. ALWAYS observe the weight limits.
After assembly or transport of the trapeze, ALWAYS check that hardware is
securely tightened BEFORE use.
DO NOT use this device without proper instruction and supervision from a
healthcare professional. It is the responsibility of the patient's physician and
caregiver to assess the patient and determine which devices and accessories are
needed to support and protect the patient, while limiting risk to the patient. Use of
fall protection, pressure management, and transfer assistance mechanisms should
be considered as appropriate.
DO NOT hang from, stand on, or climb the trapeze stand. DO NOT hang objects from
the trapeze stand. Take care when positioning the trapeze triangle to allow for safe
user head clearance. ONLY use the trapeze for repositioning in bed.
DO NOT modify or replace parts. If replacement parts are needed, contact an
authorized ProBasics dealer.
DO NOT use the trapeze on uneven/rough/sloping ground. Unsuitable surfaces could
cause the device to tip.
DO NOT install or adjust the trapeze while the bed is occupied.
This is not a toy. DO NOT let children play on the trapeze.
ALWAYS check tightness of hardware, if the trapeze is disassembled and
reassembled for transport.
ALWAYS use CAUTION when moving the trapeze, as moving the unit on
uneven surfaces may cause the trapeze to tip.
NEVER use the trapeze except when the boom and handle are aligned with the legs
and the boom is locked in position, NEVER use with a patient when the boom is in
either storage setting (90⁰ left or right from the leg orientation).
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER
INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH
APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION.
MAINTENANCE & CARE
EVERY month, inspect all hardware for tightness, fatigue or rust and rubber tips/
grips for excessive wear. ALWAYS replace the chain, triangle, and/or slide ring/
thumb screw if they show signs of excessive wear.
Clean the trapeze triangle at least once a month AND between patients, clean the
trapeze stand every 6 months, use mild soap and water, DO NOT use
abrasive cleaners, allow the trapeze to dry completely before use.
3
