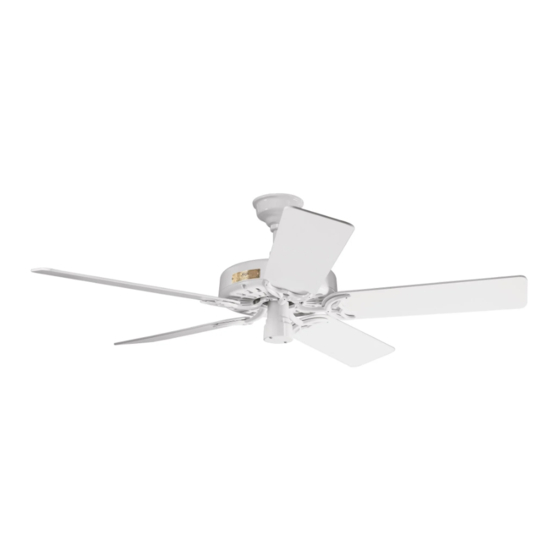

Hunter 23856 Installation Instructions

Installation in concrete ceiling
CAUTION:
For concrete mounting, the drilled hole must be recommend-
1.
ed by the manufacturer of the anchor (this is usually marked
on the anchor) and must be drilled at least
the length of the anchor.
The holes must be made with a suitable carbide-tipped
2.
masonry drill bit.
3.
The anchors must be new and unused.
The concrete ceiling must be sound and free of cracks or
4.
voids in the vicinity of the mounting holes.
The anchors must be set in flush with the surface of the
5.
concrete.
The bracket screws must never be backed out. If the bracket
6.
screws can be turned easily (by hand), do not hang fan.
Concrete ceiling
Bracket
(Furnished with fan)
Installation
Drill holes 2" deep in concrete ceiling to receive
A.
expansion shield anchor, "Rawl No. 1055" or equal. (Not fur-
nished.) Install shield in holes, observing all cautions above.
Proceed with the installation of the fan per the basic installa-
B.
tion instructions.
The Inside Story
Oil is constantly pumped up the spiral groove to lubricate the
rotor and shaft. The oil is returned to the reservoir where the
bearings are submerged in a bath of oil.
This unique lubrication system is built into all Original Hunter
Ceiling Fans. That's one reason Hunters last so long. And why
we can offer a Limited Lifetime Warranty.
Power
Leads
Used With
Light Kit
Canopy
Set Screw
Oil Filler Hole
Oil Return
Rotor
Field
Oil Reservoir
Windings
Bearing Nut
Switch Housing Cover
41121-01 9/95
All manuals and user guides at all-guides.com
1
/ " deeper than
2
expansion
shield anchor
set flush with
ceiling (anchor
not furnished)
Fig. 17
1
/ " x 1
4
Hanger
Bracket
Bracket
Bushing Pin
Ground Screw
Pipe Nipple (Std.)
Cast Iron
Fan Housing
Shaft
Spiral
Cast Metal
Groove
Lower
Cover
Bearings
Switch Housing
Pull Chain
Fig. 18
Switch
Trouble shooting guide
Problem
1. Nothing
happens;
blades do
not rotate.*
* Note: If blades will not turn by hand, contact your nearest
service representative or dealer.
1. Noisy
operation.
1. Excessive
1
/ " wobbling
2
Fill in the blanks below for your record.
Serial number
Model number
Date purchased
Dealer/store name where purchased
4
Probable Cause Solution
1. Power turned 1. Turn power on or
off or fuse replace fuse.
blown.
2. Loose wire 2. Loosen canopy.
connections Check all
or wrong connections (turn
connections. power off while
checking).
3. Pull chain 3. Pull switch cord.
switch not
"on".
4. Reversing 4. Slide reversing
switch in switch either up or
center. down.
1. Blade irons 1. Tighten screws until
loosely snug.
screwed to
rotor.
2. Blade 2. Tighten.
screwed
loosely to
blade iron.
3. Blade cracked. 3. Replace all 4 blades.
Contact dealer.
4. Canopy 4. Lower canopy.
contacting
ceiling.
5. No oil or low 5. Check oil level.
oil level.
1. Unbalanced 1. Rebalance (See
blades. Step 7D).
2. Inadequate 2. Relocate fan.
blade
clearance.
3. Loose blades 3. Tighten all screws.
or blade irons.
4. Fan not 4. Turn power off.
secure on Support fan very
hanger carefully. Loosen
assembly. canopy and hang
correctly.
Date installed
HUNTER FAN COMPANY
2500 FRISCO AVENUE
M E M P H I S , T N 3 8 1 1 4
®
