Professional IP Surveillance Pack

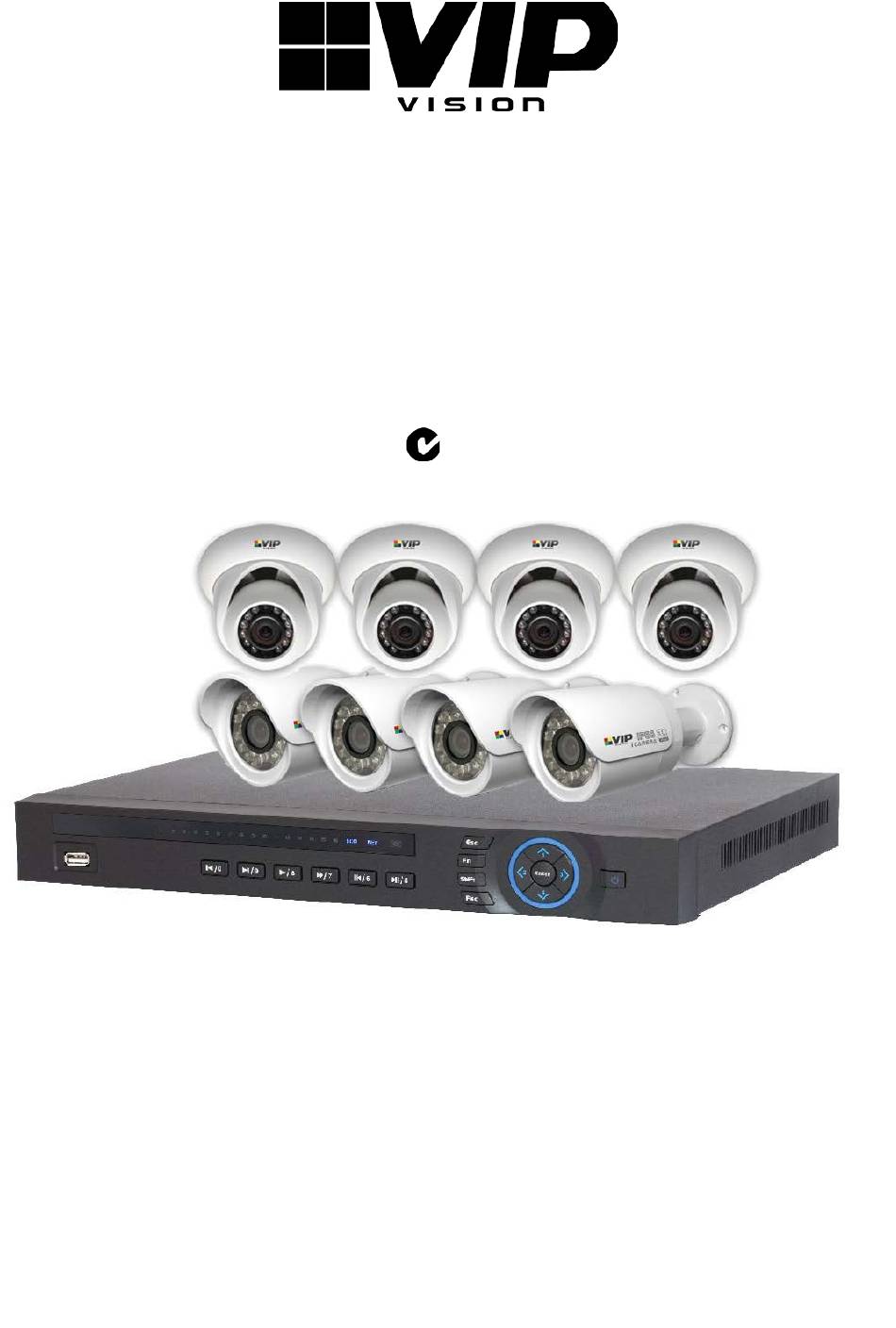

Network Video Recorder with 8 Security Cameras
NVR
- Advanced H.264 Video Compression Technology
- Multiplex Operation
- Long Recording Duration
- Intelligent Video Motion Detection Recording
- Remote Network Surveillance & Backup Functions
- Easy to operate with USB Mouse or IR Remote.
- System Auto recovery after power loss (blackout)
www.vip-vision.com
MODEL: NVR8PROPACK2
'QUICK INSTALLATION GUIDE'
N517
8 x IP Day/Night Cameras
- High Quality 1.3MP CMOS Image sensor
- IR Night view range of 20 metres
- 720p Resolution
In-Built POE Network Switch
- Centralise your cameras away from your NVR
- Power and video over the same cable
- View over the internet via Smartphone or PC
Advertisement
Related Manuals for Vip-Vision NVR8PROPACK2
Summary of Contents for Vip-Vision NVR8PROPACK2
- Page 1 MODEL: NVR8PROPACK2 Professional IP Surveillance Pack Network Video Recorder with 8 Security Cameras ‘QUICK INSTALLATION GUIDE’ N517 8 x IP Day/Night Cameras - Advanced H.264 Video Compression Technology - High Quality 1.3MP CMOS Image sensor - Multiplex Operation - IR Night view range of 20 metres...
- Page 2 Package Contents Before installation, please ensure you have all the parts listed below). 1 x Network Video Recorder with 2TB Hard Disk Drive ● Advanced H.264 Video Compression Technology for High Quality Images ● Easy to Operate ● Can be Connected to a PC Network for Remote Viewing & Backup (Software on Disc) 4 x Day/Night Weatherproof Bullet Cameras with Infrared LEDs - 20m Range ●...
- Page 3 Installation Before installing this unit, please read through the following points: • Do not place cords from the AC adapter where they can be pinched or stepped on. • Leave at least 50mm of space between the NVR and other objects to allow air circulation. •...
- Page 4 Connection Guide Mount the 8 Cameras as required and connect them to the in-built POE Network Switch using the supplied Network Cables. Connect the 48V Power Supply to the in-built POE Network Switch portion. Connect the 12V Power Supply to the NVR portion. Plug both power adaptors into a Power-point.
- Page 5 Each camera view will have one or more symbols from below: Currently Recording Video Loss Motion Detected Camera Lock NVR8PROPACK2 only supports eight cameras. System Menu • Right Clicking anywhere on the screen will bring up the System Login screen. •...
-
Page 6: Set The Time And Date
Set the Time and Date When using your NVR for the first time, you will have to set the SYSTEM TIME. • Right clicking anywhere on the screen will bring up the password menu. Use the mouse to enter the NVR admin password with the on-screen keypad. Default: The default username is admin, the password is also admin. - Page 7 To Connect Cameras NOTE: The NVR will most likely automatically configure the IP address of a camera connected to the dedicated POE Ports on the back of the device. • Right click to open the menu and select “MAIN MENU”. •...
- Page 8 To Set Up Recording Rates Record Times: The NVR8PROPACK2 system is capable of storing 2 weeks of recorded footage based on 2Tb of storage and the 8 included 1.3MP Cameras set to 720P @ 15fps and VBR @ Quality 5.
- Page 9 Motion Detection Motion detect recording is set per camera, per time period and can also be set to detect in certain portions of the screen. • Right click to open the menu and select “MAIN MENU”. • Select “SETTING” • Select “DETECT”...
- Page 10 Playback • Right click to open the menu and select “MAIN MENU”. • Select “SEARCH” 1. Playback Controls • Click to begin playback, pressing it again will pause playback. • Click to stop playback. • Click to begin backwards playback •...
- Page 11 2. Seek Control This shows the recorded data for the selected day. Normal recording in green, Alarm recording in red Motion recording in yellow. Clicking on any part of the recorded data will jump to that time. This control is made up of 1-4 bars, which correspond to each camera channel currently viewed. 3.
- Page 12 Networking Important: Before setting up remote access for your NVR, you will need to have a good understanding of computer networking. Otherwise please seek the assistance of a qualified I.T. person. • Right click to open the menu and select “MAIN MENU”. •...
- Page 13 DMSS Mobile App App available for Android, iOS, Blackberry, Symbian, Windows Mobile and Windows 7 mobile From your compatible Smartphone, access the App Marketplace and download the free “DMSS Lite” App. This will be listed as: iDMSS for iOS gDMSS for Android DMSS for other Setting Up: •...
-
Page 14: Troubleshooting
Troubleshooting Please refer to the FAQ table below for easy troubleshooting. The table below describes some typical problems and their solutions. Please consult these guides before contacting your NVR dealer. PROBLEM SOLUTION - Check power cord connection. No power - Confirm that there is power from the outlet. - Ensure that the 12V 5A is connected to the NVR - Ensure that motion detection is enabled for that Motion Detection not working... -
Page 15: Limited Warranty
This warranty replaces any previous warranties and is the only warranty made by the Seller on this product. No increase or alteration, written or verbal, of the obligations of this Limited Warranty is authorized. Please refer to the website (www.vip-vision.com) for a full list of trading terms. - Page 16 PLEASE CUT OUT & RETURN THIS INFORMATION WITHIN 14 DAYS OF PURCHASE TO: RhinoCo Technology 9 Hannabus Place McGraths Hill NSW 2756 Australia M o d e l : N V R 8 P R O PA C K 2 P r o f e s s i o n a l S u r v e i l l a n c e P a c k Wa r r a n t y C a r d Name Address...
