SmitCare LSR24 Instructions For The Assembly

Instructions for the assembly and safe use of the
Contents
1 x Four Wheel Walker with bag and
handles attached by brake cables
2 x Bolts & Handwheels
1 x Padded Backrest
Code: LSR24
Made in China
(Actual product may differ from that shown)

Assembly

- Remove walker from the box and open the frame to its maximum width (Fig. 1)
- Insert the handle stems in the frame at the required height. Insert the bolt through the frame
and handlebar, ensuring the hex head of the bolt is captive by the hex shape in the frame
(Fig 2), then securely tighten with the handwheel. Now repeat on the other handlebar.
- The backrest locates in place with two spring buttons (Fig 3).
- Remove the plastic covering from the tyres and check the brakes operate effectively (as
described in section 3) before each use.

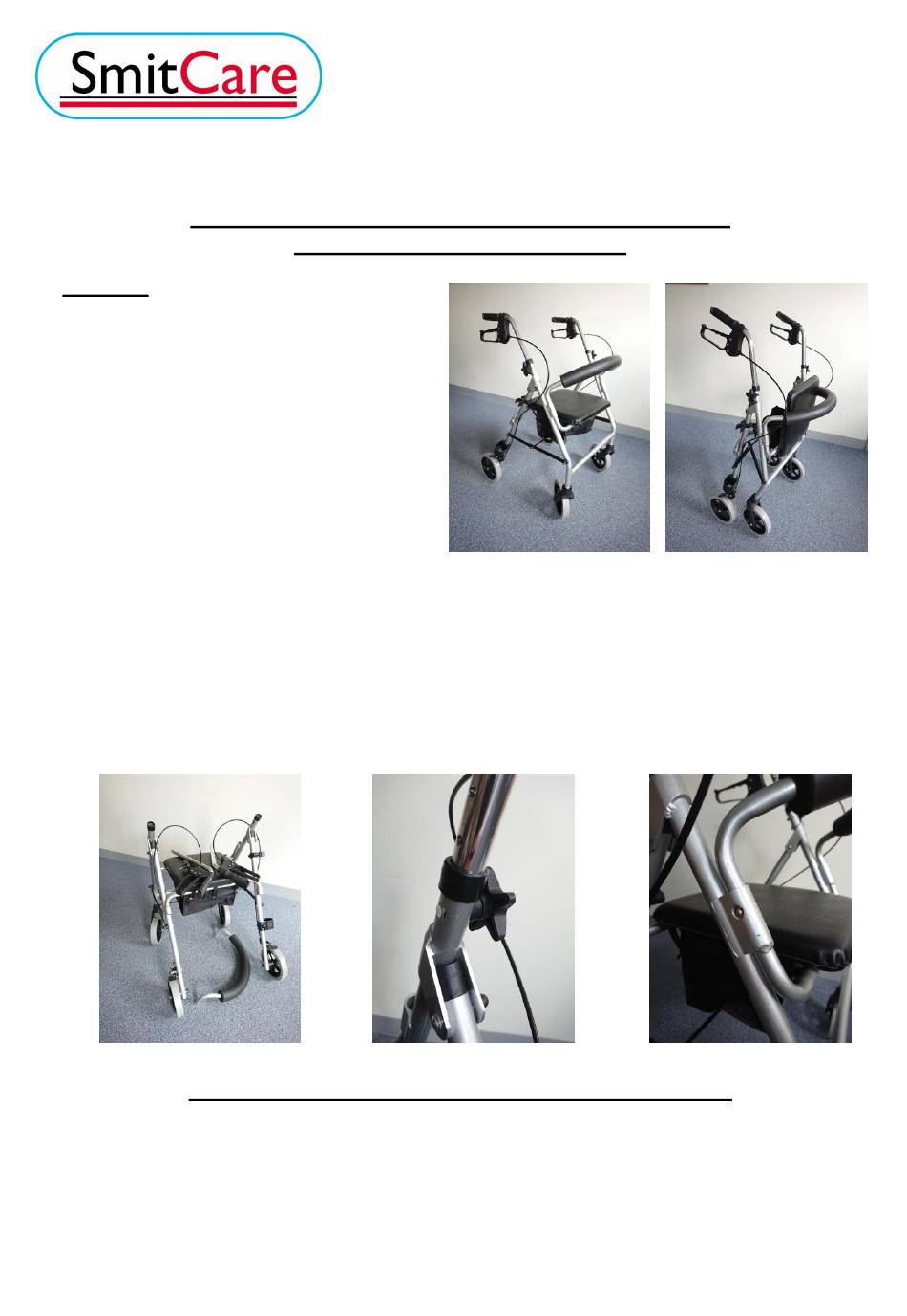

Fig 1
Instructions for Using the Four Wheel Lightweight Walker

1. Unfolding

To unfold the walker, apply the brakes and push down on the handles; note that the folding side
brackets are horizontal when it is fully open. Fold the seat down and the walker is ready for use.
250419 LSR24 instructions v1
SmitCare Lightweight Rollator
