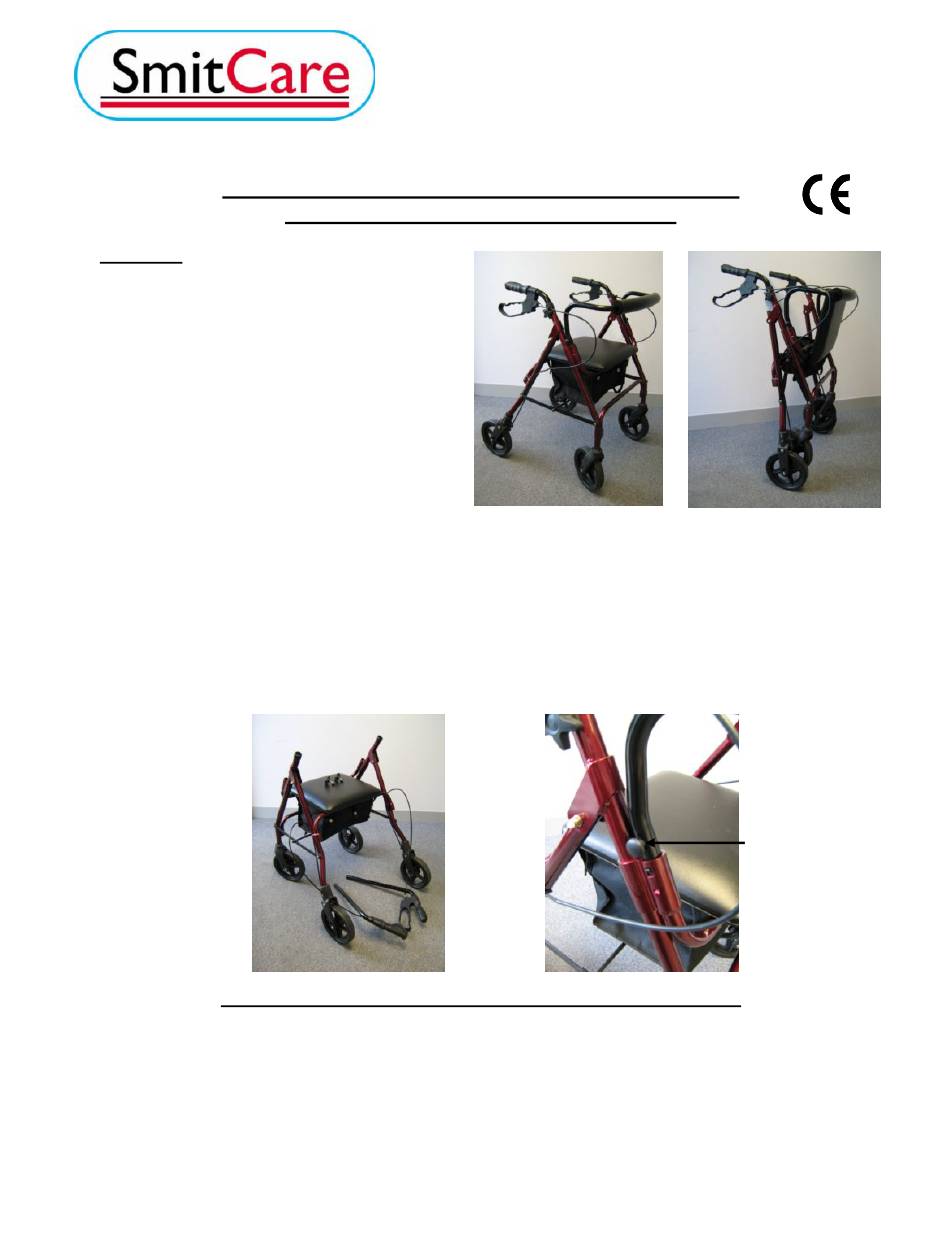

SmitCare LSR1X Instructions For The Assembly

Instructions for the assembly and safe use of the
Contents
1 x Four Wheel Walker with bag and handles
attached brakes by cables
2 x Handwheel nuts, bolts and washers
1 x Padded backrest
Code: LSR1X
Manufactured in China for SmitCare
Actual product may differ from that shown

Assembly

­ Remove walker from the box and open the frame to its maximum width (Fig. 1)
­ Insert the handle stems in the frame at the required height. Insert the bolt through the
handlebar from the inside of the frame (note hexagonal cut-out in frame to hold the bolt
head), then apply the washer and star wheel. Tighten securely and check that there is no
movement on the handle grip. Now repeat on the other handlebar.
­ The backrest locates in place with two spring buttons as shown in Fig 2.
­ Check the brakes operate effectively (as described in section 3) before each use.
Fig 1

Instructions for Using the Four Wheel Lightweight Walker

1. Unfolding
To unfold the walker, apply the brakes and push down on the handles; note that the folding side
brackets are horizontal when it is fully open. Fold the seat down and the walker is ready for use.
2. Walking
Unfold the walker and put the seat down (described above). Place the frame in front of you,
hold the handles and walk forward naturally. When the handle height is at the correct setting
your elbows should be slightly bent whilst you are walking.
200213 LSR1X instructions v3
SmitCare Lightweight Safety Rollator
Fig 2
SmitCare
14 Camberley Business Centre
Camberley, Surrey, GU15 3DP
Web: www.smitcare.co.uk
Email:sales@smitcare.co.uk
Spring
Buttons
