P102-9
User Manual
May 22, 09
CONTENTS
1. Package Contents.......................................................................................
2. Introduction...............................................................................................
3. Features...................................................................................................
4. Hardware Overview.....................................................................................
5. Remote Control..........................................................................................
6. Setting Up..................................................................................................
6.1 SLIDE SETUP.......................................................................................
6.2 MUSIC SETUP....................................................................................
6.3 MOVIE SETUP.....................................................................................
6.4 SLIDESHOW SETUP.............................................................................
6.5 PREFERENCE.....................................................................................
7. NETWORK INSTALLATION..........................................................................
7.1 Login P102-9 for the First Time..................................................................
7.2 Router Quick Setup (DMZ Function Setup)...............................................
7.3 Connecting Multiple P102-9 to a Router.......................................................
7.4 Limitation of the FTP Protocol..................................................................
7.5 Connecting to ADSL.................................................................................
7.6 Auto-Display Function.............................................................................
7.7 FTP Download Function...........................................................................
7.8 Remote Control to Display Media Files........................................................
8. Using the P102-9........................................................................................
8.1 Play Picture File.....................................................................................
8.2 Play Music File......................................................................................
8.3 Play Movie File......................................................................................
8.4 File Library............................................................................................
8.5 Hot Key................................................................................................
9. Troubleshooting........................................................................................
1
1
2
2
3
4
4
4
4
5
5
6
6
8
9
11
12
14
14
15
16
16
17
18
19
19
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P102-9 and is the answer not in the manual?

Questions and answers

Related Manuals for EYEZONE P102-9

Summary of Contents for EYEZONE P102-9

  • Page 1: Table Of Contents

    6.3 MOVIE SETUP…………………………………..………………..…………………… 6.4 SLIDESHOW SETUP……………………………….…………………………………. 6.5 PREFERENCE………………………………….……………………………………… 7. NETWORK INSTALLATION……………………………..………………………………... 7.1 Login P102-9 for the First Time.………………………………………..…………..…. 7.2 Router Quick Setup (DMZ Function Setup)...….…………………..…..………… 7.3 Connecting Multiple P102-9 to a Router…..………………….…………….……..…. 7.4 Limitation of the FTP Protocol……………………………..……………….………… 7.5 Connecting to ADSL…………….……………………….......……………...

  • Page 2: Package Contents

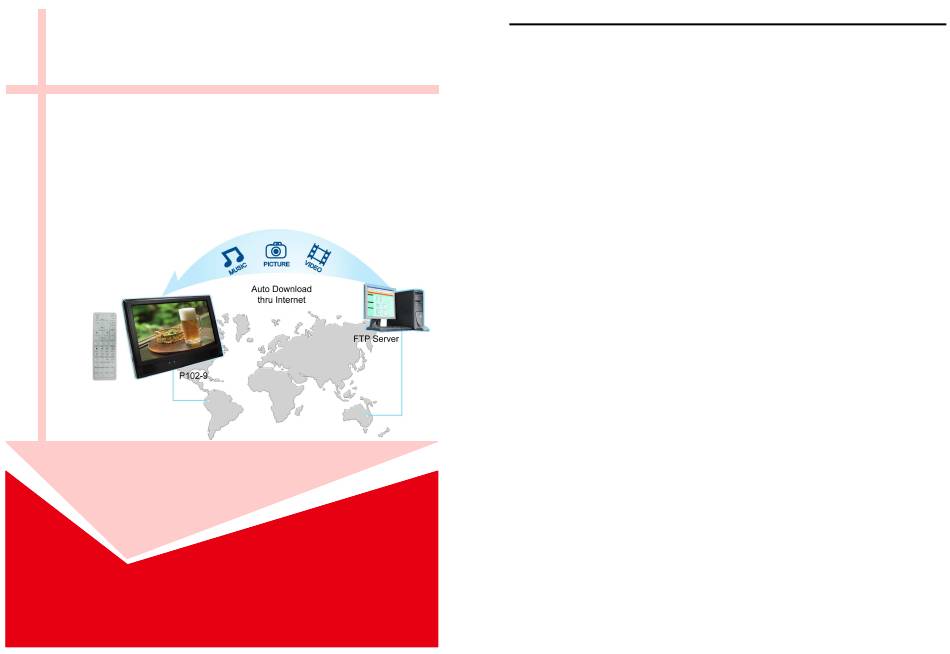

    The P102-9 is a network storage player that provides many kinds of network connections. You can upload music, picture and video files to the CF card in P102-9 from an FTP server through the internet at a designated time. The P102-9 can be remotely controlled over a network to play media files 4.

  • Page 3: Remote Control

    5. REMOTE CONTROL 6. SETTING UP Press the “SETUP” button on the remote control to open the Power on/ off “SETUP MENU – MAIN PAGE” shown in the following figure. Mute sound Open the setup menu There are five groups of sub-menu in the setup menu. No function 、...

  • Page 4: Slideshow Setup

    SLIDESHOW MODE: Set the slideshow to start automatically. FOLDER REPEAT: Set all files (picture, music or movie) in the 7.1 LOGIN P102-9 FOR THE FIRST TIME folder to show only once or continuously (loop). Step 1: Execute the “ipEdit.exe” in the CD, and select the “Unblock” (Windows XP SP2 only).

  • Page 5: Router Quick Setup (Dmz Function Setup)

    Login to the P102-9: Default IP Address:http://192.168.1.100/ Default User ID: root Method 1: Assign the DMZ function to the P102-9. Default User Password: admin NOTE: After setting up the Network, reboot the system. Method 2: Assign the Port Number to the P102-9.

  • Page 6: Connecting Multiple P102-9 To A Router

    Step 2: Setup your firewall or gateway, assign a Local Virtual IP address, and open a port for the P102-9. The following figure is an example - you need to ask your Internet Service Provider. 1. P102-9: IP: 192.168.1.100, HTTP Port: 6666, FTP Port: 7777 2.

  • Page 7: Limitation Of The Ftp Protocol

    FTP server (P102-9) and the FTP client (Remote PC) are using virtual IP addresses. You need to change the Remote PC to use a real IP address, or change the P102-9 to use a real Internet Option IP Address 7.5 CONNECTING TO ADSL...

  • Page 8: Auto-Display Function

    7.6 AUTO-DISPLAY FUNCTION If you want to connect P102-9 to ADSL without a router, please use the following steps to dial up Select “Timer Setup” to open the Time Setup window. PPPoE. If the IP Address is dynamic, you need to setup DDNS function.

  • Page 9: Remote Control To Display Media Files

    Select the “Timer Setup” first. In the “Schedule & Timer Setting” item, type in the auto download time. The P102-9 will auto download the latest files to memory card at the designated time from the Copy files (music, picture and movie) to the memory card first.

  • Page 10: Play Music File

    8.2 PLAY MUSIC FILE 8.3 PLAY MOVIE FILE Step 1: Press the “MUSIC” button on the remote control from any menu. Step 1: Press the “MOVIE” button on the remote control from any menu. Step 2: The “MUSIC LIBRARY” will show all the music files on the memory card. Step 2: The preview mode will show all the video files on the memory card.

  • Page 11: File Library

    Step 2: You can see all the files (including picture, music and movie) on the left panel of the “FILE Confirm format of the card. The P102-9 supports CF memory LIBRARY”. Press the “▲、▼” buttons to select a file, and the information of the file will be shown on the card only.
