Canon XL2 Brochure & Specs
The ultimate 3ccd dv camera system for creative film-making
Hide thumbs
Also See for XL2:
- Instruction manual (126 pages) ,
- Brochure & specs (9 pages) ,
- Manual (62 pages)
Related Manuals for Canon XL2
Summary of Contents for Canon XL2

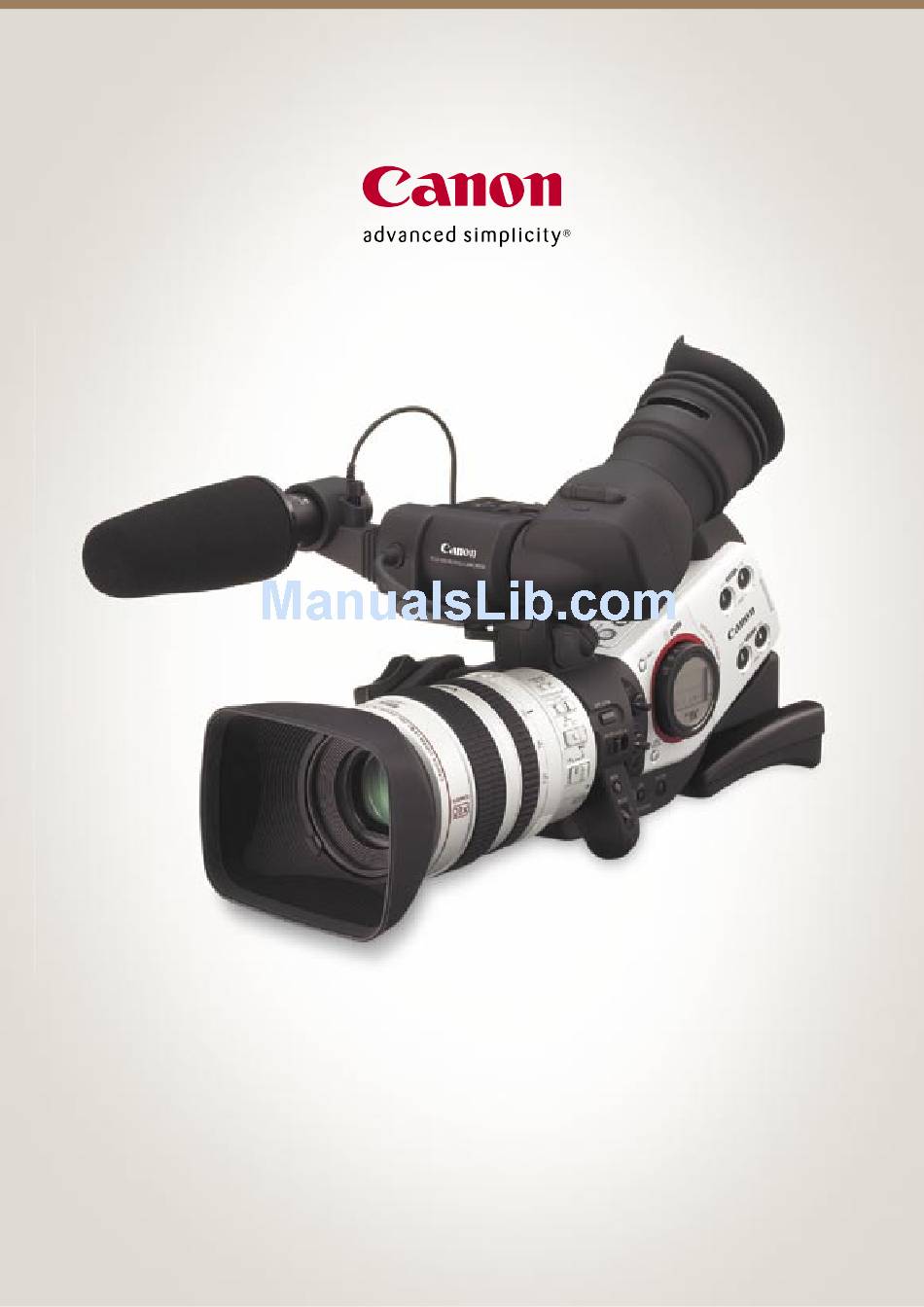

- Page 1 XL2 Digital Video Camera The ultimate 3CCD DV camera system for creative film-making.
- Page 3 No more limits. Canon’s XL2 is more than just a successor to the popular XL1s – it’s a revolution in digital video camera freedom. The design concept is based on the successful ‘open architecture’ structure of its predecessor, with innovation...
- Page 4 Push your imagination to the limit. With cutting-edge technology and Canon quality image processing, the XL2 not only gives you the ability to realise your creative vision, but inspires you to expand it even further. PROGRESSIVE SCAN 3CCD The XL2’s superb image quality is...
- Page 5 LCD/EVF in letterbox format. CINE-LOOK/VIDEO RECORDING The XL2 is capable of more than just crystal clear video output. With its unique Cine-Look capability you can also shoot footage with a genuinely warm, cinematic quality.
- Page 6 Lenses to expand your vision. The XL2 is designed primarily for the high performance XL interchangeable lens system, but is also easily fitted with an optional EF adapter to make full use of Canon’s pro-quality L-series EF lenses. Manual focus is possible with all capable lenses and in all shooting modes.
- Page 7 CCD. This allows for better compensation of low frequency band vibrations. The XL2 uses vector data from the gyro sensor to control the angle of the VAP in order to continuously correct the path of the incoming light.
- Page 8 The freedom of manual control. The XL2 offers an almost unbelievable amount of manual control. With an unprecedented amount of fully adjustable custom presets, as well as Brightness Adjustment and White Balance functions, the XL2 is a revelation in artistic freedom and flexibility.
-
Page 9: Manual Functions
MANUAL The XL2 features many more ways to control your FUNCTIONS images manually, eliminating the need for much of the expensive and time consuming post-production process required by many professional video camera users. INDEPENDENT R / G / B GAIN... -
Page 10: Manual Brightness Adjustment
Setting the brightness of each shot manually is BRIGHTNESS easily done through three separate parameter ADJUSTMENT controls on the XL2. WHITE BALANCE While the White Balance can be set to the factory presets of Auto, Outdoor (5600k colour temperature) or Indoor (3200k colour temperature), it’s also... - Page 11 The power of presets. Not only does the XL2 give you a huge amount of manual control over your shooting parameters – it comes with a number of preset shooting programs and modes that allow you to focus on achieving your creative vision.
- Page 12 The sound of artistic freedom. The XL2 delivers all the audio results you could want – and it can all be configured manually for total creative control. FOUR CHANNEL DIGITAL AUDIO The XL2 records in digital stereo sound. Select from 16 bit audio (2 channels,...
- Page 13 This can only be used in Shutter Priority (Tv) or Manual mode. 1. Zebra Pattern 2. Clear Scan SUPPORTING The XL2 has three additional functions that support MODES your creative control. INTERVAL SHOOTING Allows continuous recording with intervals. There are 16 different...
- Page 14 Fully prepared for anything. The XL2 is the perfect camera for so many shooting applications because of its widely adaptable functionality. From simple handheld shots to complicated multi-camera setups, the XL2 can handle it all with consistency and exceptionally high-performance.
- Page 15 Designed for freedom. The popularity of the XL2’s predecessor, the XL1s, was in large part due to its ‘open architecture’ skeletal design. The XL2 started with the same design philosophy and added improvements to create a completely modular video camera package to suit your needs. For maximum strength and portability, it is constructed from a high-tolerance impact-resistant magnesium alloy frame with a built-in shoulder support and distinctive pearl white finish.
-
Page 16: Left Side
The map to freedom. LEFT SIDE A. Panel 1. EVF display selector 2. Custom keys 3. Custom present keys on/off and selector 4. Tape compartment eject button B. Panel 5. Standard viewfinder plug 6. AE shift dial 7. Viewfinder FU-1000 plug 8. -
Page 17: Right Side
BACK 44. Headphone volume level control 53. Record 45. Headphone plug 54. Fast forward 46. DV in/out plug 55. Play 47. LANC plug 56. Rewind 48. 48v phantom power on/off 57. Stop for channel 1 and 2 58. Pause 49. XLR input for channel 1 and 2 59. -
Page 18: Optional Accessories
Expand your repertoire. The creative possibilities are virtually endless with the XL2’s wide range of in-box and optional accessories. OPTIONAL ACCESSORIES Video Light Dual Battery Charger/Holder VL-10Li* CH-910 KIT ACCESSORIES Video (Flash) Light VFL-1 DC Coupler VL-3 DC-920 Directional Stereo... -
Page 19: Camera Section
Shutter, Rec and Gain Up Display On/Partly Off/Off Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods. Specifications are subject to change without notice. ™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. - Page 20 Facsimile No: + 64 9 489 0380 canon.com.au canon.co.nz canon.com.au/digitalimage Canon is a registered trademark of Canon Inc. and ‘advanced simplicity’ is a registered trademark of Canon Australia Pty Limited. Microsoft, Windows and the Windows Logo are registered trademarks of Microsoft Corporation in the United States and in other countries.
