O peration M anu a l
IC-X12S-CXP
High-Speed High-Resolution Camera Technology
Revision 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoaXPress IC-X12S-CXP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for isvi CoaXPress IC-X12S-CXP

Summary of Contents for isvi CoaXPress IC-X12S-CXP

  • Page 1 O peration M anu a l IC-X12S-CXP High-Speed High-Resolution Camera Technology Revision 1.1...
  • Page 2 Revision History Revision Date Description 16.09.2015 Initial Release 13.01.2016 Modified CXP Connections...

  • Page 3: Introduction

    Limitation of Liability and Indemnity Statement This camera has been built to the high quality standards of ISVI Corp. and is delivered in full working order with factory default settings. Please read and understand this manual and follow all safeguards and cautions for your safety and to prevent damage to the camera.

  • Page 4: Precautions

    Failure to comply with any of the following precautions will void the user’s warranty. DO NOT attempt to disassemble, modify or repair the camera. Please contact your local ISVI Global Sales Partner if you require repair or modification.

  • Page 5: Conformity

    IC-X12S-CXP 1.3. Standards Conformity CE marking and certification (as per EN 50022-Class A Device) The CE mark is a declaration by a manufacturer that European Union directives and regulations controlling a specific product have been certifiably met. This camera fulfills the requirements of current EU regulations relating to EN 50022.

  • Page 6: Table Of Contents

    IC-X12S-CXP Contents 1. Introduction ............... 3 1.1. Statement of Intended Use and Liability ............3 1.2. Precautions ....................4 1.3. Conformity ....................5 1.4. Ordering Information ..................5 2. Overview ................9 2.1. Main Features ....................9 2.2. Specifications ....................10 2.3.
  • Page 7 IC-X12S-CXP 5.3.1 Device Control ................... 25 5.3.2 Image Format Control ................26 5.3.3 Acquisition Control ................... 27 5.3.4 Digital IO Control/Analog Confrol/Fan Control/User Set Control ....28 5.3.5 User Set Register/Transport Layer Control/CoaXPress ....... 29 5.3.6 Calibration ....................30 5.3.7 Point Defective Pixel ................. 31 6.
  • Page 8 IC-X12S-CXP High-Speed High-Resolution Camera Technology...

  • Page 9: Overview

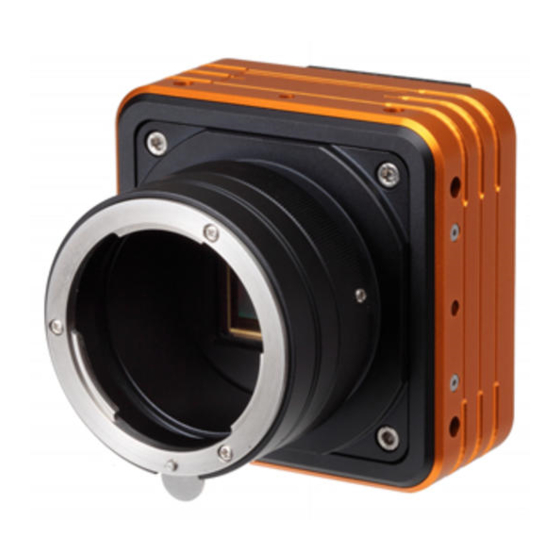

    IC-X12S-CXP 2. Overview The ISVI IC-X12S-CXP cameras are industrial area scan cameras utilizing the latest CMOSIS CMV12000 global shutter CMOS sensors and the highly successful CoaXPress high-bandwidth digital interface. The camera is available in 8-bit monochrome or 8-bit raw Bayer color versions which deliver high-sen- sitivity and high-dynamic images at very high frame rates.

  • Page 10: Specifications

    IC-X12S-CXP 2.2. Specifications Sensor High Speed CMOS Image Sensor - CMOSIS CMV12000 Resolution 4096(H) x 3072(V) Active Pixels Pixel Size 5.5µm(H) x 5.5µm(V) 181Hz @ 8bit CXP-6 4CH (5464 µsec) Frame Rate Diameter 28.14mm, 22.52mm(H) x 16.9mm(V) Active Area Size 8 bit Monochrome, Ext.

  • Page 11: Mechanical Dimensions

    IC-X12S-CXP 2.4. Mechanical dimension F Mount Figure 2.1 Mechanical dimensions (F Mount) High-Speed High-Resolution Camera Technology...
  • Page 12 IC-X12S-CXP M42 Mount Figure 2.2 Mechanical dimensions (M42 Mount) High-Speed High-Resolution Camera Technology...
  • Page 13 IC-X12S-CXP M58 Mount Figure 2.3 Mechanical dimensions (M58 Mount) High-Speed High-Resolution Camera Technology...
  • Page 14 IC-X12S-CXP M72 Mount Figure 2.4 Mechanical dimensions (M72 Mount) High-Speed High-Resolution Camera Technology...
  • Page 15 IC-X12S-CXP LM Mount (Leica M Mount) Figure 2.5 Mechanical dimensions (LM Mount) High-Speed High-Resolution Camera Technology...

  • Page 16: Installation

    IC-X12S-CXP 3. Installation In this section you will find information on the proper means of mounting your camera in your system, connecting the camera to a frame grabber and power supply, as well as ensuring proper electrical connections to the camera’s I/O signals. 3.1.

  • Page 17: Camera Connections

    IC-X12S-CXP 3.4. Camera connections The camera connections are laid out on the back panel of the camera as follows: Control I/O connection Power input connection (Hirose 12-pin) (Hirose 6-pin) CoaXPress connection (75Ω DIN 1.0/2.3 Type) Link Status Indicators Figure 3.1 Camera connectors 3.4.1 CXP Connections and interface standard CoaXPress (CXP) is a state-of-the-art high-speed serial data interface developed for machine vision devices (typically cameras) and hosts (typically frame grabbers) which defines the...
  • Page 18 When using multiple cables, all cables should have the same length to within less than 1 meter tolerance. Please contact your local ISVI Partner for recommendations on proper cabling. The CXP connection is designed to be plug-and-play. It has mechanisms for automatic camera detection, link setup and camera/host setup.

  • Page 19: Trigger Input Schematic

    Mating connector: Hirose HR10(A)-10P-12P Figure 3.5: Power input connector The reserved pins are used by the ISVI Camera Firmware Upgrade Cable for field firmware upgrad- ing. Do not connect these pins – damage to the camera may occur! See seperate manual provid- ed for more detailed information about firmware upgrading.

  • Page 20: Strobe Output Circuit

    Do not apply any voltage to the Strobe Output pins – damage to the camera will occur and the warranty will be voided! User Recommand Application ISVI Camera 3.3V / Max 50mA STROBE OUTPUT Opto Coupler...

  • Page 21: Image Acquisition

    IC-X12S-CXP 4. Image Acquistion 4.1 Overview This section describes the different modes of acquiring images with the Camera. Setting the Camera to use these acquisition modes is described in Section 5. The Camera has 3 acquisition modes which can be selected for a high degree of flexibility in any application environment: Continuous Trigger Timed...

  • Page 22: Trigger Width

    IC-X12S-CXP Applying a trigger during the previous frame’s exposure period or at an interval shorter than the total readout period of 5.464msec will result in the trigger being ignored. Ignored Trigger Trigger Programmed Programmed Programmed E xposure Time Exposure Time Exposure Time Exposure Readout Time...
  • Page 23 IC-X12S-CXP Trigger Trigger Pulse width Pulse width Trigger Exposure time Exposure Exposure time Readout Time Readout Time Image N Image N+1 Readout Figure 4.4: Trigger Width Mode High-Speed High-Resolution Camera Technology...

  • Page 24: Camera Features

    IC-X12S-CXP 5. Camera Features 5.1 Overview This section provides a description of each Camera feature and how to control it. This section assumes that the user has a suitable CoaXPress (CXP) framegrabber (FG) installed in a PC of sufficient specification for his application environment and all supporting software drivers and interfacing API have been correctly installed.

  • Page 25: Feature Description Table

    5.3.1 Device Control User Level: Guru Polling Feature Name Value DeviceControl Device Vendor Name ISVI Device Model Name IC-M12S-CXP Device Manufacturer Info Device Version Ver 2.0 Device Firmware Version Ver 0.5 Device Serial Number...

  • Page 26: Image Format Control

    IC-X12S-CXP 5.3.2 Image Format Control User Level: Guru Polling Feature Name Value Image Format Control Width Max 4096 Height Max 3072 Offset X Offset Y Width 4096 Height 3072 Reverse X Reverse Y Pixel Format Mono8 Test Pattern PRNU Correction Dfective Pixel Correction Feature Properties: Feature Name...

  • Page 27: Acquisition Control

    IC-X12S-CXP 5.3.3 Acquisition Control User Level: Beginner Polling Feature Name Value DeviceControl ImageFormatControl AcquisitionControl AcquisitionMode Continuous Acquisition Start Execute() Acquisition Stop Execute() Trigger Mode Trigger Source Internal Trigger Activation RisingEdge Exposure Mode Timed Exposure Time 5000 Exposure Time Max @ Current Frame Rate 5443 Acquisition Frame Rate 181.660...

  • Page 28: Digital Io Control/Analog Confrol/Fan Control/User Set Control

    IC-X12S-CXP 5.3.4 Digital IO Control / Analog Control / Fan Control / User Set Control User Level: Polling Beginner Feature Name Value DeviceControl ImageFormatControl AcquisitionControl Digital IO Control Line Inverter Line Source StrobeOut Strobe Out Delay Analog Control Analog Gain Digital Gain 1.000 Total Gain(Ratio)

  • Page 29: User Set Register/Transport Layer Control/Coaxpress

    IC-X12S-CXP 5.3.5 User Set Register / Transport Layer Control / CoaXPress User Level: Polling Beginner Feature Name Value DeviceControl ImageFormatControl AcquisitionControl Digital IO Control Analog Control Fan Control User Set Control User Register User Register 1 User Register 2 User Register 3 User Register 4 Transport Layer Control Payload Size...

  • Page 30: Calibration

    IC-X12S-CXP 5.3.6 Calibration Polling User Level: Beginner Feature Name Value Calibration RAW Image Average 0.000 PRNU Correction Defective Pixel Correction Display Selector Calibration Command Result 1-1. Capture & Generate PRNU Corr Data Execute() 1-2. PRNU Corr Ref Img Average 1-3. PRNU Corr Formula Ave 1-4.

  • Page 31: Point Defective Pixel

    IC-X12S-CXP 5.3.7 Point Defective Pixel Polling User Level: Guru Feature Name Value DeviceControl ImageFormatControl AcquisitionControl Digital IO Control Analog Control Fan Control User Set Control User Register Transport Layer Control CoaXPress Calibration Point Defective Pixel Point X Point Y Set Defective Pixel Execute() Set Normal Pixel Execute()

  • Page 32: Communication / Command Codes

    IC-X12S-CXP 6. Communication / Command Code Bootstrap 0x0000 - 0x5FFF: Please refer to ‘CoaXPress Standard’ . Length Default Address Name Access Access (Bytes) Value 0x6000 Offset X Set ROI X Offset 0 - 3584 (step: 32) Offset Y 0x6004 Set ROI Y Offset 0 - 3070 (step: 2) 0x6008 Width Set ROI Width: 512 - 4096 (step: 32)
  • Page 33 IC-X12S-CXP Length Default Address Name Access Access Value (Bytes) 0x6050 Acquisition Start 1: Acquisition Start 0x6054 Acquisition Stop 1: Acuisition Stop 0x6034 Exposure Time Max Possible Maximum Exposure time of 5443 current Acquisition Frame Rate. (unit: µs) 1 - 10000000 (unit: µs) 0x603C Exposure Time 5000...
  • Page 34 IC-X12S-CXP Length Default Address Name Access Access Value (Bytes) 0x800C User Set Current 0 : Factory 1 : User Set 1 2 : User Set 2 User Register 1 0x8060 User Register 2 0x8068 User Register 3 0x8070 User Register 4 0x8078 Device Temperature Device Temperature (unit:...
  • Page 35 IC-X12S-CXP Length Default Address Name Access Access (Bytes) Value 0x88F0 5.2. Calibration Set Save 4[31] 1 : Calibration Set Save 4[30] 5.2. Calibration Set Load 1 : Calibration Set Load 4[27:24] Always 0 5.1. Calibration Set Selector 0 : Factory 4[23:20) 1 : User 1 2 : User 2...
  • Page 36 IC-X12S-CXP High-Speed High-Resolution Camera Technology...
  • Page 37 High-Speed High-Resolution Camera Technology Camera Technology I S V I K O R E A ISVI CORP. HEADQUARTERS I S V I E M E A + 8 2 . 3 1 . 4 2 7 . 3 2 4 3 3 M o r s e R d , 2 A , O x f o r d , C T 0 6 4 7 8 U S A + 4 9 .
