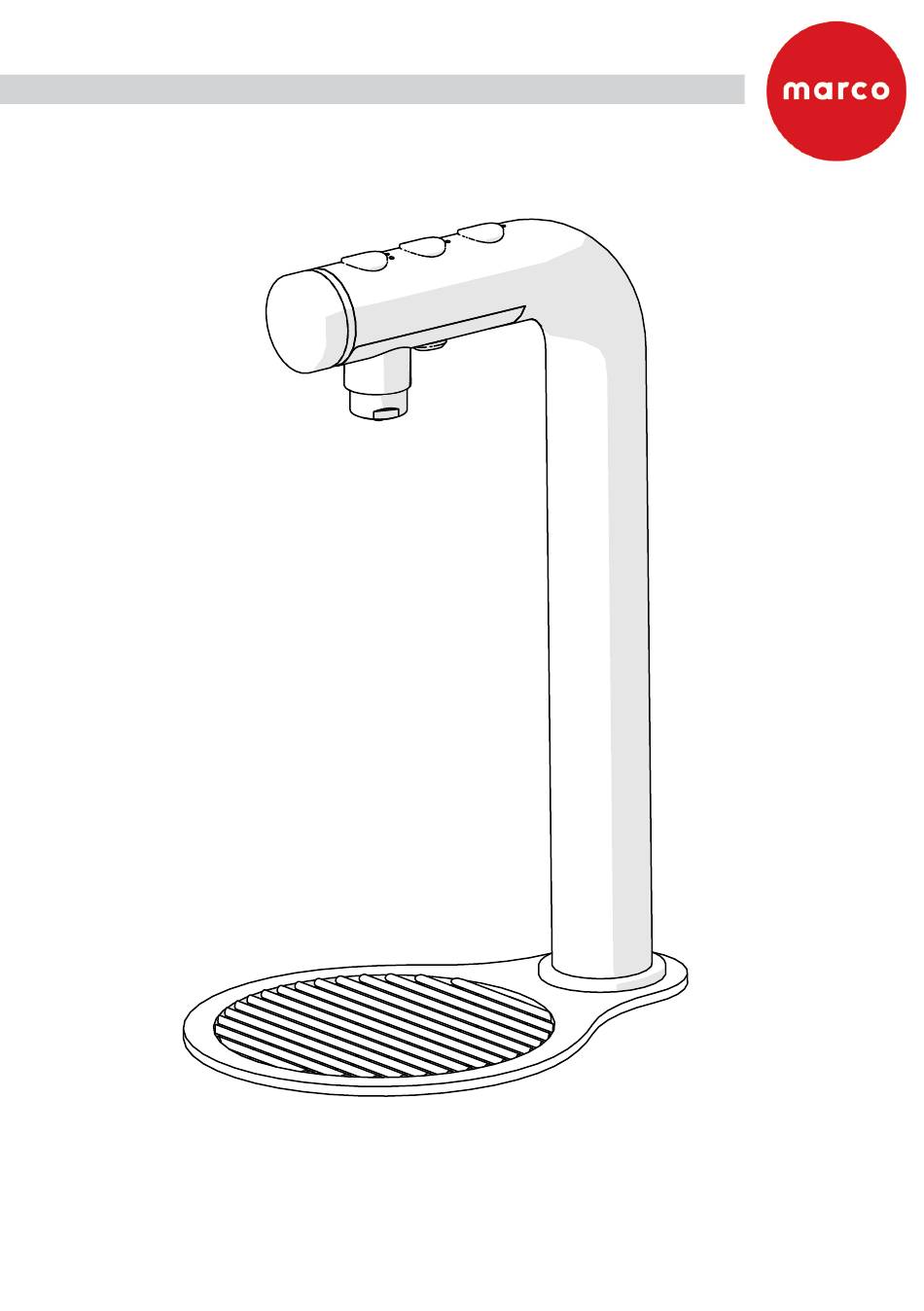

- Page 1 MIX / POUR’D Instruction Manual: 1900105 Machine P/N: 1000943 , 1000879#, 1000879FB 1000941 & 1000942...
-
Page 2: Table Of Contents
5. Cleaning & Maintenance..................10 Font Box Contents 3 & 1 Button Models 3B Concentrate 1000942 • 3 /1 button MIX Font 1000879 / 1000878 • 3B POUR’D concentrate Font • Vent Hosing 1860388 • 8mm Water Hose 2301250 • 8mm Water Hose 1860387 •... -
Page 3: Counter Cut-Out
Counter Cut Out 32mm Scale 1:1 / 1 ¼” 100mm / 4” For drip tray only... -
Page 4: Installation
Installation 1. No Drip Tray 32mm / 1 ¼” Hosing should be trimmed to ensure continuous drop from font to boiler 50mm... -
Page 5: Drip Tray
Installation 2. Drip Tray (sold seperately p/n. 2300268) 32mm/ 1 ¼” 100mm/ 4” The drain outlet on the drip tray should be plumbed to waste. Hosing should be trimmed to ensure continuous drop from font to boiler 50mm... -
Page 6: Connecting Hoses Mix
Connecting Hoses MIX 3 Button Font Connections Cold Water Power Hot Water Vent MIX programmable buttons... -
Page 7: Operating Font
Operating Font 1. Push & Hold 2. Push & Release... - Page 8 POUR’D HOT/COLD WATER, DILUTED CONCENTRATE & CONCENTRATE SHOT 3 button connections (1000942 3b concentrate) (Plummed to mains (If using chiller go to page 7 of Control box manual) Hot water from Cold water hard 1/4” tube boiler 8mm tube Beverage tube control box to font Din connector to font hard 1/4”...
- Page 9 Control box setup 3 finger press short hold MODE COLD % CONCENTRATE (0% = just 000% 020% water, 20%=4:1) 200ml P&H 30ml DISPENSE VOLUME (P&H = push and hold) Next MODE DESCRIPTION Hot Water (set ratio to 0% ) COLD Cold / ambient water mixed with concentrate (set ratio to 0% for just cold water) Ready to drink, undiluted concentrate...
- Page 10 User Setup Programmable buttons Program and change buttons accordingly Calibrate conc pump Calibrate Cold water Calibrate Hot water RTD speed Next 3 finger press long hold OPTION DESCRIPTION Calibrate conc pump Will pump concentrate using FAST speed for 10 seconds and ask for weight to be entered –...
-
Page 11: Cleaning & Maintenance
Operating Font 2. Push & Release 1. Push & Hold Cleaning & Maintenance RISK OF SCALDING Turn off the boiler before cleaning to prevent accidental triggering of a dispense. Beware of accidentally operating the font – especially when cleaning around the push buttons. - Page 12 Marco Beverage Systems Limited. 63d Heather Road, Sandyford Industrial Estate, Dublin 18 t: +353 (0)1 295 2674 f: +353 (0)1 295 3715 e: sales@marco.ie www.marcobeveragesystems.com NSF/ANSI 4 E337347...
