FRS23X3AQ0
FRS23X3A
FRS23X3AW0
FRS23X3A
North America
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
R134a
bisque
R134a
white
Publication No.
5995351300
010319
-EN/SERVICE/KHB
357
115
115
©2001 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS23X3A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS23X3A

Summary of Contents for Frigidaire FRS23X3A

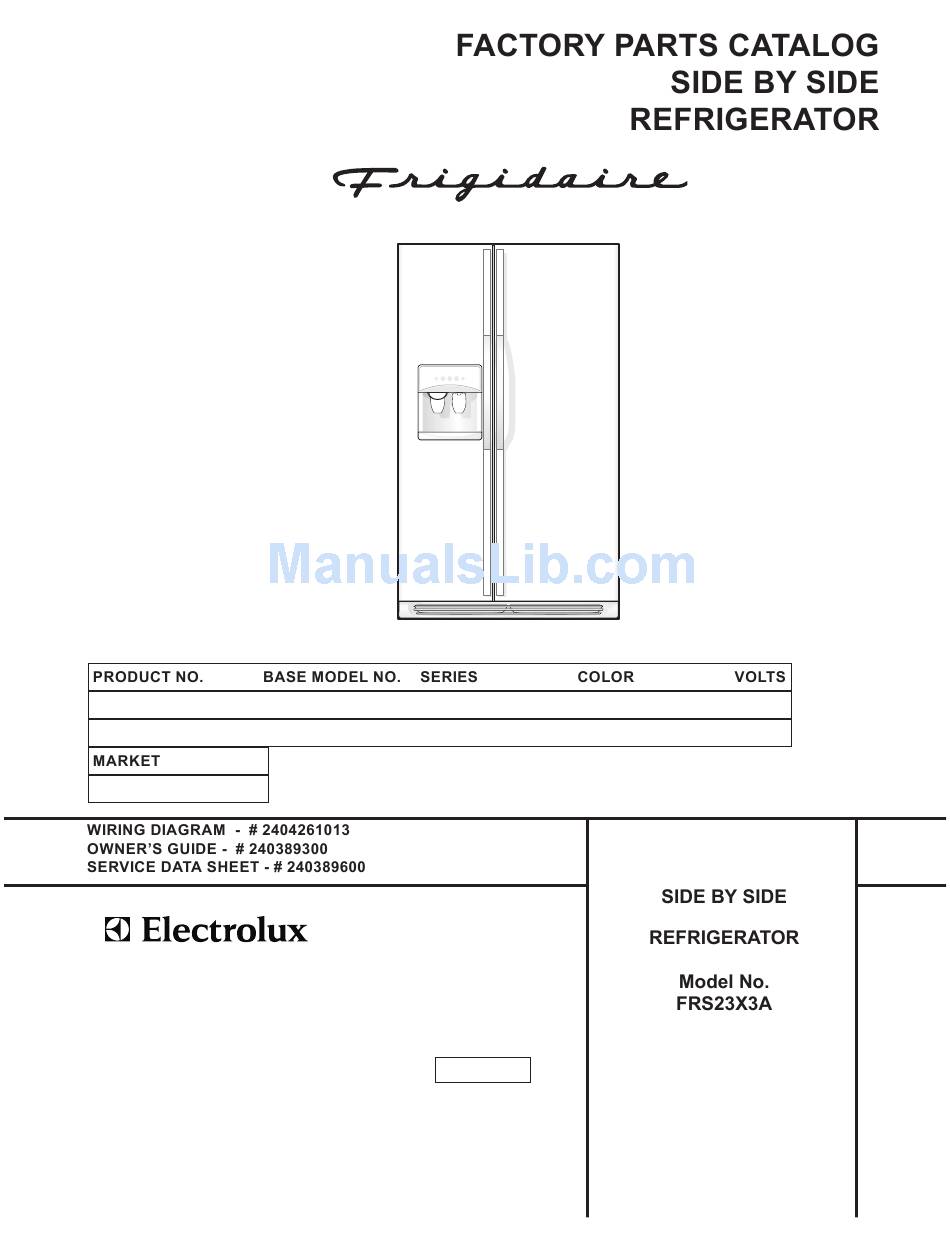

  • Page 1 FRS23X3AQ0 FRS23X3A FRS23X3AW0 FRS23X3A North America ELECTROLUX HOME PRODUCTS NORTH AMERICA P.O. BOX 212378, Augusta, GA 30917 R134a bisque R134a white Publication No. 5995351300 010319 -EN/SERVICE/KHB ©2001 White Consolidated Industries, Inc. All rights reserved...

  • Page 2: Freezer Door

    Publication No. FRS23X3A 5995351300 FREEZER DOOR 03/01...
  • Page 3 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A FREEZER DOOR 240390604 Gasket-door,white 240367301 Bin-door,frzr-upper 240359001 Bin-door 240451822 Panel-frzr door,bisque ,complete assy. 240451818 Panel-frzr door,white ,complete assy. 240326002 Door Stop,white ,frzr 218915704...

  • Page 4: Refrigerator Door

    Publication No. FRS23X3A 5995351300 REFRIGERATOR DOOR 03/01...
  • Page 5 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A REFRIGERATOR DOOR 240390603 Gasket-refr door,white ,magnetic 240363701 Bin-door,2-liter 240338303 Door-dairy 240326001 Door Stop,white ,ref 218915704 Plug-button,bisque 218915701 Plug-button,white 240451915 Panel-refr door,bisque ,complete assy.
  • Page 6 Publication No. FRS23X3A 5995351300 CABINET 03/01...
  • Page 7 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) 14 # 14A# 100* # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A CABINET 240317001 Cover-air duct 240316401 Cover-evap coil,lower 5303208309 Plug-hole,factory test 240413601 Switch-light/lamp 215486600 Switch-light/lamp 218252200 Screw,#8 truss hd ,10-32CA x 0.500...
  • Page 8 Publication No. FRS23X3A 5995351300 SHELVES 03/01...
  • Page 9 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A SHELVES 240434601 Trim-basket 240338801 Shelf-freezer,flip-up 240338701 Shelf-freezer,fixed wire 240338703 Shelf-freezer,fixed wire 240373107 Frame-refr shelf,cantilever 240354501 Cover-crisper pan,upper 240362101 Clip-slide,cover-crisper 240354601 Cover-crisper pan,lower 240354706...
  • Page 10 Publication No. FRS23X3A 5995351300 CONTROLS 03/01...
  • Page 11 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) 13 # 23 # 115* 137# # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A CONTROLS 5308000010 Fan Blade,red ,evaporator fan 5300157666 Bushing-motor mtg,(2) 5303292396 Bracket-motor mtg,front 240315801 Motor-evap fan 215474201 Washer,"slinger" ,nylon ,evap fan shaft...
  • Page 12 Publication No. FRS23X3A 5995351300 SYSTEM 03/01...
  • Page 13 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) 14 # 15 # 29 # 30 # 55 # 60 # 61 # # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A SYSTEM 240333602 Condenser 240409301 Spacer-cond tube,black 218679606 Block-evap coil,styrofoam ,(2)
  • Page 14 Publication No. FRS23X3A 5995351300 DISPENSER 03/01...
  • Page 15 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) 38A# # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A DISPENSER 218976405 Tube-water inlet,tank to door 218976906 Tube-water inlet,valve to tank 218976904 Tube-water inlet,valve to filter 218976907 Tube-water inlet,valve to door 5304421848...

  • Page 16: Ice Container

    Publication No. FRS23X3A 5995351300 ICE CONTAINER 03/01...
  • Page 17 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) 18 # 45 # # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A ICE CONTAINER 5304404344 Auger-ice 5304404343 Cam-drive 218815300 Container-ice,bucket only 5304404346 Drum-ice disp 218815400 Front-ice container 5304404337 Bar-drive 5304404359 Gate...

  • Page 18: Ice Maker

    Publication No. FRS23X3A 5995351300 ICE MAKER 03/01...
  • Page 19 A = FRS23X3A (FRS23X3AQ0) B = FRS23X3A (FRS23X3AW0) 11 # 12 # 13 # 15 # 17 # 55 # # = Fast-moving Parts * = Non-Illustrated Parts FRS23X3A ICE MAKER 218976901 Tube-water inlet,inlet valve to ice maker 218976904 Tube-water inlet,valve to filter...

  • Page 20: Wiring Schematic

    Publication No. FRS23X3A 5995351300 WIRING SCHEMATIC 03/01...

  • Page 21: Wiring Diagram

    FRS23X3A Publication No. 5995351300 WIRING DIAGRAM # = Fast-moving Parts 03/01 * = Non-Illustrated Parts...
