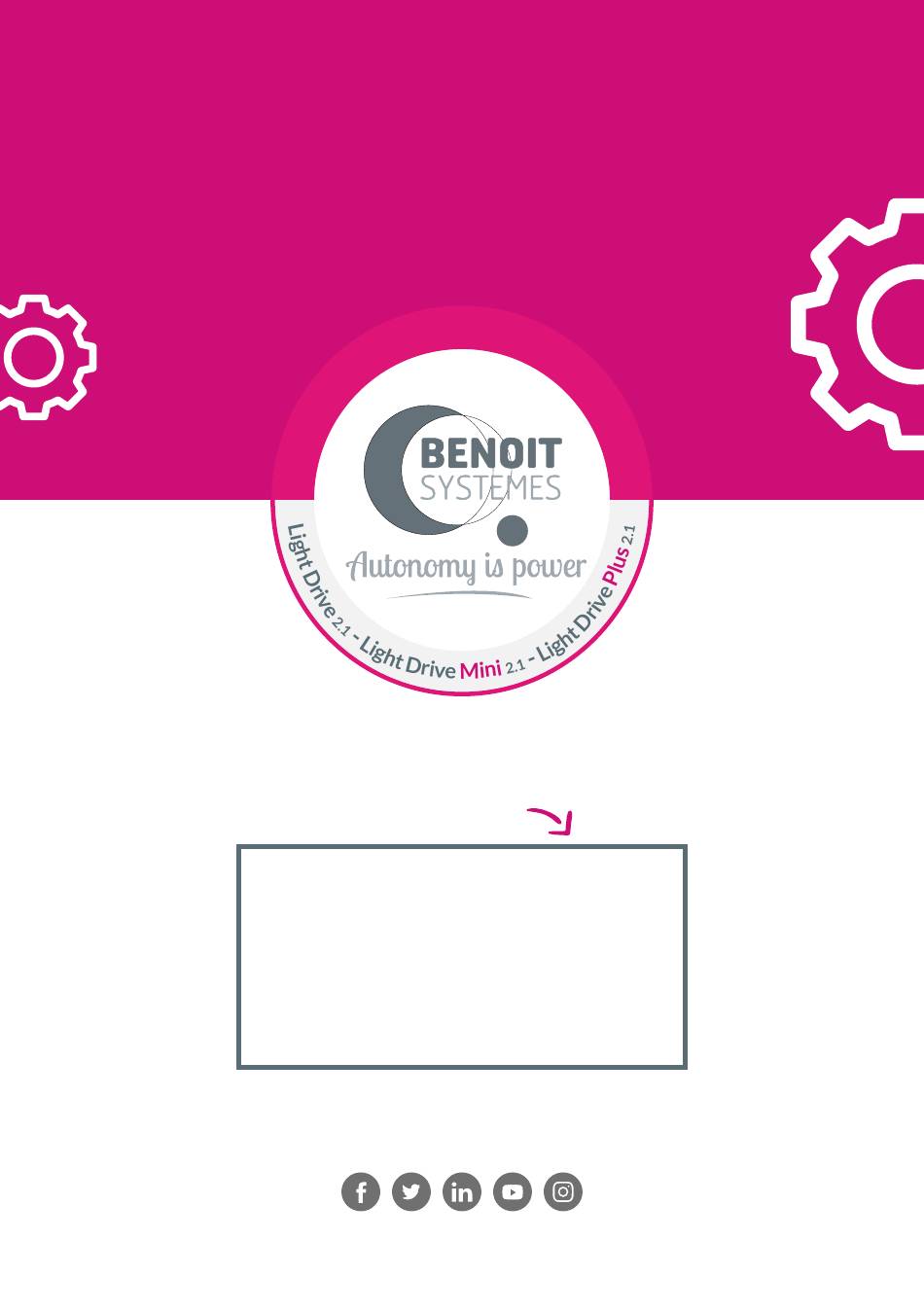

SERVICING & MAINTENANCE MANUAL
LIGHT drive
- LIGHT drive Mini
- LIGHT drive plus
2.1
2.1
2.1
Read this manual BEFORE using this product
and keep it for future reference
Edition - July 2020
STAMP AND SIGNATURE
OF DEALER
7 Rue du Pont, 21450 Billy Les Chanceaux FRANCE | (+33) 3 80 96 51 25 | export@benoitsystemes.com
WWW.BENOITSYSTEMES.COM
Advertisement
Table of Contents
Related Manuals for BENOIT SYSTEMS Light Drive 2.1
Summary of Contents for BENOIT SYSTEMS Light Drive 2.1
- Page 1 SERVICING & MAINTENANCE MANUAL LIGHT drive - LIGHT drive Mini - LIGHT drive plus Read this manual BEFORE using this product and keep it for future reference Edition - July 2020 STAMP AND SIGNATURE OF DEALER 7 Rue du Pont, 21450 Billy Les Chanceaux FRANCE | (+33) 3 80 96 51 25 | export@benoitsystemes.com WWW.BENOITSYSTEMES.COM...
- Page 2 GENERAL REMARKS INTENDED USE Combining precision, ease-of-use and safety, Light Drive is a lightweight power add-on that transforms a manual wheelchair into an electric wheelchair, making it easier to move about in everyday life. It is designed for anyone whose ability to walk has been impaired, but who, having good eyesight and being physically and mentally sound, is able to drive a motorised vehicle.
- Page 3 SYMBOLS USED IN THIS MANUAL In this manual, hazard statements are indicated by symbols. These symbols are accompanied by a warning indicating the risk level. WARNING Indicates a dangerous situation that, if not avoided, is likely to cause severe or even fatal injuries. CAUTION Indicates a hazardous situation that, if not avoided, is likely to cause in minor or slight injuries.
-
Page 4: Table Of Contents
Contents SPECIFICATIONS OF THE LIGHT DRIVE ...........5 General assembly view of the power unit ................5 Technical specifications ......................5 Components ..........................5 DRIVING PRACTICES .................7 SERVICING AND MAINTENANCE ..............8 Servicing the equipment ......................8 Performance checks ........................8 Waste management ........................9 Troubleshooting ........................10 TRANSPORT AND STORAGE ..............12 SAFETY AND HAZARD INSTRUCTIONS ............13... -
Page 5: Specifications Of The Light Drive 2.1
** A compatibility guide is available to know the wheelchair models on which the Light Drive 2.1 can be installed, in compliance with the general safety and performance requirements set out in European Regulation 2017/745 on medical devices. - Page 6 ELECTRICITY SUPPLY Comprising a 12 Ah LITHIUM BATTERY mounted on a support rack that enables installation and automatic connection to the motor tube. The power add-on is supplied charged. Lithium battery 12 Ah, 297 Wh * Battery life can vary depending on the temperature, the person’s weight and Weight 3.85 kg the type of ground.
-
Page 7: Driving Practices
DRIVING PRACTICES Before making your first journey, you should fa- • You are seated so as to have access to all the miliarise yourself with operation of the electric controls. vehicle and all the accessories. Take your time to • The battery is sufficiently charged for the test all the functions and driving modes. -
Page 8: Servicing And Maintenance
Disengage the power unit in a single movement and so restore conventional Disengage the left handle and bring it slightly forward. use of the wheelchair Disengage and bring the right handle against the seat back. SERVICING AND MAINTENANCE FOR OPTIMUM USE OF THE PRODUCT, find our explanatory videos on The Benoit Systemes YouTube channel CAUTION... -
Page 9: Waste Management
• Repeat the test a further three times, pushing the joystick gently back, left and right. • Activate all the electrical options, including the audible warning, to confirm they are working correctly. • Use the vehicle in all driving modes to confirm that it operates as before. CAUTION If in doubt about the performance of your vehicle, contact your approved dealer. -
Page 10: Troubleshooting
TROUBLESHOOTING The joystick dashboard is not lit or flashes Possible causes Solutions Battery incorrectly locked in place Remove the battery slightly and re-engage it Joystick wire poorly connected Check the connection Problem with the red connectors Check the connectors are in good condition and the contacts are in the correct position Battery fault Contact the dealer... - Page 11 JOYSTICK FAULT CODE INDICATOR SMALL JOYSTICK FAULT CODE to diagnose the fault, 2 times Left motor faulty look HERE 3 times Problem in left motor wiring 4 times Right motor faulty 5 times Problem in right motor wiring 7 times Possible joystick problem 8 times Possible problem in control system...
-
Page 12: Transport And Storage
TRANSPORT AND STORAGE TRANSPORT greater temperature ranges, described below: The range of temperatures permitted By air for storing the motorised vehicle is between The 12 Ah Lithium battery meets the requirements –40°C and +50°C. of the current IATA regulations. If you have to The range of temperatures permitted travel by air, ensure you contact the airline. -
Page 13: Safety And Hazard Instructions
SAFETY AND HAZARD INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS WARNING Risk of damage or injury if the electric vehicle is WARNING started unintentionally. Risk of damage to the equipment or serious, even • Do NOT sit on the electric vehicle during the fatal, injury if the control unit is used incorrectly. -
Page 14: Safety Information About The Electrical System
humidity. designed. • Never store your electric vehicle outdoors. • If the vehicle begins to emit smoke, sparks or heat, stop using it and have it checked CAUTION IMMEDIATELY. WARNING Risk of injury if the maximum permitted load is exceeded Risk of injury or damage associated with short- •... -
Page 15: Safety Recommendations About Electromagnetic Compatibility
SAFETY INFORMATION ABOUT INSTALLATION for the red POSITIVE (+) cable from the battery and the fitting screw. WARNING CAUTION Risk of damage to the equipment or serious, even Risk of damage to the motorised vehicle fatal, injury. A fault in the electrical system can cause unusual Prolonged use of an electric vehicle with settings behaviour. -
Page 16: Safety Information About Servicing And Maintenance
SAFETY INFORMATION ABOUT DRIVING the maximum obstacle height (refer to the Technical Specifications section). • Never try to go down a series of steps with DANGER your motorised vehicle. Risk of damage to the equipment or serious, even • Avoid making sudden movements of the fatal, injury. -
Page 17: Safety Information About Using The Battery And Charger
SAFETY INFORMATION ABOUT MODIFICATIONS supplied by Benoit Systemes. MADE TO THE EQUIPMENT WARNING Risk of explosion and destruction of batteries if WARNING the wrong charger is used. Risk of damage to the equipment or serious injury • Only use the charger supplied by Benoit Using or replacing (maintenance) unsuitable parts Systemes. -
Page 18: Important Information About The Maintenance Tools
charger. CAUTION • Unplug the charger when charging is completed. • Under weather conditions at –25°C, the battery indicator light can fluctuate in value WARNING but stabilises after 2 to 3 minutes. • Risk of electrical discharge and damage to the •... - Page 19 user is located. IN FRANCE • Manufacturer : Benoit Systèmes, 7 rue du Pont 21450 BILLY LES CHANCEAUX • Competent authority : ANSM, 143 Boulevard Anatole France 93 200 SAINT DENIS IN THE MEMBER STATES OF THE EUROPEAN UNION, PLEASE INFORM : •...
-
Page 20: Guarantee
GUARANTEE The guarantee period for the power add-on, battery and charger is 24 months from the invoice date. To claim against the guarantee, just make a note of the serial number of your equipment shown on the first page of this manual and contact your approved dealer. You can also find the serial number right under the power add-on, in the place where you slide the battery. - Page 21 MODEL LIGHT DRIVE SERIAL NUMBER Year Date Wheelchair ATTACHMENT Joystick controller bracket General installation check on the wheel- chair Tyres Tyre condition Pressure check (between 6 and 8 bar) Control unit (joystick/dual-attendant control) Check correct operation of each button Check of cable Battery Overall condition Condition of the connectors...
- Page 22 notes...
- Page 23 notes...
- Page 24 SERVICING & MAINTENANCE MANUAL VERSION 1 - 01/01/2021 PRE-DELIVERY CHECK 1ST ANNUAL INSPECTION Approved supplier’s stamp / Date / Signature Approved supplier’s stamp / Date / Signature 2ND ANNUAL INSPECTION 3RD ANNUAL INSPECTION Approved supplier’s stamp / Date / Signature Approved supplier’s stamp / Date / Signature 4TH ANNUAL INSPECTION 5TH ANNUAL INSPECTION...
