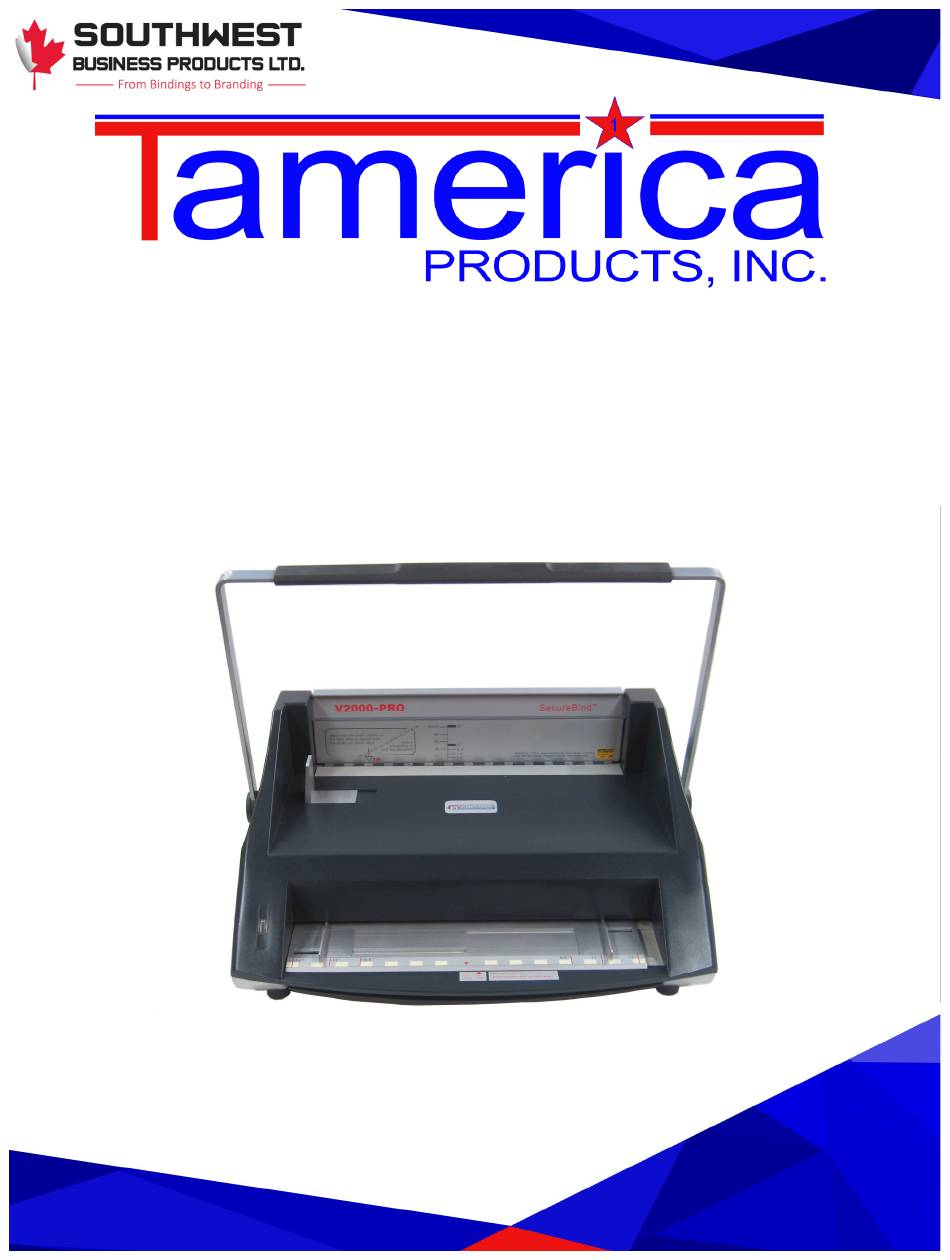

- Page 1 V2000-Pro 1” to 2” SecureBind™ Hot Knife System Operating Manual...
- Page 2 Handle Strip recess Feed tray Waste bin...
- Page 3 1. Raise the handle to starting position Slide the punch edge guide using the red arrow to Punching set it on “Letter” or “Legal”. 2. After adjusting the punch edge guide accordingly, insert the sheets to be punched. Note: When punching thicker and rigid materials such as vinyl, composition, pvc and polypropylene covers, punch only (1) sheet at a time.
- Page 4 Document Assembly Top strip Cover (face up) Document (Face up) End sheet Bottom strip (face down)
- Page 5 Feed Tray Adjustment Feed tray Maximum Punching Capacity: 20 sheets of 20 lb paper (75 gsm) Maximum Punching/ Binding Length: 14” (360 mm) When punching letter size documents, make sure that the center line using the red arrow on the feed tray is on “Letter”. When punching legal size documents slide the red arrow to “Legal”.
- Page 6 Binding 1. Place the bottom strip (textured side faced down) on the strip recess. Make sure that the locator hole is attached to the locating pin. Lay the sheets to be bound on top of the bottom strip. The correct size of top strip is determined by using the scale on the backstop to determine the thickness of the document to be bound.
- Page 7 Specifications 15-5/8” (397mm) 22” (555mm Punching Capacity: 14” (360mm) long X 1/8” (3mm) thick Binding Capacity: 14” (360mm) long X 2” (50mm) thick Power Supply: 110V (60Hz) Fuse: 10 amp / 220V (50Hz) Fuse: 5amp Machine Dimensions: Width: 22” (555mm) Depth: 15-5/8”...
- Page 8 10 business days of said purchase to avail of free pickup and redelivery from Tamerica’s Service Center. After the first 10 days, you will either receive service instructions and parts via mail free of charge for the duration of the warranty.
