Murraypro PICO Manual

Specification

INPUT:
Sensitivity
CMRR
Peak Leds Lit
Phase Leds Green
Red
OUTPUT Freq resp
Law
PHYSICAL Module
Depth
Ext magnetic field: will not trouble adjacent TV monitors.
WEIGHT
POWER Configured to run from 230v supplies
PICO requires approximately 2VA
Mains power is supplied via an IEC connector
110 v operation to special order.
Note: the figures in this specification are typical, and given for guidance only. They are not, however, guaranteed. If a particular parameter is of
special interest, Murraypro can provide Certification to Special Order.

DECLARATION OF CONFORMITY

Murraypro Electronics,
8, Glamorgan Road,
MURRAYPRO
XLR-3, Hi Z balanced, non-active looping.
0.775V RMS for deflection of "4" @ 1KHz
Covers operation -15 to +15dBU, nominal
40 dB nominal, minimum
+8.15dB +0.15dB, wrt PPM"4"
lit when M > S, ie in phase
lit when S +3dB > M, ie phase error
-0.1dB nominal, @ 10Hz - 30KHz
Conforms with BBC/EBU 4dB/division law
Front 160W x 44H
190mm
700 Grm
Hampton Wick,
Surrey
Pico
Program Meter
conforms with the following EC Directive:-
89/336/EEC for EMC
73/23/EEC for LVD
EN550081-1 Part 1 Emissions,
EN550082-1 Part 1 Immunity,
EN60950 1992 Electrical Safety
Signed: A Drummond-Murray, Proprietor
Hampton Wick
Feb 2001
Murraypro
PPM MANUAL
Designed and manufactured in the UK by Murraypro Electronics
Tel: (+44) 020 8943 1920
email: tech@murraypro.com
Cat 416: PICO Program Meter
Serial No:-......................................

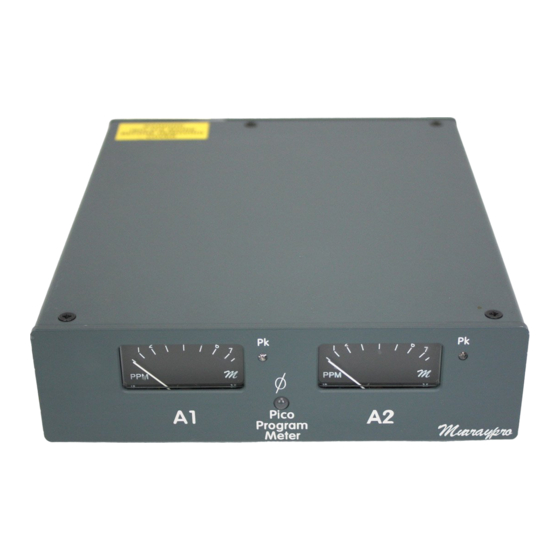

The MURRAYPRO PICO Program Meter provides high quality,
multi-function, dual channel audio monitoring facilities in a compact free standing
unit only 1U high.
Designed to be mounted close to the picture monitor for audio level
monitoring in non-linear Editing applications, PICO will also suit many other
applications where space is at a premium.
The self-contained PICO provides A1 & A2 Peak Programme Metering,
overload indication, stereo phase verification and audio presence confirmation
simultaneously, without cluttering the video display monitor in any way!
True PPM scaling together with the classic fast attack and slow decay
times are ensured by the high specification precision meter drive amplifier. The
miniature movements that are fitted in this 1 U height unit have a slightly relaxed
specification, but very closely emulate the full-sized BS 6840 meters. Internal, ultra
bright, LED illumination is provided to ensure full visibility under all operational
conditions.
