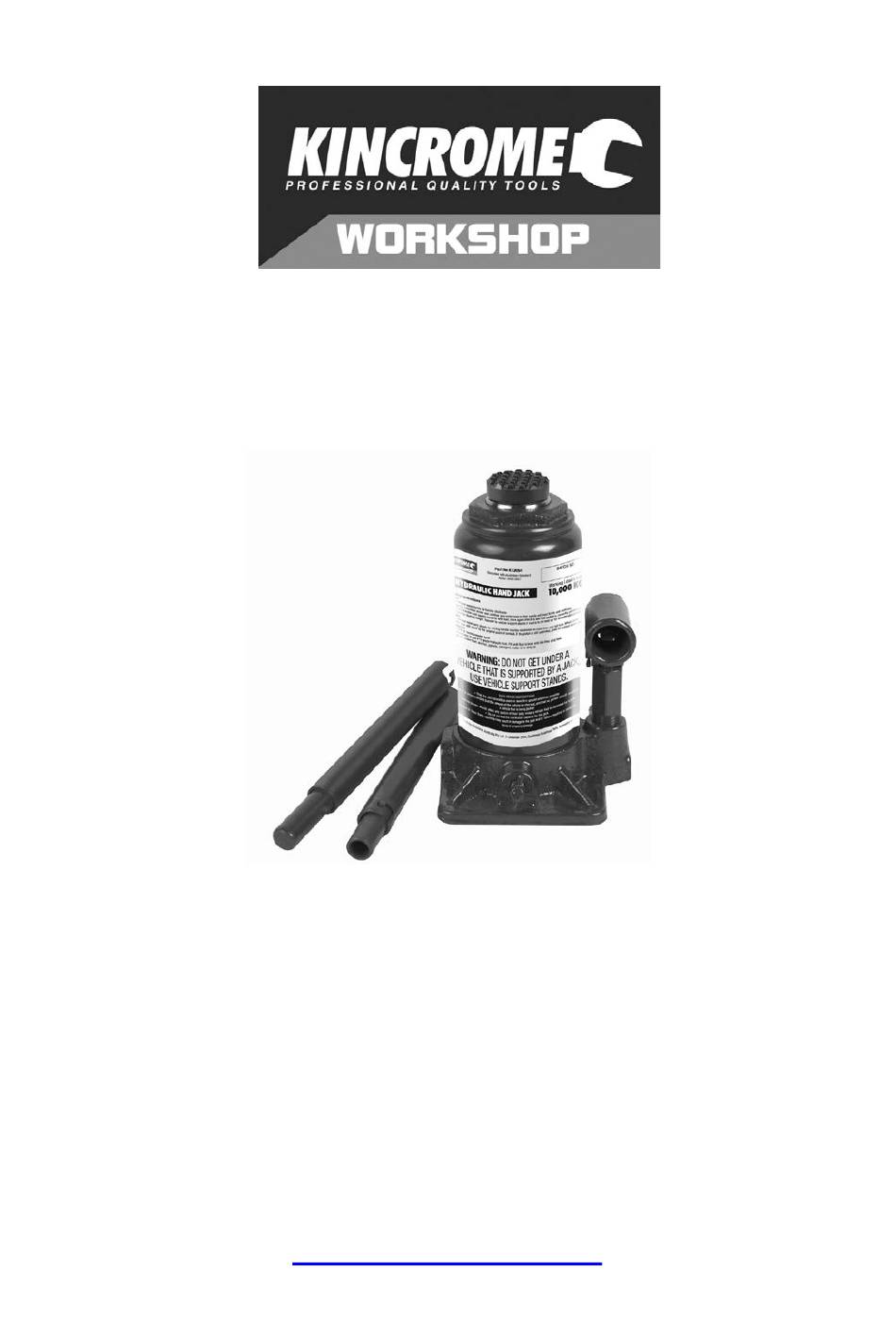

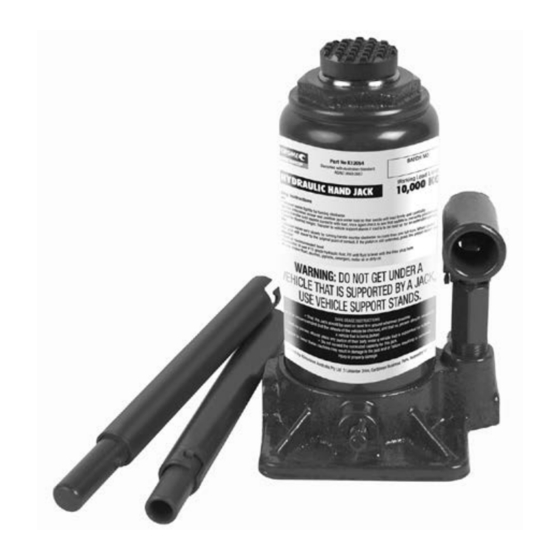

- Page 1 HYDRAULIC BOTTLE JACK K12054 Distributed by Kincrome Tools and Equipment www.kincrome.com.au...
- Page 2 Replacing Oil: ........................6 Cleaning ..........................6 Storage ..........................6 Repairing Jack ........................6 SPECIFICATIONS Working Load Limit 10000 KG Height Lowered 225 mm Height Raised 445 mm Handle Length 690 mm Head Cap Diameter 42 mm Total Weight: 8.00KG Part Number K12054...
- Page 3 IMPORTANT SAFETY INFORMATION The use of a vehicle jack has inherent dangers to avoid risk of personal injury or property damage make sure you are fully aware of the operating instructions for this product, the recommendations in the vehicle owners manual for jacking of your vehicle prior to lifting the vehicle.
- Page 4 OPERATING JACK Preparing Work Area Before using jack to lift vehicle, it is important to prepare work area properly. Follow this procedure each time the jack is used to help prevent property damage and or serious injury. 1.) Thoroughly inspect jack for damage or wear before each use. Briefly test operation of unloaded jack before using to lift any load.
- Page 5 Lifting Vehicle Lifting a vehicle using a jack can be dangerous. Follow all instructions and precautions below. Do not lift any vehicle with its engine running or start any vehicle that is supported by jack or jack stands. 1.) With lifting arm completely lowered, roll jack into position beneath jack support area of vehicle. DO NOT MANOEUVRE JACK WITH HANDLE ON THE RELEASE VALVE 2.) Twist jack handle completely clockwise on the release valve.
- Page 6 MAINTENANCE AND STORAGE Lubricating Moving parts on jack should be lubricated occasionally with a light machine oil to maintain efficient operation. Apply oil to joints on lift arm hinges, push rods, handle base, etc. Wipe away excess oil with soft cloth. Maintaining Oil Level Important Note: When adding or replacing oil, always use a good grade Hydraulic Jack Oil, SAE 10 Hydraulic oil is...
- Page 7 Warranty given by Kincrome Australia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria (Tel 1300 657 528). If this product has materials or workmanship defects (other than defects caused by abnormal or non warranted use) you can , at your cost, send the product to place of purchase, an authorized Kincrome service agent or one of Kincrome’s addresses for repair or replacement.
