Facina VKFCEDVH User Manual

PRODUCT FEATURES

Sensor C CD
* * * * ( ( ( ( ) ) ) )
COLOUR 1/4 CCD sensor.
"
Auto Gain Control (AGC)
* * * *
Built-in auto gain control (AGC) circuit. The colour cam-
era can achieve high quality images in low Lux conditions
Auto Electronic Shutter (AES)
* * * *
Built-in auto electronic shutter function. The colour
camera's AES speed can reach 1/100,000s.
Gamma Characteristic
* * * *
Camera Gamma characteristic is 0.45.
Scanning Mode
* * * *
NTSC or PAL mode.
Night-time Vision
* * * *
0 Lux with IR LED ON. High quality IR LED's provide
night-vision effect.
Notes ： ： ： ：
P lease ensure the correct specification power supply is used.
●
voltage, polarity and operating temperature match the camera's re-
quirement
.
L ightning protection is recommended for use with camera equipment. If
●
not installed, in electrical storms, camera equipment should be
disconnected.

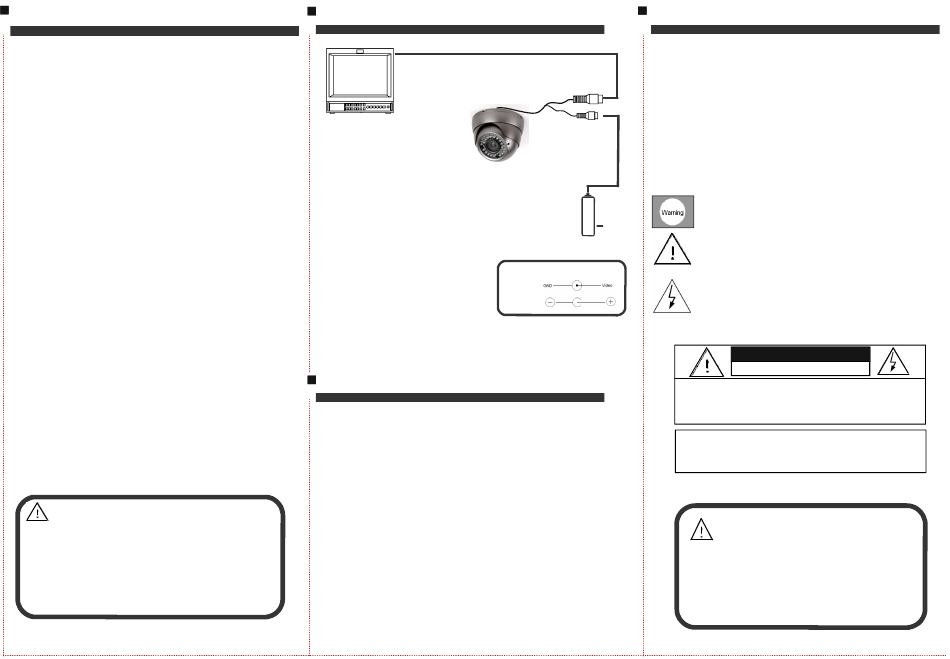

CONNECTIONS

Monitor

TROUBLE SHOOTING

1. No Picture after providing power
. May be the power supply. please check the power supply voltage and polar-
ity.
. Please check all the connecting cables to monitoring equipment, especially
the 'BNC' connectors
.
2. The picture shows 'rolling' interference ripples
. May be caused by induced AC voltage on to video cables. Check for AC
cables near video cables & move as necessary.
. Check the earth potentials at monitor and peripheral equipments positions.
Earth potentials should be the same at each position.
3. The picture background colour changes continuously
Check
. The fluorescent lamp's electromagnetic field causes colour roll. This is a
normal phenomenon of the camera.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps.
4. The picture 'smear's'
. The power supply's voltage unstable
. Cables not connected correctly or have high impedance.
Video
12V DC
VKFCEDVH
DC12V Power Supply
Cable Cores
：
Video
Power
.

INTRODUCTION

Congratulations on your purchase of this FACINA
product. This VKFCEDVH is a high quality day / night
camera with LED illumination, varifocal lens, & a sturdy
mounting bracket.
The camera can be used indoors or outdoors & can
be wall or ceiling mounted.
Please read this instruction manual carefully before
installation to ensure correct use of the product.
To prevent fire or shock hazarded. Do not immerse the unit
into water.
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
The symbol is intended to alert the user to the presence of
uninsulated 'dangerous voltage' within the product's
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
CAUTION:
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BANCK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
CAUTION:
To prevent electric shocks and risk of fire hazards,
do NOT use other than specified power source.
Note
: : : :
Please note the camera's operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -10
(Recommendatory operating temperature is -5
Never position the camera to face the sun or bright object. This
●
may damage the CCD
.
Do not mount the camera by a radiator or heater.
●
℃ - 50 ℃ .
- -40 . )
℃ ℃
