Facina VKFCE1 Quick Start Manual

PRODUCT FEATURES
* Sensor ( CCD )
COLOUR 1/3" High Resolution CCD sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The colour cam-
era can achieve high quality images in low Lux conditions
* Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The colour
camera's AES speed can reach 1/100,000s.
* Gamma Characteristic
Camera Gamma characteristic is 0.45.
* Scanning Mode
NTSC or PAL mode.
* Night-time Vision
0 Lux with IR LED ON. High quality IR LED's provide
night-vision effect.
Notes：
●Please ensure the correct specification power supply is used. Check
voltage, polarity and operating temperature match the camera's re-
quirement.
●Lightning protection is recommended for use with camera equipment.
If not installed, in electrical storms, camera equipment should be
disconnected.
●The BNC and Power Connections are not IP rated, please ensure that
these connections are suitably protected from water/moisture
ingress.

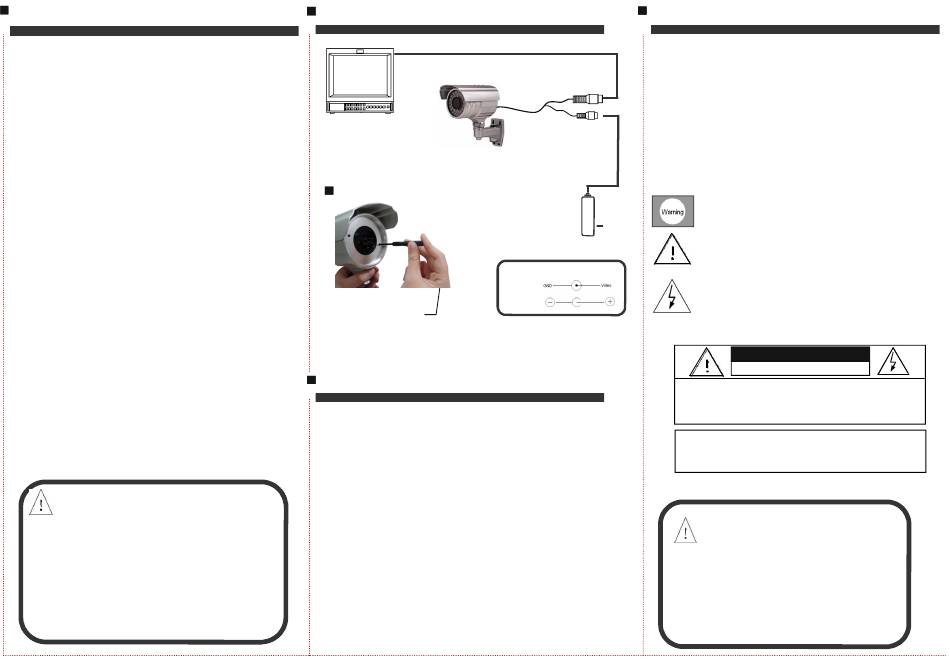

CONNECTIONS
Monitor
VKFCE1
Focus and Zoom
Screw Focus and Zoom
by Spanner.
Please tighten the cover
after focus and zoom to
prevent water ingress.
TROUBLE SHOOTING
1. No Picture after providing power
. May be the power supply. please check the power supply voltage and polar-
ity.
. Please check all the connecting cables to monitoring equipment, especially
the 'BNC' connectors.
2. The picture shows 'rolling' interference ripples
. May be caused by induced AC voltage on to video cables. Check for AC
cables near video cables & move as necessary.
. Check the earth potentials at monitor and peripheral equipments positions.
Earth potentials should be the same at each position.
3. The picture background colour changes continuously
. Fluorescent lamps or electromagnetic field can cause colour roll. This is a
normal phenomenon of the camera.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps or electromagnetic field.
4. The picture 'smear's'
. The power supply's voltage could be unstable.
. Cables not connected correctly or have high impedance.
INTRODUCTION

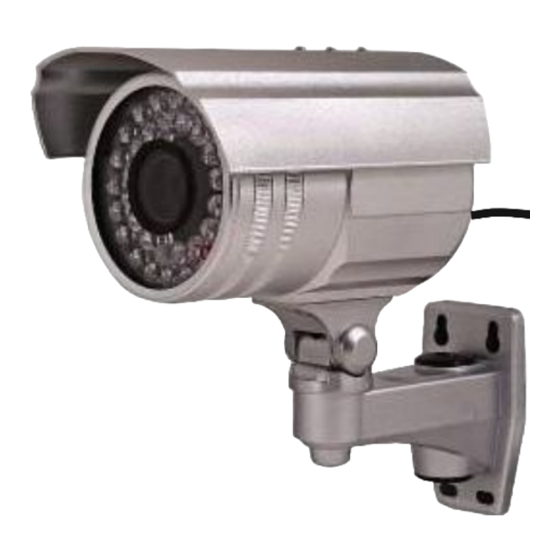

Congratulations on your purchase of this FACINA
product. This VKFCE1 is a high quality day / night camera
with LED illumination, varifocal lens, On Screen Display
programming & a sturdy cable managed mounting
Video
bracket.
The camera can be used indoors or outdoors & has a
removable sun shield.
12V DC
Please read this instruction manual carefully before
installation to ensure correct use of the product.
DC12V Power Supply
Cable Cores：
Video
Power
SHOCK
CAUTION:
● Please note the camera's operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -10℃-50℃.
(Recommendatory operating temperature is -5℃--40℃.)
● Never position the camera to face the sun or bright object. This
may damage the CCD.
● Do not mount the camera by a radiator or heater.
To prevent fire or shock hazarded. Do not immerse the unit
into water.
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
The symbol is intended to alert the user to the presence of
uninsulated 'dangerous voltage' within the product's
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock.
CAUTION:
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
DO NOT REMOVE COVER OR BACK. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
To prevent electric shocks and risk of fire hazards,
do NOT use other than specified power source.
Note:
