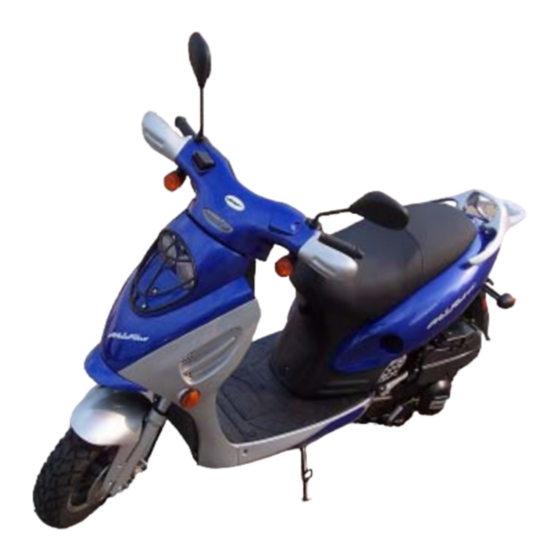

MotoFino MF50QT-7 Manual
  1. Manuals
  2. Brands
  3. MotoFino Manuals
  4. Scooter
  5. MF50QT-7
  6. Manual

MotoFino MF50QT-7 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MF50QT-7 / MF80QT-7 / MF110QT-7
www.motofino.com
Motofino USA, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MF50QT-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MotoFino MF50QT-7

Summary of Contents for MotoFino MF50QT-7

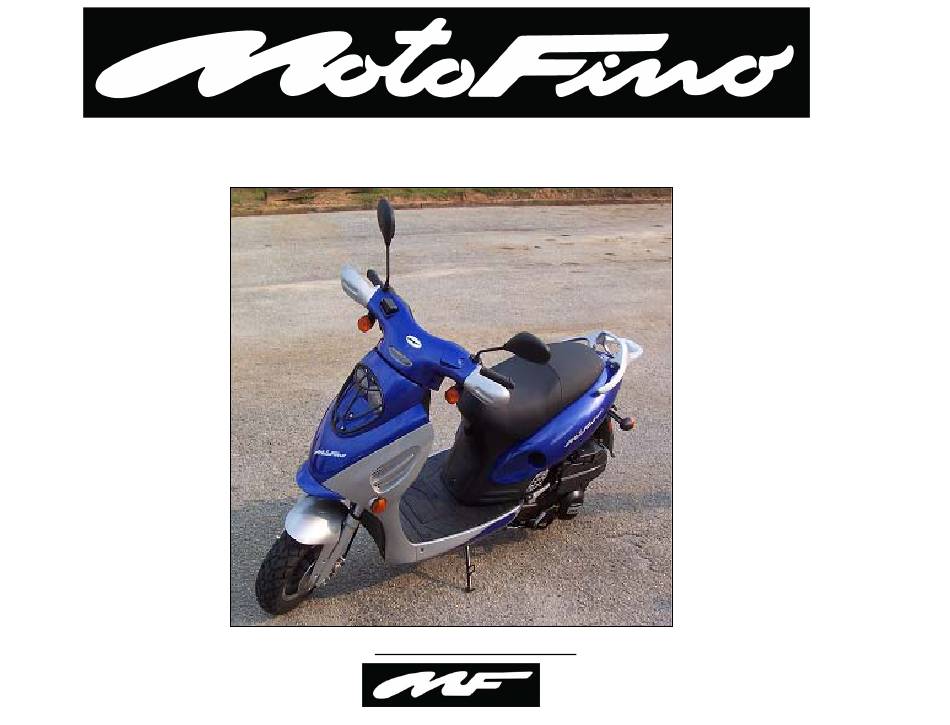

  • Page 1 MF50QT-7 / MF80QT-7 / MF110QT-7 www.motofino.com Motofino USA, Inc.
  • Page 2 D. HEADLIGHT SWITCH:----------------------------- C. PROPER BREAK IN AND RIDING TO E. DIMMER SWITCH: --------------------------------- LENGTHEN THE LIFE OF THE MOTORCYCLE:----------- F. HORN SWITCH BUTTON:------------------------------- D. DO NOT APPLY BRAKES AND G. TURN SIGNAL SWITCH:-------------------------------- MAKE SHARP TURNS:----------------------------------------------- Motofino USA, Inc.
  • Page 3 E. TURN SIGNAL LIGHT INSPECTION:-------------19 3.Recommended spark plug:----------------------------25 F.TIRE INSPECTION:--------------------------------------20 E.BATTERY AND ELECTROLYTE G. SHOCK ABSORBER INSPECTION:--------------- 20 INSPECTION:------------------------------------------26 H.HEADLIGHT AND TAIL LIGHT F.FUSE REPLACEMENT:------------------------------ 26 INSPECTION:-------------------------------------------- 20 VIII.WHEN ENGINE CAN NOT START:--------------- 26 I.HORN INSPECTION:------------------------------------20 J.INSPECT SPEEDOMETER:----------------------------21 Motofino USA, Inc.
  • Page 4 TABLE OF CONTENTS I. VARIOUS PART NAMES: TURN SIGNAL, HORN, AND HEADLIGHT SWITCHES HEADLIGHT AIR FILTER HELMET HOOK KICK STARTER BATTERY COMPARTMENT CENTER STAND Motofino USA, Inc.
  • Page 5 TABLE OF CONTENTS INSTRUMENT PANEL UNDER SEAT STORAGE FRONT BRAKE HANDLE TAIL LIGHT IGNITION TURN SIGNAL LIGHT MUFFLER KICK STAND Motofino USA, Inc.
  • Page 6 (ignition switch must be on) ● If the needle points at the red section, it that the remaining fuel is about 0.25 gallons. Fill with gasoline as soon as possible. (91 octane or above.) UNLEADED FUEL ONLY Motofino USA, Inc.
  • Page 7 ● Turning handle bars gently will facilitate unlocking also. 4. Unlocking under seat storage box ● Turn key far right to open position. HINT: ● Applying gentle pressure (up and down) to seat will facilitate opening. Motofino USA, Inc.
  • Page 8 ● Do not engage the starter for more than 4 seconds at a time. ● After engine starts, release the starter button at once. WARNING: ● When engine is in operation, do not press the starter button . Doing so will damage the electric starter. Motofino USA, Inc.

  • Page 9: D.headlight Switch

    2. Headlight switch has three positions to accommodate optional lighting features. Please take time to familiarize yourself ● When the high beam is on, indicator on with this switch. instrument panel will light. Motofino USA, Inc.
  • Page 10 Turning switch to the left will cause left signals to illuminate. 2.R. → Turning switch to the right will cause right signals to illuminate. *When signals are on, symbol on instrument panel will illuminate. 3. Press center (white) to cancel turn signals. Signals will not cancel automatically. Motofino USA, Inc.
  • Page 11 ● Applying gentle pressure (up and down) to seat will facilitate opening. NOTICE: Carrying capacity should not exceed 6 CAUTION: Interior of box can be very hot. DO NOT put flammable objects inside case. Storage box is not waterproof. Motofino USA, Inc.
  • Page 12 ● Turning handle bars gently will facilitate unlocking also. 1. Locking ● Turn handle bars to full left and turn key counter clock-wise to the lock position. 2. Unlocking: ● Turn the key clock-wise to unlock. Motofino USA, Inc.
  • Page 13 X and/or a line through it meaning off. ● If motorcycle has not been used for a long time it may be difficult to start, turn throttle grip 1/8-1/4 turn and start engine again. ● Warm up engine for 2-3 minutes before operation. Motofino USA, Inc.
  • Page 14 1/8-1/4 turn and start engine again. ● Warm up engine for 2-3 minutes before operation. ** Most models have a switch with a circle meaning on and a circle with an X and/or a line in it meaning off. Motofino USA, Inc.
  • Page 15 ●Speed is increased by rolling the throttle towards yourself. ●Release brake levers. ●Speed is decreased by rolling the throttle away from yourself. ●Add throttle slowly by twisting throttle grip towards you and then ●Always accelerate slowly. motorcycle will move forward. Motofino USA, Inc.
  • Page 16 ●Do not operate engine at high RPM while on center stand. ●Change engine oil after the first 250 miles and every 700 miles thereafter. ●We recommend Castrol 10W-40 synthetic blend oil. ●Use unleaded 91 octane or above gasoline. Motofino USA, Inc.

  • Page 17: Front Brake

    ●Increase braking distance and reduce speeds. ●Drive Cautiously. V. HOW TO STOP: ●Be aware of vehicles behind and in front of you. ●Never make sudden stops. ●Return throttle grip to idle position. ●Apply pressure on brake levers evenly. Motofino USA, Inc.
  • Page 18 ●To prevent stealing, lock the steering handle when parked and take out the keys. WARNING: ●Turn off main switch only when vehicle is not in use. ●Turning off switch will turn off all lights making it difficult to see. Motofino USA, Inc.

  • Page 19: Inspection Before Riding

    .25 gallons. WARNING: ●Keep gasoline level a full inch and 1/2 from the top of fuel tank when refilling. If gasoline is overfilled it is easy to splash outand leak out which can be dangerous. Motofino USA, Inc.
  • Page 20 ● If any abnormalities, take the scooter to the distributor The free play* is about 1/4 inches maximum. or service center for inspection and repair. *Free play means the distance between loose and tight positions of brake levers. Motofino USA, Inc.
  • Page 21 REMINDER: ●Ride motorcycle in a short distance at slow speeds to make New brake shoes are cheaper than accidents. sure all front and rear brake adjustments are suitable. Motofino USA, Inc.
  • Page 22 ●Turn main switch to "ON". ●Operate front and rear brakes one by one to made sure brake lights work. ●Clean brake and signal lights to make sure they can be seen well. ●Check for any damage to the lights. Motofino USA, Inc.
  • Page 23 Please check tire pressure recommendations on the tires. damage. For 1 person front wheel :30 PSI I. HORN INSPECTION: For 1 person rear wheel :32 PSI ●Turn main switch to "ON" and press down horn switch button to check if the horn sounds. Motofino USA, Inc.
  • Page 24 ●A full inspection as well as full maintanence must be done between 30 and 45 days or 250 miles after the initial purchase. (Break in period) *Failure to do so may void your warranty. Motofino USA, Inc.
  • Page 25 ●Install oil filter screen and drain plug. ●Fill with new oil 0.9 liter. Castrol Semisenthetic. Check with oil level gauge. (Do not screw in the dipstick) ●Tighten up dip stick. ●Start and warm engine for 2 - 3 minutes. Check pressure levels. Motofino USA, Inc.
  • Page 26 ●When refilling oil do not exceed the upper level on the dip stick. Doing so will damage seals. DRAIN FILL PLUG B. GEAR OIL CHANGE: ●Change gear oil at first 250 miles and each 3000 miles or every six months. ●Capacity of gear oil 110c.c. Motofino USA, Inc.
  • Page 27 ●Remove the tank cover and seal. brake fluid. In case of spills clean thoroughly and promptly. ●Fill with brake fluid a little above the "low" mark; then replace ●Constant loss of fluid should be checked by a trained professional. cover and screws. Motofino USA, Inc.
  • Page 28 ●Use of a wire brush is okay if no cleaner is available. Side Electrode 2.Adjustment: ●Normally electrode gap is 0.025- 0.030. (as shown.) Center Electrode (0.6~0.7)mm 3.Recommended spark plug: NGK-CR7HSA Sealing Washer ●If failing problems occur use NGK-CR6HSA. ●Do not use spark plugs not recommended or cross referenced. Motofino USA, Inc.
  • Page 29 ●Absolutely do not open the lid of battery. Doing so can cause wire melt down and fire. ●Battery may produce flammable gas. Take care of sparks or flames ●Use approved electrical parts from your Motofino distributor when changing or performing maintenance on batteries. or dealer.
  • Page 30 If you believe that your vehicle has a defect which could cause a wreck, injury, or death; you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to Motofino USA, Inc. If NHTSA receives similar complaints it may open an investigation. If it finds that a safety defect exists in a group of vehicles it may order a recall and remedy campaign.
